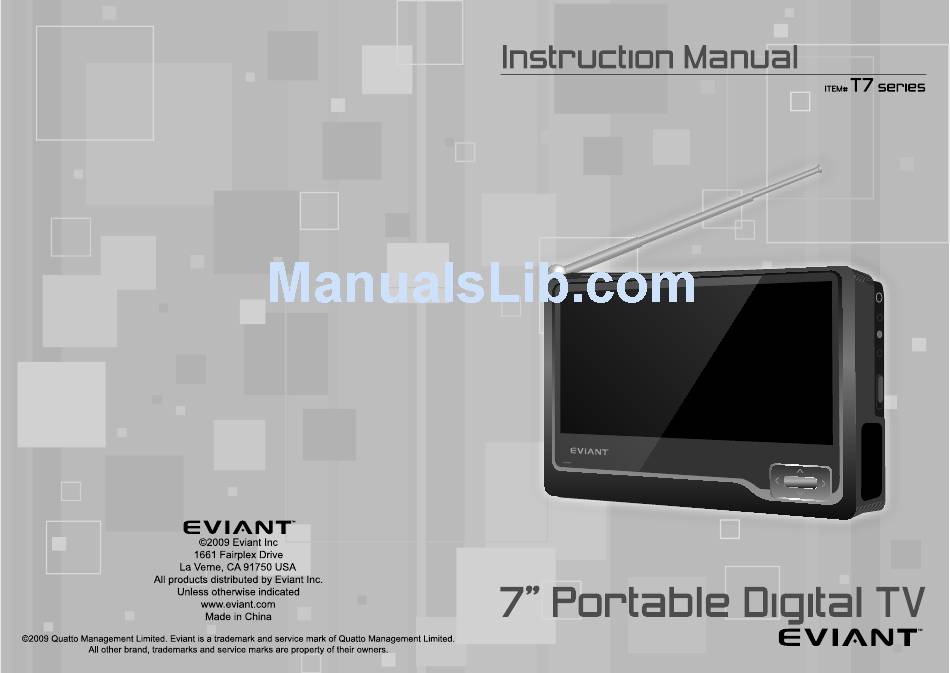

Eviant T7 series Instruction Manual

Eviant T7 series Instruction Manual

7" portable digital tv
Hide thumbs Also See for T7 series:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T7 series and is the answer not in the manual?

Questions and answers

Elaine
June 3, 2025

Where can I purchase a new remote?

User image 683f13490e3df

Subscribe to Our Youtube Channel

Summary of Contents for Eviant T7 series

  • Page 2: Introduction Important Safety Information

    Introduction Congratulations on purchasing your Eviant Portable Digital TV. On June 12, 2009 the conversion to digital television broadcasting will be complete all throughout the United States and Puerto Rico. Your portable digital television is designed to pick up both the older analog signals as well as the new digital signals.
  • Page 3 avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 4: Fcc Compliance

    FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5: Table Of Contents

    Table of Contents Introduction Important Safety Information ........1 FCC Compliance..........3 Accessories............3 Getting Started Controls..............5 Inputs & Outputs ..........5 Antenna..............6 Using AC Adaptor..........6 Using DC Adaptor ..........6 Remote Control ............7 External DVD or VCR Connection......8 Connecting to Earphones........8 Display Options & Channel Setup Picture Menu ............9 Audio Menu ............10 Time Menu ............10...
  • Page 6: Getting Started Controls

    Getting Started Controls LCD Screen Channel Up (Direction Up) Volume Down (Direction Left) Channel Down (Direction Down) Volume Up (Direction Right) Menu Remote Sensor Charge Indicator Inputs & Outputs Headphone Jack Audio Input Video Input 12v DC Power Jack Power On/Off Speaker Telescoping Antenna (Removable) Mounting Holes (Remote Bracket)
  • Page 7: Antenna

    For Cable TV, see page 13 for setting the antenna option to Cable. Your Eviant T7 is also supplied with an external antenna that can be located a short distance away from the TV to improve reception.
  • Page 8: Remote Control

    Getting Started Remote Control Power button 0-9 Number buttons Volume Down ◄ Return button (return to the last channel) Channel Down▼ Channel Up ▲ Character button (to connect the channel no. e.g.: 1-1) Volume Up ► Menu Mute Use direction buttons for menu navigation. Remote Control Bracket Install the bracket on the rear of the TV in the slots provided.
  • Page 9: External Dvd Or Vcr Connection

    Getting Started External DVD or VCR Connection You can also use the TV to display a program using a DVD player or VCR. Use the included AV cable and connect as shown. Pay careful attention to the color codes. Yellow is for the video signal. The Red and White plugs are for the audio right and left.
  • Page 10: Display Options & Channel Setup

    Display Options & Channel Setup Use the on-screen menus to adjust the picture, audio, channels and other functions. Navigate the menus with the navigation buttons on the front of the TV or the Remote Control. Press MENU to enter the setup modes. Press MENU again to go back or exit the menu.
  • Page 11: Audio Menu

    Display Options & Channel Setup Audio Menu Press the ◄ ► button to select Press the ▲▼ button to select the desired sub-menu. Balance Press the ▲ ▼ buttons to select Balance. Press the ◄ ► buttons to adjust the level. Prefer Language Press the ▲...
  • Page 12: Options Menu

    Display Options & Channel Setup Time Zone Press the ▲ ▼ buttons to select Time Zone. Press the ◄ ► button to select the desired time zone. Note: This item is only available under ATSC signal mode. Day Saving Time Press the ▲...
  • Page 13 Display Options & Channel Setup Closed Caption Press the ▲ ▼ buttons to select Closed Caption and press the ► button to enter the submenu. Press ▲ ▼ buttons to select desired submenu. CC Mode Press the ▲ ▼ buttons to select CC Mode. Press the ◄...
  • Page 14: Channel Menu

    Display Options & Channel Setup Channel Setup Each region has different broadcast channels. Your portable TV will scan for all the channels in the area and remember each location. You can then go through and add or delete channels individually as you prefer. When completed, pressing the up / down channel buttons will take you through all of your selected channels in sequence.
  • Page 15 Display Options & Channel Setup Start to Scan Press the ▲ ▼ button to select Start to Scan. Press the ► button to start scan. The unit will automatically memorize the available channels in sequence. When completed the unit will tune the first scanned channel.
  • Page 16: Troubleshooting

    Before contacting customer service, review the steps below to solve simple problems. If you still suspect something wrong with this unit, immediately turn the power off, disconnect the power connector from the unit, and contact Eviant Customer Service. Never try to repair the unit yourself.
  • Page 17: Specifications

    Dimensions (H, W, D)......144mm x 186mm x 29mm Weight ..........~ 630g Design and specifications are subject to change without notice. All products distributed by Eviant Inc. unless otherwise indicated Eviant ©2009 Quatto Management Limited. Eviant is a trademark and service mark of Quatto 1661 Fairplex Drive Management Limited.
