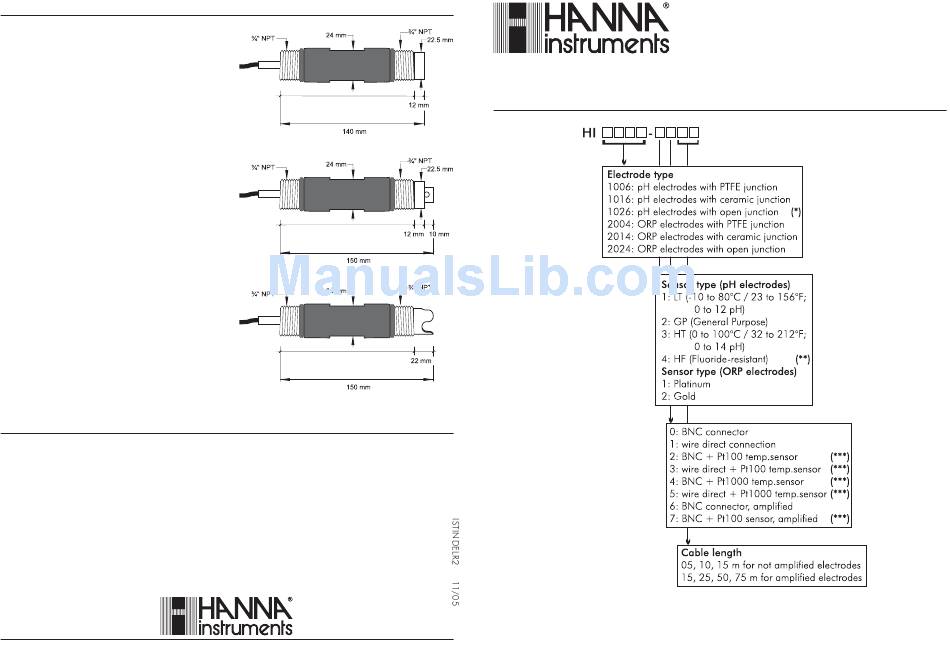

ELECTRODE CONSTRUCTION
pH electrodes
ORP electrodes with Platinum sensor
pH electrodes with HT type sensor
ORP electrodes with Gold sensor
TECHNICAL DATA
Body material: PVDF
Reference cell: Polymer filled
Matching Pin
Max. operating pressure: 6 bar (87 psi)
w
w
w
.
h
a
n
n
a
i
n
s
t
.
CODIFICATION STRUCTURE
(*) Available with GP sensor type only
(**) Fluoride-resistant glass sensor (F
(***) Not for ORP electrodes
c
o
m
pH and ORP electrodes
CODE:_______________________
-
<2g/L, temperature<60°C, pH>2)
Industrial
Advertisement
Table of Contents
Related Manuals for Hanna Instruments ELECTRODE
Summary of Contents for Hanna Instruments ELECTRODE
- Page 1 ELECTRODE CONSTRUCTION Industrial pH and ORP electrodes pH electrodes ORP electrodes with Platinum sensor CODE:_______________________ CODIFICATION STRUCTURE pH electrodes with HT type sensor ORP electrodes with Gold sensor TECHNICAL DATA Body material: PVDF Reference cell: Polymer filled Matching Pin Max. operating pressure: 6 bar (87 psi) (*) Available with GP sensor type only (**) Fluoride-resistant glass sensor (F <2g/L, temperature<60°C, pH>2)
- Page 2 ELECTRICAL CONNECTION pH and ORP electrodes with direct wire connection pH and ORP electrodes with BNC connector pH electrodes with direct wire connection and Pt100 or Pt1000 temperature sensor pH electrodes with BNC connector and Pt100 or Pt1000 temperature sensor pH electrodes with BNC connector and Pt100 sensor, amplified pH and ORP electrodes with BNC connector, amplified Note: Remove the protection sleeve from the Matching Pin before use.
