Owner's Manual
ESCORT Inc.
5440 West Chester Road
West Chester OH 45069
Sales/Service 800-433-3487
www.EscortRadar.com
©2008 ESCORT Inc. Escort®, Passport®, AutoSensitivity™, SpecDisplay™, ExpertMeter™, and Laser Shifter™ are
trademarks of Escort Inc. SWS™ is a trademark of SWS LC.
Features, specifications and prices subject to change without notice.
M o r e A c c u r a t e
U L T I M A T E R A D A R / L A S E R D E F E N S E S Y S T E M
Installation Manual
S m a r t e r
•
Q u i e t e r
•
Advertisement
Table of Contents
Related Manuals for Escort 9500ci PASSPORT
Summary of Contents for Escort 9500ci PASSPORT
- Page 1 U L T I M A T E R A D A R / L A S E R D E F E N S E S Y S T E M www.EscortRadar.com ©2008 ESCORT Inc. Escort®, Passport®, AutoSensitivity™, SpecDisplay™, ExpertMeter™, and Laser Shifter™ are trademarks of Escort Inc. SWS™ is a trademark of SWS LC.

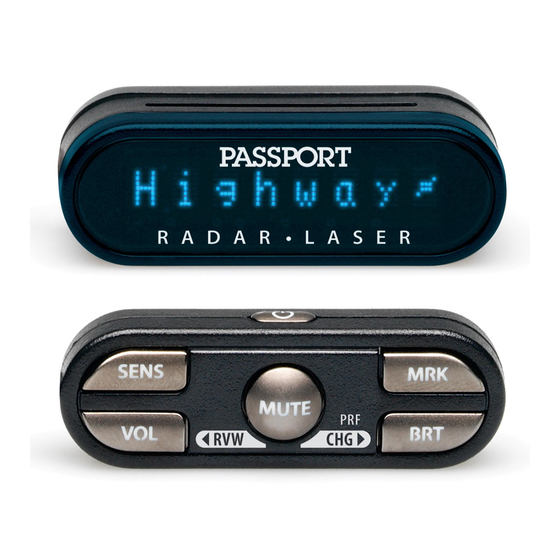

- Page 2 PASSPORT 9500ci Comes Complete Front Radar Receiver GPS Antenna Interface Radio Mute Cable • Miniature weatherproof radar receiver • Weatherproof magnetically mounted GPS • Central module connects to switched 12-volt • 6-foot cable connects to compatible vehicle • Two universal mounting brackets with stainless Antenna power and ground audio systems and automatically mutes the...
- Page 3 Important Notes Installation Instructions 5 When pulling the inline grommet to the entry Read This First Important Installation Warnings Installation Tips point, apply rubbing alcohol to a section of the 1 It is recommended that you have a professional While following the steps throughout this manual, cable to reduce friction and quickly pull the Please read these instructions in their entirety...
- Page 4 Interface Front Radar Receiver Front Radar Receiver Front Laser Shifters White Stripe (Continued) (Continued) 5 Find a suitable entry point into the vehicle’ s 2 The Laser Shifters must be mounted horizontally. interior. Refer to the Installation Tips section. For best performance, ensure that the surface marked “This Side Up”...
- Page 5 Installation Schematic Overview Letter References For Components (Color Coded Connections To Interface) Interface Front Radar Receiver (White Stripe) Front Laser Shifters (Purple Stripe) Rear Laser Shifter (Green Stripe) GPS Antenna (Yellow Shrink) Display Module (Orange Shrink) Control Module (Blue Shrink) Concealed Alert Indicator (Gray Shrink) Powered Speaker Radio Mute...
- Page 6 Front Laser Shifters Rear Laser Shifter GPS Antenna Interior Mounting Bracket (Continued) Green Stripe Yellow Shrink 4 The supplied mounting brackets can be easily customized by removing any tabs that will not be used. Simply bend the tab along the scored line and snap off.
- Page 7 Display Module Display Bezel Mounting Display Bezel Mounting Control Module Orange Shrink (Continued) Blue Shrink 7 Ensure there are no hidden cables, brackets, or other components behind the location, and that there is adequate clearance behind the panel. The 1 Determine the best location for the Display 1 Determine the best location for the Control Display will protrude into the dash or console by Module.
- Page 8 Concealed Alert Indicator Powered Speaker Operation Test Download Data Cable Gray Shrink (Continued) After all components are installed correctly: We recommend you install this cable at the time of installation to allow easy access. To do so, simply 1 Turn PASSPORT on by turning on the vehicle’ s follow these steps: ignition and, if necessary, press the power button 1 Determine the best location for the Alert...
