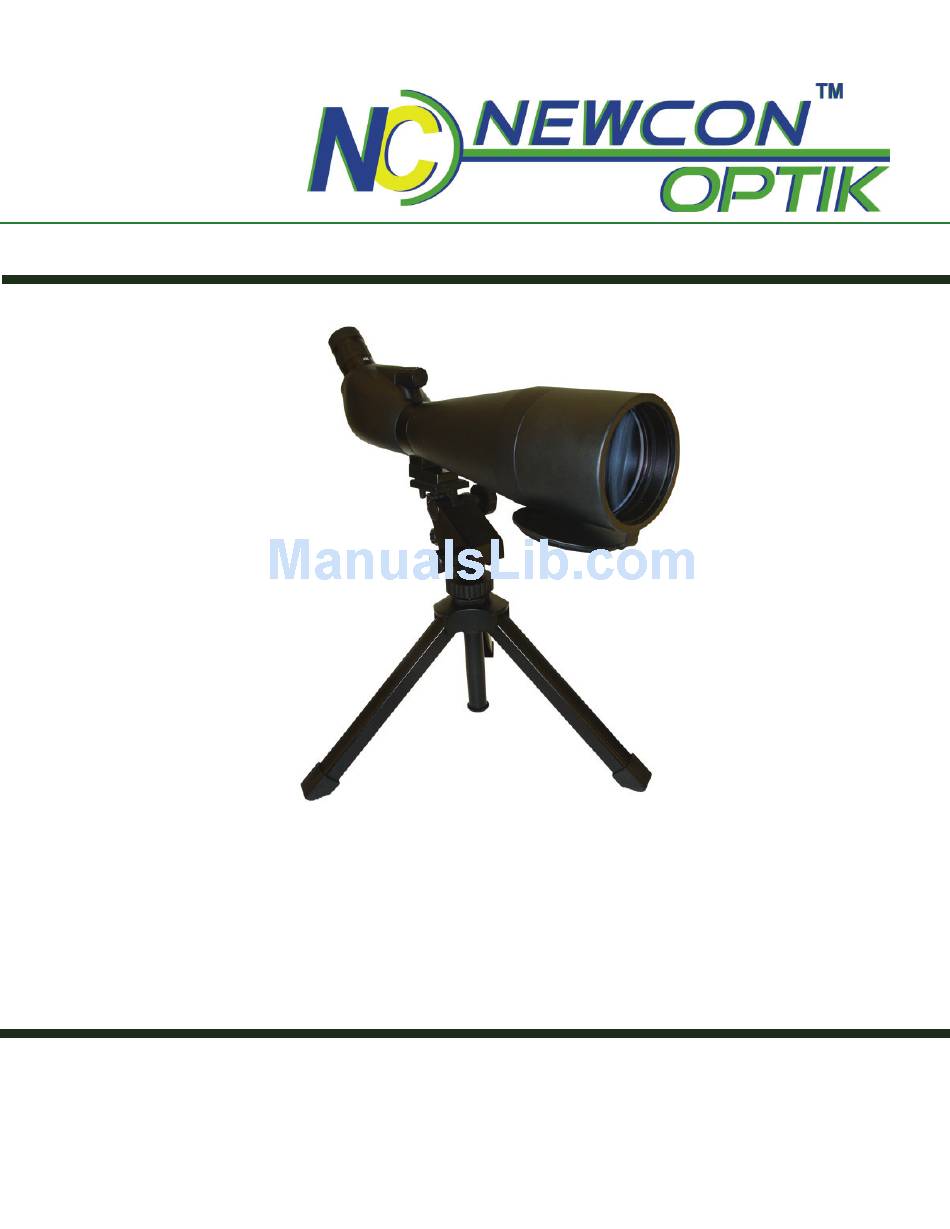

- Page 1 Operation Manual Spotter NC 20-60x80 Spotting Scope 105 Sparks Ave., Toronto, ON M2H 2S5, Canada...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION............1 2. SPECIFICATION ............2 3. SPOTTER NC 20-60x80..........3 4. DELIVERY SET ............4 5. OPERATION INSTRUCTIONS......5 6. STARTING OBSERVATION .........6 7. CARE FOR YOUR SPOTTING SCOPE....7 8. WARRANTY ............8 9. CUSTOMER SUPPORT..........9 10. QUALITY CERTIFICATE........10 ... -
Page 4: Introduction
1. INTRODUCTION Congratulations on your purchase of a Spotter NC 20- 60x80 spotting scope. The Spotter is an amazing scope designed for hunting, shooting, wildlife observation and other outdoor activities. OPTICAL QUALITY The Spotter will impress you with its optical excellence, featuring Broadband fully multi-coated optics for bright, detailed images. -
Page 5: Specification
2. SPECIFICATION Magnification Range 20-60 x Objective lens diameter 80 mm Prism BAK 4 Coating FOV @1000 m 30-15 m FOV @1000 yd 89-44 ft Eye relief 18 – 15 mm Weight 1300 g Dimensions, mm 335x170x95... -
Page 6: Spotter Nc 20-60X80
3. SPOTTER NC 20-60x80... -
Page 7: Delivery Set
4. DELIVERY SET Q-ty Spotting Scope Objective lens cover Sliding dew shield to reduce glair Carrying case and tripod Manual Universal Digital Adapter (optional) -
Page 8: Operation Instructions
5. OPERATION INSTRUCTIONS SET UP AND MOUNTING 1) Spread the tripod legs (A) and set the tripod on a firm support. Loosen the adjustment screw (B) to place mounting platform (C) in horizontal position, then rotate the screw to lock mounting platform. 2) Position mounting shoe (D) of the spotting scope body on the platform (C) then tighten mounting screw (E) to firmly lock spotting scope body on the... -
Page 9: Starting Observation
6. STARTING OBSERVATION USAGE WITH FIXED POWER EYEPIECE 1. Loosen the adjustment screw (H) and point your scope objective lens to the target you want to view. 2. Adjust the focus knob (K) until you get the clear image from your eyepiece lens. USAGE WITH ZOOM EYEPIECE 1. -
Page 10: Care For Your Spotting Scope
7. CARE FOR YOUR SPOTTING SCOPE To clean the lenses, use a soft bristle brush to whisk off dust and dirt and then use soft cloth moisture with alcohol. Wipe lenses from center outward and avoid touching the lens, as fingerprints will smear the lens. -
Page 11: Warranty
8. WARRANTY NEWCON warrants this product against defects in material and workmanship for one year from the date of the original purchase. Longer warranty is available, subject to the terms of the specific sales contract. Should your product prove to be defective during this period, please deliver the product securely packaged in its original container or an equivalent, along with the proof of the original purchase date. -
Page 12: Customer Support
9. CUSTOMER SUPPORT Should you experience any difficulties with your NEWCON OPTIK product, consult the enclosed manual. If the problem remains unresolved, contact our customer support department at (416) 663-6963 or toll free at 1- 877-368-6666. Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time. -
Page 13: Quality Certificate
QUALITY CERTIFICATE Spotter NC 20-60x80 Complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Seal... - Page 16 NEWCON OPTIK Printed in Canada...
