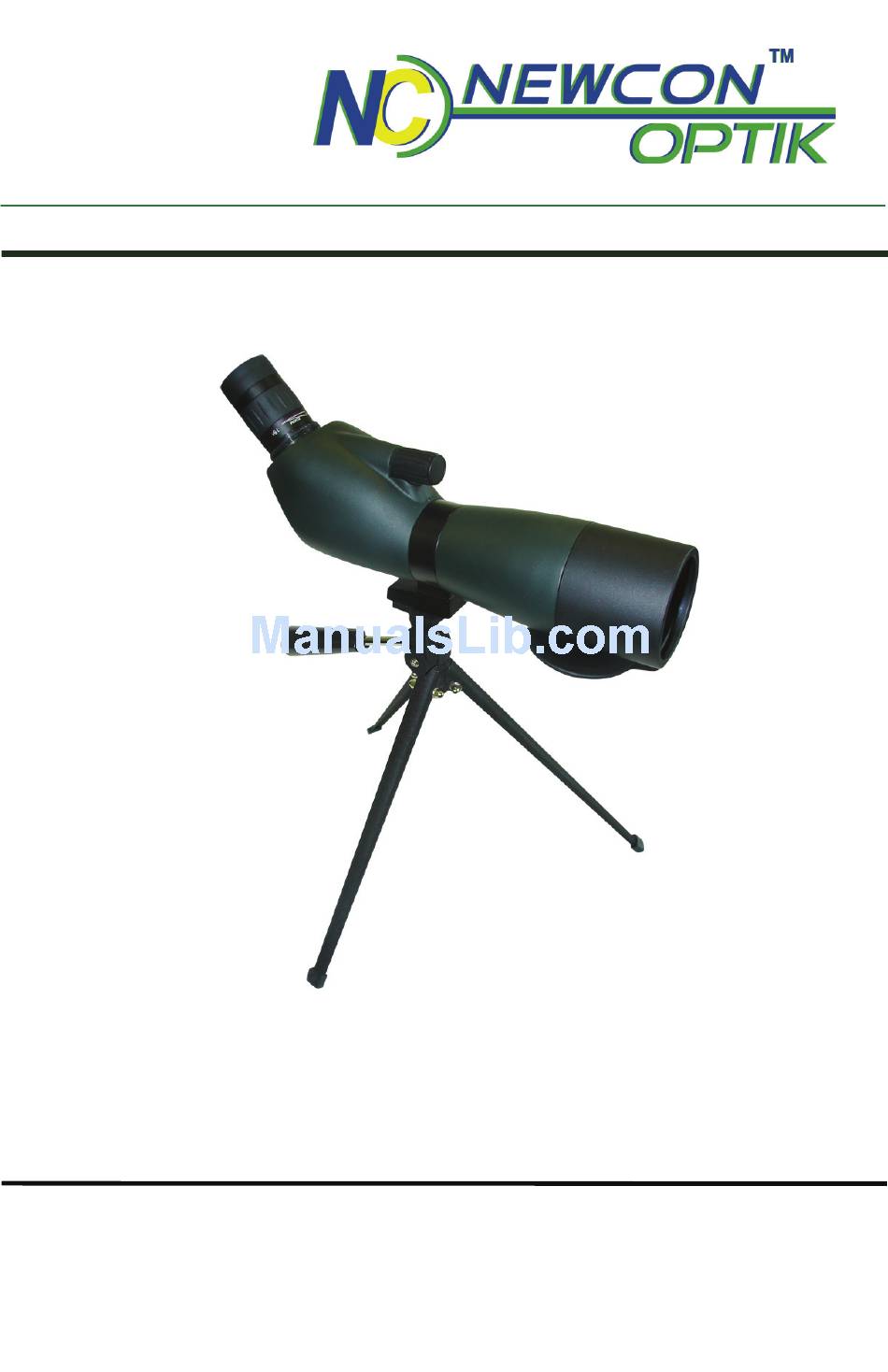

- Page 1 Operation Manual R1.2 - Feb 2010 15-45x60 Spotting Scope 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ..............1 Optical Quality..............1 Caution:................1 2. SPECIFICATION ............1 3. Spotter 15-45x60 ............2 4. OPERATION INSTRUCTIONS......3 Set Up and Mounting ............3 5. STARTING OBSERVATION .........3 6. CARE FOR YOUR SPOTTING SCOPE....4 7. WARRANTY............4 8. CUSTOMER SUPPORT..........5 9. QUALITY CERTIFICATE........6... -
Page 3: Introduction
1. Introduction Congratulations on your purchase of a Spotter 15-45x60 spotting scope. The Spotter is an amazing scope designed for hunting, shooting, wildlife observation and other outdoor activities. Optical Quality The Spotter will impress you with its optical excellence, featuring Broadband fully multi-coated optics for bright, detailed images. -
Page 4: Spotter 15-45X60
3. Spotter 15-45x60 3.1 . DELIVERY SET Q-ty Spotting Scope Objective lens cover Sliding dew shield to reduce glair Carrying case and tripod Manual Universal Digital Adapter (optional) -
Page 5: Operation Instructions
4. OPERATION INSTRUCTIONS Set Up and Mounting 1) Spread the tripod legs (A) and set the tripod on a firm support. Loosen the adjustment screw (H) to place mounting platform (C) in horizontal position, then rotate the screw to lock mounting platform. -
Page 6: Care For Your Spotting Scope
6. CARE FOR YOUR SPOTTING SCOPE • To clean the lenses, use a soft bristle brush to whisk off dust and dirt and then use soft cloth moisture with alcohol. Wipe lenses from center outward and avoid touching the lens, as fingerprints will smear the lens. •... -
Page 7: Customer Support
9am-5pm, Monday - Friday, Eastern Standard Time. At no time should equipment be sent back to Newcon without following the instructions of our technical support department. NEWCON OPTIK accepts no responsibility for unauthorized returns. To locate NEWCON Authorized Dealer call: Tel: (416) 663-6963 Fax: (416) 663-9065 Email: newconsales@newcon-optik.com... -
Page 8: Quality Certificate
9. QUALITY CERTIFICATE The binoculars serial number_____________________________ Complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector: __________________________________ Quality Assurance Seal NEWCON OPTIK™ 2010 Printed in Canada...
