Magnavox MRD 250 Hook-Up Manual

Hook Up
Hook Up
Guide
Guide

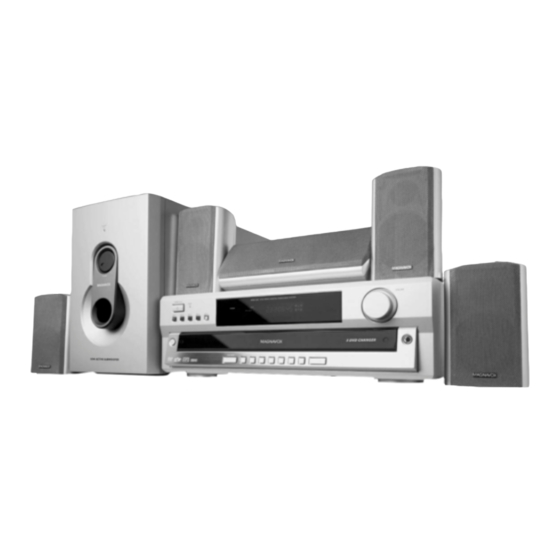

T o connect your MRD 250 Home
Cinema Surround Receiver:
1
SPEAKER CONNECTIONS
a. • Connect the Front Right (+,-) speaker wires to
the FR (Red +,-) speaker terminals on the Receiver.
• Connect the Front Left (+,-) speaker wires to the
FL (White +,-) speaker terminals.
• Connect the Center speaker wires to the C (Green
+,-) speaker terminals.
b. • Connect the Surround Right (rear speaker) wires to
the SR (Gray +,- ) speaker terminals.
• Connect the Surround Left (rear speaker) wires to
the SL (Blue +,- ) speaker terminals.
c. • Connect the Subwoofer speaker AUDIO INPUT
jack to the WOOFER LINE OUT jack on the receiv-
er. Use the supplied black cable with RCA connec-
tors on each end.
2
VIDEO CONNECTION
• Connect the yellow VIDEO OUT jack on the
Receiver to the matching VIDEO IN jack on the TV.

OPTIONAL TV Audio Connection

In order to listen to normal TV broadcast channels
through the Home Cinema Surround Receiver (if your
TV has AUDIO OUT jacks) you must make an audio
connection.
IMPORTANT! The Receiver will use all surround
sound speakers only if the TV broadcast is in a surround
sound format (Dolby Digital, DTS, Dolby Pro Logic). If
the broadcast is in stereo only, some of the surround
speakers will not be active.
• Connect the red and white pair of audio cables from
the TV AUDIO IN (Left & Right) jacks on the
Receiver to the AUDIO OUT (Left & Right) jacks on
the TV.
NOTE: When listening to TV programs, the Receiver
must be set to the AUX mode for the sound to be heard.
Use this simple and quick way to watch your favorite
DVD movie and enjoy your Home Cinema experience!

Connecting Speaker Cable

.0 4
7 "
(1 2
m m
)
P U
S H
IN
PUSH RELEASE
DOWN
x5
a b c
front
speakers
right
x1
subwoofer
AUDIO
OUTPUT
1c
75
1a
1b
surround
speakers
center
left
right left
CENTER AUDIO AUDIO
LINE OUT OUT IN
L
R
FR FL C SR SL
WOOFER
TV AUX
LINE OUT
SPEAKERS (8Ω)
Pr/Cr Pb/Cb T COAXIAL OPTICAL
COMPONENT DIGITAL
VIDEO OUT
OUT
Flip the page to start DVD playback and arrange the surround speakers.
2
Rear of TV
AV IN
AUDIO
OUT
L
S-VIDEO
IN
R
Your TV capability determines which
type of video connection you can make
with the DVD Receiver.
75 Ω
ANTENNA IN
TV. The RF Modulator converts the video from
the Receiver so it can play through the TV's
Antenna connector.
See your electronics retailer or contact Philips for
details on RF Modulator availability.
If you use an RF modulator, set the TV to channel
3 or 4. Set the RF modulator's 3/4 switch to the
same channel.
VIDEO
OUT
AM/FM
ANTENA
FM
AM
(75‰)
S- VIDEO
OUT
Pr/Cr
one of these for a higher quality connection. See
your instruction manual for details.
75 AVIN
AUDIO
OUT
L
S-VIDEO R
IN
H H
ELPFUL INTS
If your TV only has a single Antenna In
jack, you will need an accessory RF
Modulator
to view DVD playback on your
Y
RF coaxial cable to TV
Back of RF Modulator
(example only)
ANT IN TO TV
AUDIO IN
VIDEO
IN
R L
CH3 CH4
Antenna or Cable TV Signal
Audio/Video cables from DVD Receiver
Pb/Cb Y S-VIDEO If your TV has S-Video or
IN
Component (PB PR Y) jacks
you can connect the receiver using
Y
