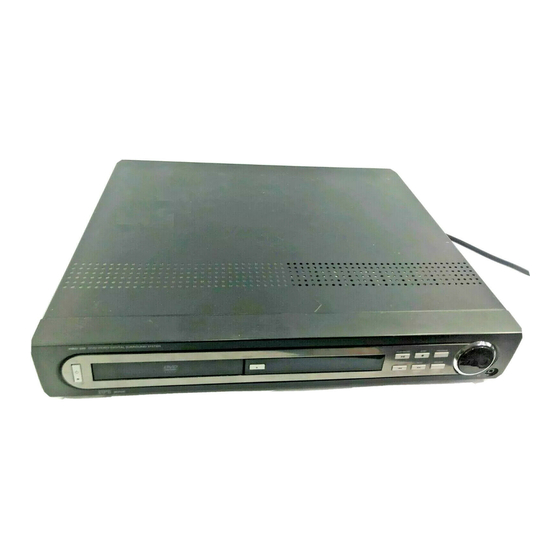

Magnavox MRD 200 Quick Use Manual

Quick Use
Quick Use
Guide
Guide
T o connect your MRD 200 Home
Cinema Surround Receiver:
1
SPEAKER CONNECTIONS
a. • Connect the Front Right (+,-) speaker wires to
the FR (Red +,-) speaker terminals on the Receiver.
• Connect the Front Left (+,-) speaker wires to the
FL (White +,-) speaker terminals.
• Connect the Center speaker wires to the C (Green
+,-) speaker terminals.
b. • Connect the Surround Right (rear speaker) wires to
the SR (Gray +,- ) speaker terminals.
• Connect the Surround Left (rear speaker) wires to
the SL (Blue +,- ) speaker terminals.
c. • Connect the Subwoofer speaker AUDIO INPUT
jack to the WOOFER LINE OUT jack on the receiv-
er. Use the supplied black cable with RCA connec-
tors on each end.
2
VIDEO CONNECTION
• Connect the yellow VIDEO OUT jack on the
Receiver to the matching VIDEO IN jack on the TV.
OPTIONAL TV Audio Connection
In order to listen to normal TV broadcast channels
through the Home Cinema Surround Receiver (if your
TV has AUDIO OUT jacks) you must make an audio
connection.
IMPORTANT! The Receiver will use all surround
sound speakers only if the TV broadcast is in a surround
sound format (Dolby Digital, DTS, Dolby Pro Logic). If
the broadcast is in stereo only, some of the surround
speakers will not be active.
• Connect the red and white pair of audio cables from
the TV AUDIO IN (Left & Right) jacks on the
Receiver to the AUDIO OUT (Left & Right) jacks on
the TV.
NOTE: When listening to TV programs, the Receiver
must be set to the AUX mode for the sound to be heard.
Use this simple and quick way to watch your favorite
DVD movie and enjoy your Home Cinema experience!
x5
75 AVIN
AUDIO
OUT
L S-VIDEO
IN
R
H H
ELPFUL INTS
Your TV capability determines which
type of video connection you can make
with the DVD Receiver.
75 Ω
If your TV only has a single Antenna In
jack, you will need an accessory RF
ANTENNA IN Modulator
to view DVD playback on your
TV. The RF Modulator converts the video from
the Receiver so it can play through the TV's
Antenna connector.
x1
Y
See your electronics retailer or contact Philips for
details on RF Modulator availability.
If you use an RF modulator, set the TV to channel
3 or 4. Set the RF modulator's 3/4 switch to the
same channel.
RF coaxial cable to TV
Back of RF Modulator
(example only)
ANT IN TO TV
VIDEO AUDIO IN
IN R L
Antenna or Cable TV Signal
Audio/Video cables from DVD Receiver
Pr/Cr Pb/Cb Y S-VIDEO If your TV has S-Video or
IN
Component (PB PR Y) jacks
you can connect the receiver using
one of these for a higher quality connection.
Y
Rear of TV
75 AV IN
AUDIO
OUT
L
S-VIDEO
IN
R
COMPONENT
Pr/Cr Pb/Cb Y
VIDEO OUT
AM
CENTER
AUDIO OUT AUDIO IN S-VIDEO
LINE OUT
DIGITAL OUT
L
FM
(7Ω )
R
AM/FM WOOFER
TV AUX OPTICAL COAXIAL
LINE OUT
ANTENNA
1c
(SUBWOOFER)
Connecting Speaker Cable
CH3 CH4
.0 4
7 "
(1 2
m m
a
Note: You must turn on the
power switch on the front
of Subwoofer when in
operation.
Flip the page to start DVD playback and arrange the surround speakers.
2
Front Speaker (Right)
+ -
1a
FR FL C SR SL
+ +
VIDEO
OUT OUT
SPEAKER (4Ω )
Surround Speaker (Right)
- +
)
P U
S H
IN
PUSH RELEASE
DOWN
b c
Center Speaker Front Speaker (Left)
+ -
+ -
AC POWER
Surround Speaker (Left)
+ -
1b
