The MV-VS2 is a mechanical video and audio switching device used to increase the number of inputs to the Mobile Video System
providing greater system flexibility and ease of use. Follow the enclosed diagrams to make proper connections.
Installation
The MV-VS2 has 3-way mounting capability. It can be mounted
under the dash or under a ledge, on the floor or on top of a ledge
and it can also be panel mounted in a cabinet, console or wall.
Installation Notes:
1. Choose a mounting location that provides easy access by
the end user.
Surface Mounting:
Use the "L" brackets provided to secure the MV-VS2 into place.
The brackets can be placed at the top of the MV-VS2 cabinet for
under dash or under ledge mounting or at the bottom of the cab-
inet for floor or surface mounting. DO NOT mount the MV-VS2
on uneven surfaces which will cause the brackets or chassis to
bend or flex excessively.

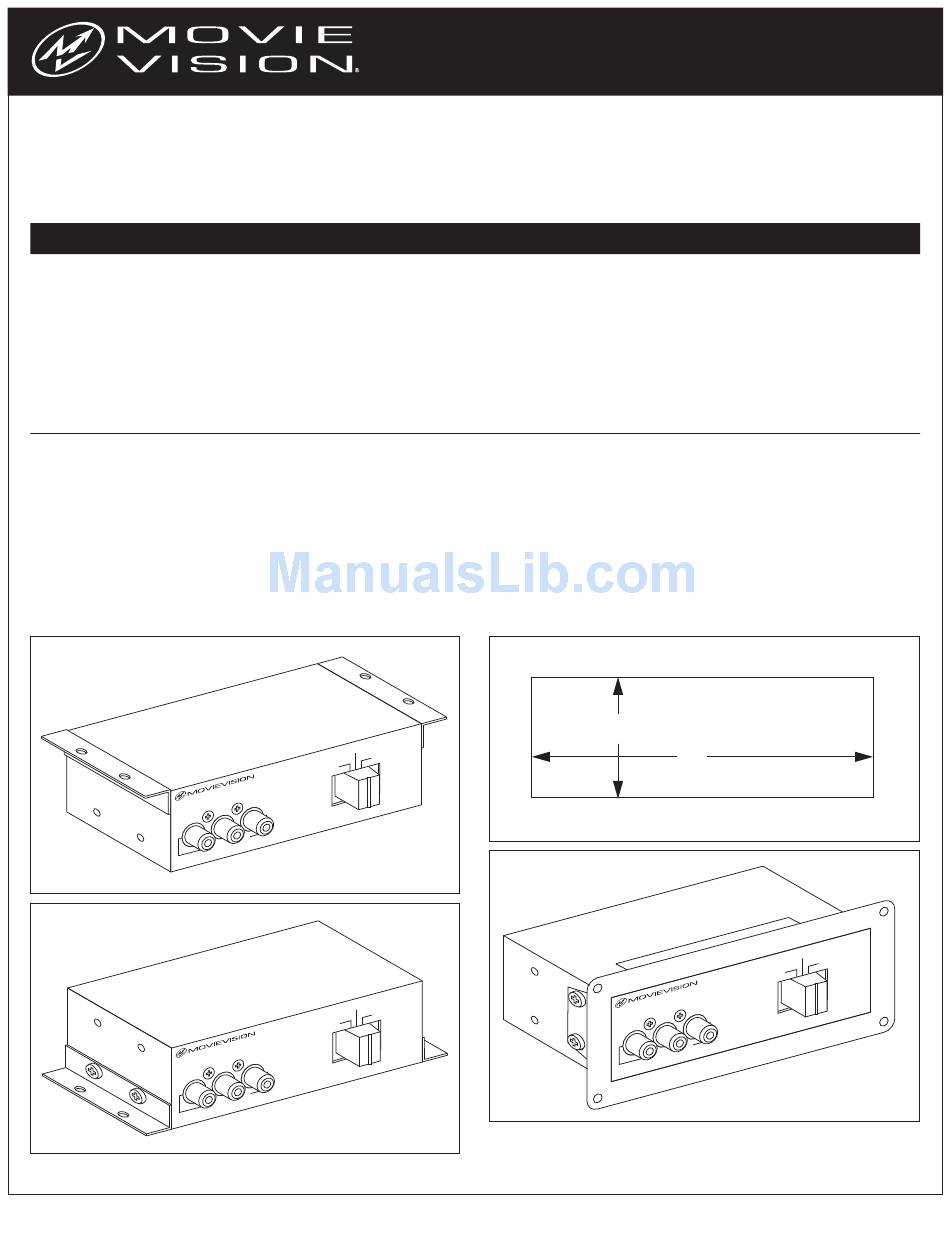

Under Dash Mounting
3 S o
M V -V
Surface Mounting
3 S o
M V -V
© 2006 Copyright Magnadyne Corporation
Installation and User Manual
T
IN P U
A V 2
A V 3
T
IN P U
A V 1
c h
S w it
c to r
S e le
A /V
u rc e
S 2
E C T
S E L
U T
I N P
P U T
1 I N
A V
T
IN P U
A V 2
A V 3
T
IN P U
A V 1
c h
S w it
c to r
S e le
A /V
u rc e
S 2
E C T
S E L
U T
I N P
P U T
1 I N
A V
Model: MV-VS2
2. Choose a solid mounting surface that will withstand the
pulling and pushing force when the end user is plugging in
and disconnecting devices.
3. If panel mounting, follow the recommendations in point #2.
The mounting surface must be able to withstand the pulling
and pushing force.
Panel Mounting:
Remove the "L" brackets from the MV-VS2 housing and slip on the
panel mount adapter. Use the screws you removed from the "L"
brackets to secure the panel mount adapter to the MV-VS2 chassis.
You must cut a hole in the mounting surface approximately 5" x
1-3/4" in size.
Hole Opening
T
IN P U
Panel Mounting
T
IN P U
1
3
/
"
4
5"
T
IN P U
A V 1
c h
S w it
c to r
S e le
A /V
u rc e
3 S o
S 2
M V -V
I N P
P U T
1 I N
A V
MV-VS2-INS Rev. A 2-15-06
T
IN P U
A V 2
T
IN P U
A V 3
E C T
S E L
U T
