Movie Vision VCS-3 Installation And User Manual

The VCS-3 is a mechanical antenna signal switching device used to increase the number of antenna inputs to a television providing
greater system flexibility and ease of use. Follow the enclosed diagrams to make proper connections.

Installation

The VCS-3 has 3-way mounting capability: Under dash, surface
and panel (cabinet, console or wall). Choose a mounting location
that provides easy access to the end user.

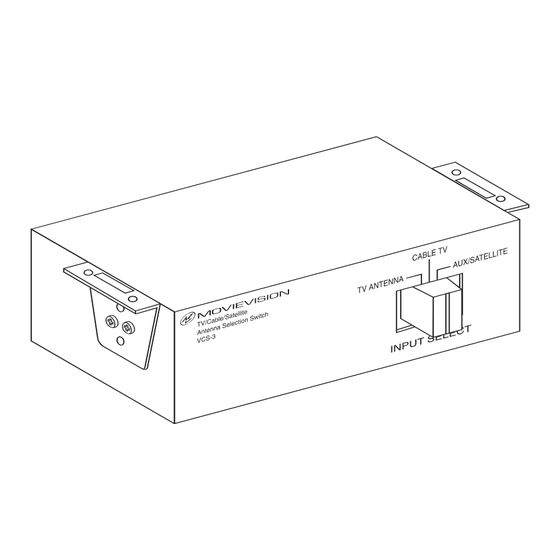

Surface Mounting:

Use the "L" brackets provided to secure the VCS-3 into place.
The brackets can be installed pointing UP for under-counter
mounting or DOWN for floor or surface mounting. Use the
screws provided to secure the "L" brackets to the side of the
VCS-3 housing.

Under Dash Mounting

Surface Mounting
© 2006 Copyright Magnadyne Corporation
Installation and User Manual
Model: VCS-3

Panel Mounting:

For panel mounting, secure the "L" brackets onto the sides of the
VCS-3 housing and face them FORWARD. Cut a hole in the mount-
ing surface to allow the housing to slide through. After making all
the rear cable connections, slide the housing into the mounting
hole and sure it to the panel with self-tapping wood or metal
screws. Place the trim ring over the front of the unit, align the tabs
of the trim ring with the slots in the mounting brackets and press
the trim ring into place.
Hole Opening
Panel Mounting
1
2
VCS-3-INS Rev. A 5-8-06
