Page 1: Quick Start Guide

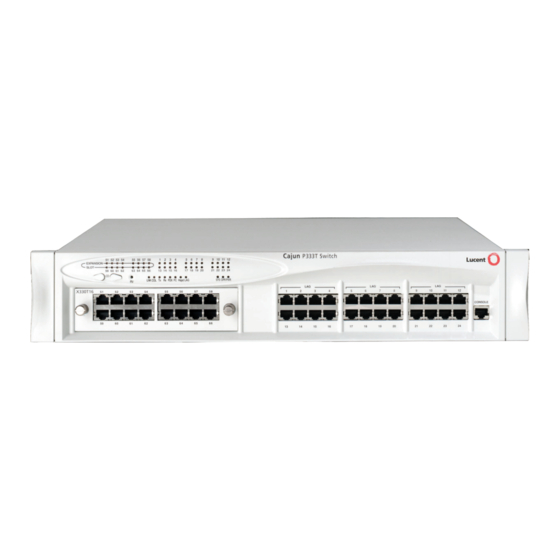

Cajun™ P333T Unpack Quick Start Guide Rack mount (optional) Power up Connect the cables Configure Run Web-based Manager (optional) - Page 2 • Four screws with washers for rack mounting E Ethernet connection cables are not supplied Documentation • Cajun P333T Quick Start Guide (this document) • Cajun P330 Release Notes • Cajun P330 Documentation and Utilities CD (see detail below) •...
- Page 3 Rack mount (optional) WARNING: Disconnect all cables from the unit before proceeding with the rack installation. 1. Snap open the hinged ends of the unit’s front panel to reveal the screw holes. Closed hinged end Cajun P333R 11 12 Lucent EXPANSION SLOT Hspd...
- Page 4 Power up Cajun P330 AC Version 1. Insert the power cord into the power connector (BUPS or Power Supply) on the rear of the unit. BUPS connector AC connector 2. Insert the other end of the power cord into the electricity supply or the BUPS connector. K The unit powers up and performs a self test procedure.
-
Page 5: Connect The Cables
Connect the cables Connect PCs, servers, routers, workstations, and hubs 1. Connect the Ethernet connection cable (not supplied) to a 10/100 Mbps port on the front panel of the Cajun P330. E You should use standard RJ-45 connections. You must use CAT-5 cable for 100 Mbps operation. -
Page 6: Basic Configuration
Basic configuration To connect a PC terminal or VT-100 terminal to the Cajun P330 1. If you are using a PC, initiate a VT-100 terminal emulation session using an application such as Windows® HyperTerminal. 2. Press Enter. K The Welcome to Cajun P330 menu is displayed. 3. - Page 7 Setting the Parameters If you wish to change the default parameters shown and configure the mandatory parameters, we recommend that you use the Command Line Interface (CLI). E For further information, please refer to Chapter 6 of the Cajun P330 User’s Guide. Default Switch Parameters Configuration Parameter Default Setting...
-
Page 8: System Requirements
Run the Web-Based Manager (optional) E To configure the Cajun P330 you can use the P330 Web-based Manager in addition to using the CLI. System Requirements Minimum hardware and Operating System requirements are: • Windows® 95 or NT® 4.0 or higher •... - Page 9 K If you do not have the Java plug-in installed, the following message appears: E If the network manager has configured the system the plug-in should be installed auto- matically. If the plug-in is not installed automatically, there are three ways to install the plug-in manually: •...
-
Page 10: Documentation And Online Help
Documentation and Online Help Refer to the Cajun P330 Documentation and Utilities CD for full instructions... - Page 11 Notes...
-
Page 12: Contact Information
If you have any comments about our documentation, please contact us by e-mail at cajun-info@lucent.com Cajun is a trademark of Lucent Technologies, Inc. All other trademarks, registered trademarks, service names, product and/or brand names are the sole property of their respective owners.
