Fusion MS-FR6520 Instruction Manual

6. 5 " MARINE
MS-FR6520

SPECIFICATIONS

MAX POWER RATING
EFFICIENCY (1W/1M)
FREQUENCY RESPONSE
IMPEDANCE
MAGNET STRUCTURE
MOUNTING DEPTH
MOUNTING DIAMETER

PRODUCT CONTENTS

2 x 6.5" Marine Speakers
2 x Speaker Cables
1 x Mounting Template
2 x Foam Gaskets
1 x FUSION Decal
Mounting Screws & Hardware
Manual
Warranty Card

INSTALLATION

» Check clearance around the mounting area before installation ensuring
that the area is free from obstruction and there is adequate depth for
the speaker.
» Using the supplied mounting template, mark the correct diameter on
the mounting surface.
» Use a suitable cutting tool to remove the marked surface and drill
four holes for the screws to pass through.

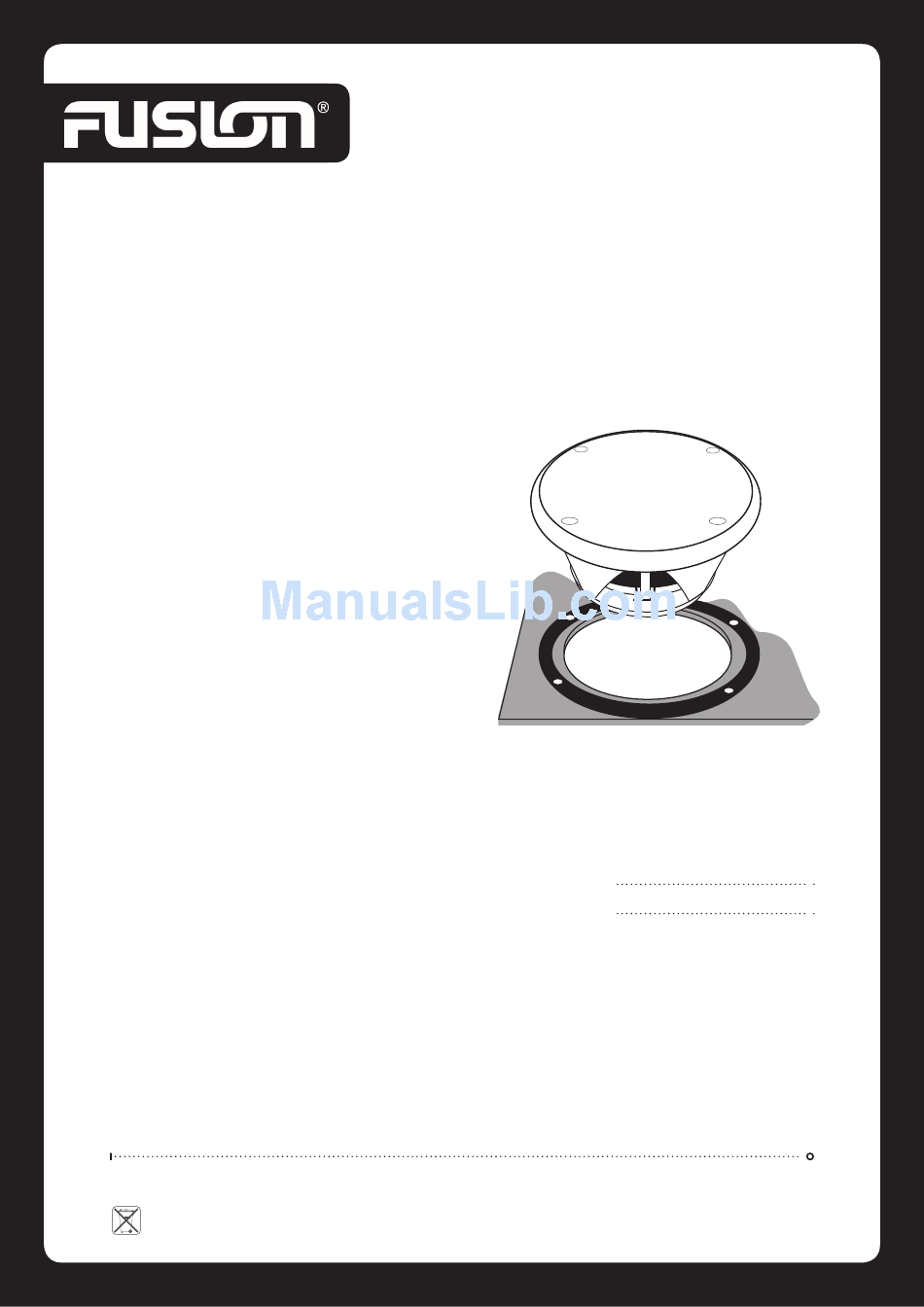

» Peel the backing off the foam gasket provided and attach to the
mounting surface to seal the rear of the marine speaker.
» Ensure correct polarity before connecting the speaker terminals to the
marine audio system using the speaker cable provided.
» Insert the speaker into the speaker mounting hole and affix the
speaker with the stainless screws and mounting hardware provided.
CAUTION: Speakers can cause interference to navigational equipment. Please refer to navigation equipment manufacturer for speaker mounting restrictions.
WARNING! Audio Systems can produce sound levels over 135dB. Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss!
www.fusionelectronics.com
PUBLISHED BY FUSION ELECTRONICS LIMITED: © Copyright 2010 by FUSION Electronics Limited. All rights reserved. Specifications and design are subject to change without notice.
YOU CAN HELP PROTECT THE ENVIRONMENT! Please remember to respect the local regulations: Hand in the non-working electrical equipment to an appropriate waste disposal center.
2
-WAY SPEAKERS
200 Watts
90dB
80Hz – 20kHz
4 Ohms
50 Oz
70mm - 2 3/4"
141mm - 5 9/16"
RECORD YOUR PURCHASE DETAILS HERE:
SERIAL NUMBER
DATE OF PURCHASE
AFFIX RECEIPT HERE
v1.0
