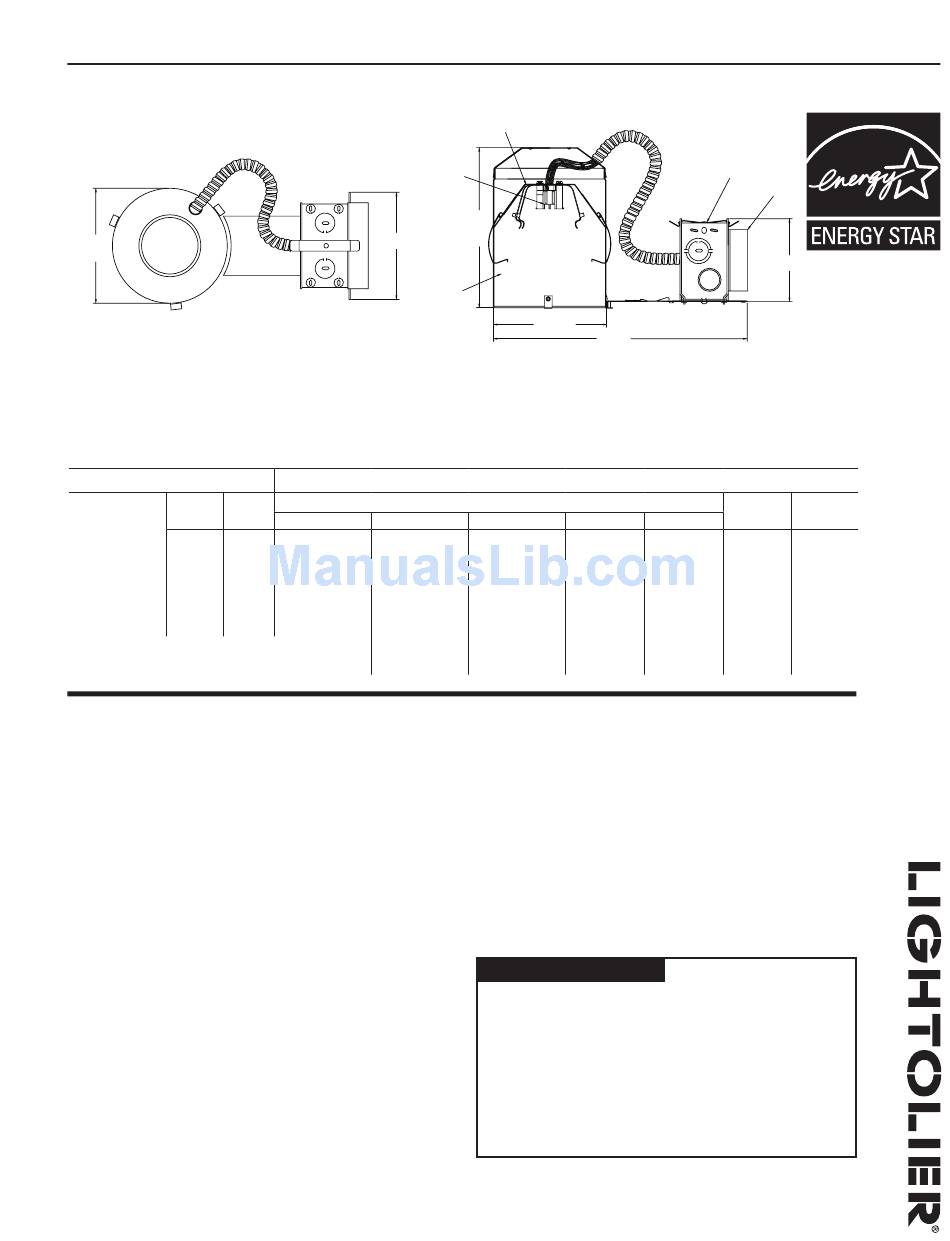

Lightolier 1004F26ESR Specification

Page 1 of 1 5" Aperture
5 1/4"
DIAMETER
Ceiling Opening 5 3/8" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Voltage Lamp
1004F26ESR 120V 26W
Quad or
Triple
Tube
* Recommend Triple Tube Lamp for Optimal Performance
** Use Triple Tube Lamp Only.
Features
1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex
cable without tools or additional connectors.
3. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
4. Socket: (4 Pin, GX24q-3) base, molded thermo-plastic. Pre-wired with
#18 AWG leads to junction box.
5. Ballast: Electronic 120V, end of life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star
Electrical
Input Watts: 27
Amps: .23
Ballast Factor: 1.0
Power Factor: .98
Max THD %: 10%
Min Start Temp: 0˚F/ -18˚C
Lytecaster Recessed Downlighting
®
0
1 Lt 26W Quad / Triple Tube Compact Fluorescent IC Remodeler
®
OVERALL
5"
1
Reflector Trims — See Individual Reflector Trim Specification Sheets
Anodized Reflector Anodized Cone
1045* 1012*
1046* 1012NM*
1046CD* 1013*
1013BK*
1013BKNM*
1013CD*
1013CDNM*
1013NM
1013WH*
housing minimizes
®
®
qualified.
®
3
4
7 1/2"
HEIGHT
5 1/2"
APERATURE
11 3/8"
OVERALL
LENGTH
Open Downlight
Satin Cone Baffles
1008* 1005*
1008NM* 1005BNM*
1010* 1005NM*
1010NM* 1005WH*
1076*
1076WH*
Options & Accessories
AirSeal Kit: LAS56R
®
(Required for Airseal Installation)
Labels
UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • C0711
1004F26ESR
2
5
3 7/8"
Enclosed Wall
Diffusers Washer
Basic White
1071* 1021 1035**
1024 1035WH
1078** 1085**
1095*
1096*
1096CD*
Type:
