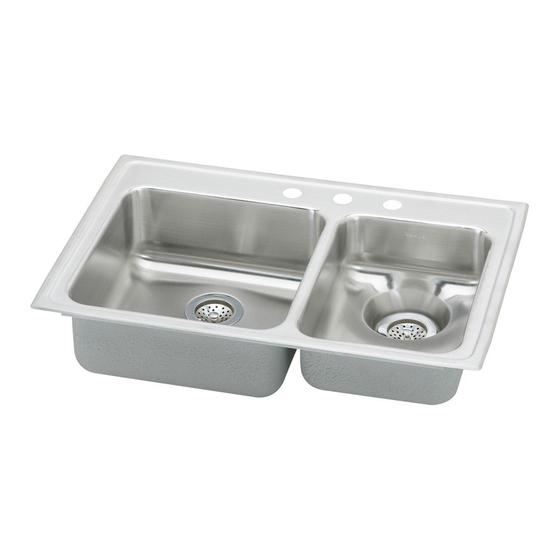

Elkay Sink LWRQ3322L Specifications

SPECIFICATIONS

GENERAL

Highest quality sink bowl seamlessly formed of #18 gauge, type
304 (18-8) nickel bearing stainless steel. Self-rimming.
DESIGN FEATURES
Bowl Depths: 7-5/8" (large bowl), 6-1/8" (waste bowl).
Coved Corners: 1-3/4" vertical and horizontal radius.
Bowl and Faucet Deck Recess: 3/16" below outside edge of
sink.
Finish: Exposed surfaces are hand blended to a lustrous
highlighted satin finish.
Underside: Fully undercoated to dampen sound and prevent
condensation.

OTHER

Drain Opening: 3-1/2".
Suffix "L" (left) or "R" (right) denotes waste disposer opening
located in left or right bowl.
NOTE: Unless otherwise specified, sink is furnished with 4
faucet holes as shown.
These sinks comply with ANSI Standard A112.19.3M.

OPTIONAL ACCESSORIES

Rinsing Basket: LKRB1414CR, LKRB1611 or LKERBSS.
Bottom Grid: LKOBG1616.
Cutting Board: CB1713 or CBS1316.

SINK DIMENSIONS (INCHES)*

U-Channel Quick-Clip ®
Model Model
Number Number
LWR3322L LWRQ3322L
LWR3322R LWRQ3322R
* Length is left to right. Width is front to back.
U-Channel Type Mounting System
ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay
product specifications without notice.
Elkay
www.elkayusa.com
®
Inside
Overall Left Bowl Right Bowl
L W L W D L
1 1
33 22 11 ⁄ 16 6 ⁄ 16
2 8
33 22 16 16 7 5 ⁄ 11 1 ⁄
8 2
SEE OTHER SIDE FOR PRODUCT DIMENSIONS.
reserves the right to change
2222 Camden Court
Oak Brook, IL 60523
Lustertone ®
Models LWR3322 and LWRQ3322 Series
Model LWR(Q)3322R4
Cutout in
Countertop
1 1
1
Inside (1 / " Radius
2
Faucet
Corners)
W D L W 4" Centers
5 3 3
16 7 ⁄ 32 ⁄ 21 ⁄ 1, 2, MR2, 3, 4 or 5
8 8 8
16 6 1 ⁄ 32 3 ⁄ 21 3 ⁄ 1, 2, MR2, 3, 4 or 5
8 8 8
Quick-Clip
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.
Double Bowl Waste-All
Model LWR(Q)3322L4
No. of
/ " Dia.
2
Minimum Ship.
Holes Cabinet Wt.
Size Lbs.
36 21
36 21
®
Mounting System
Printed in U.S.A.
©2004 Elkay
(Rev. 3/04)
® Sink
1-66F
