- Page 1 7″ 16:9 Headrest with pillow LCD Monitor/TV Operation Instruction Please read these instructions carefully before using this unit ...
-
Page 2: Table Of Contents
Content …………………………………………… 1、General Information 2 ………………………………………………………… 2 2、Precautions ………………………………………………… 2 3、Installation Guide ……………………………………………… 4、Monitor Illustration 3 …………………………………………………… 3 5、Remote Control …………………………………………………… 4 6、Menu Operation ………………………………………………… 7、Trouble Shooting 8 ………………………………………… 9 8、Technical Specifications 1 ... -
Page 3: General Information
1、GENERAL INFORMATION Thank you very much for your purchase of this headrest with pillow LCD Monitor. Player please read this instruction manual and keep it for future references. 2、PRECAUTIONS 1> It’s made up of many precision electronic elements, and any dismantlement or refit will make it damaged or broken. 2> When operating the unit, please avoid contacting with the LCD panel. 3> Keep it away form the place where is too hot or too cold. Operating temperature of the unit is 3292 degrees Fahrenheit. 4> Do not drop the monitor or impact it with hard objects. This may cause permanent irreversible damage to the LCD panel and/or the back light element. ... -
Page 4: Monitor Illustration

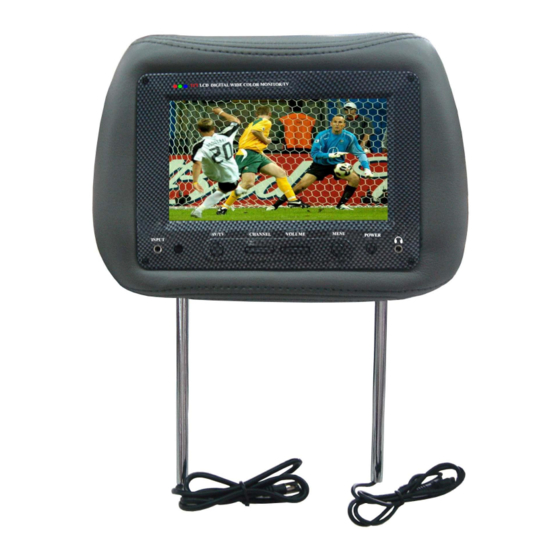

4、MONITOR ILLUSTRATION 1> Video/Audio Input 2> Incept window 3> 4> AV/TV Switch from AV to TV CH+/CH Program descend button 6> MENU OSD Setting 5> V+/V Volume Reduction Button 7> 8> Power ON/OFF button Earphone jack 5、REMOTE CONTROL MUTE MUTE on/off ON/OFF Power switch TIME Offtime SYS Audio mode VIEWMODE Setting picture display dimension. MIRROR Mirror image setting VIDEO AV/TV selection MENU Main menu P To the next higher program (the cursor is moved upwards) ... -
Page 5: Menu Operation
Notice 1). Please align the remote controller with the infraredreceiving window on TV in operation. 2). Never oppress, drop, wet or disassembly the remote controller. 3). Never press any button continuously and swiftly. Operation interval is at least 2 seconds. 4). Press power to turn on the machine before pressing P / P for program channel selection. 1. Channel (digit key 0~9 and /): There are 0~254 in total of 255 channels available on the remote controller for your option by the 1 buttons of 0~9 and / on the remote controller. When the channel is a onedigit figure, just puss the corresponding digit button, If the channel is a twodigit figure, you should press/ first to show/ “”on the display screen before further pressing the corresponding digit buttons. 2. P ... - Page 6 1. PICTUER. Contrast. Bright. Color. Sharp and TINT display on the screen as illustrated below: BRIGHT 35 COLOR 25 CONTRAST 30 SHARPNESS 32 TINT 50 1>. Press Menu to display program as follows: Brightness, Color, Contrast, Sharpness and Tint. 2>. Enter into PICTURE, press CH+/CH to select the item which need to be set and it’s indicated by arrowhead.. Characters are in red. 3>. Press VOL+/VOL to increase or reduce the number of the selected items. It won’t ...
- Page 7 LANGVAGE CALENDAR GAME NORMAL NORMAL ZOOM 1>. Here are such functions in this Menu, as follows: Language, Calendar, Game and Picture. 2>. Press CH+/ CH to select the item, which need to be set, and it’s indicated by arrowhead. Characters are in red 3>. Press VOL+/ VOL to set the number of the selected items. 4>. Press VOL+/ VOL can realize the switch of Chinese. English. 5>. Russian Diamonds Game a. Press CH+ to change diamonds’ direction. Press CH to change it’s speed of downward movement. b. Press CH+ to make the diamonds to move right; press VOL to make the diamonds to move left ...
- Page 8 a. Sound System: 5.5Mis B/G, 6.0Mis I, 6.5Mis D/K. Please select locate sound system first. b. In case it has picture while no sound or with noise, please check whether the setup of Sound System is correct or not first. 4>. Enter into SYSTEM, Press CH+/CH to select the item, which needs to be set, and it’s indicated by arrowhead. Characters are in red. 5>. Press VOL+/ VOL to set the number of the selected items. 6>. Selected the items with need to be exchanged and copied and press V+/ V to set the target program number, and input number of 09 when pressing CH+/ CH to be in the right of arrowhead. It starts work when press V+. Press CH+/ CH to exchanger their numbers. ...
-
Page 9: Trouble Shooting
weak signal is received, the channel storage system wills automatically it asno signal. 5>. All the setting numbers will be preserved automatically in the EEPROM address. 6>. It will quit the menu automatically if no any operation exceeds ten seconds. 6. CLOCK SLEEP 0 TIME : OFF TIME : ON TIME : ALARM : B. TIME : B. PR : 1>. Here are such functions are bellow: Sleep Time, OFF Time, On Time, Attention, Booked Time and Booked Chinned. 2>. Press VOL+/VOL to set ... -
Page 10: Technical Specifications
8、TECHNICAL SPECIFICATIONS TYPE Headrest with pillow color TFTLCD Monitor Display System 7inch TFTLCD Monitor Display Format 960×234×RGB Aspect Ratio 16：9 Active Area 163（W）×123（H）mm Rotary Angle Picture turn Up/Down and Right/Left Video input 47870MHZ Source Video input 1VPP (PAL/NTSC) *2PC Audio input: Operating Temperature 0℃～60℃ Operating Humidity 20％～85％ Operating Voltage DC+12V ＜10W Power Consumption 9 ...
