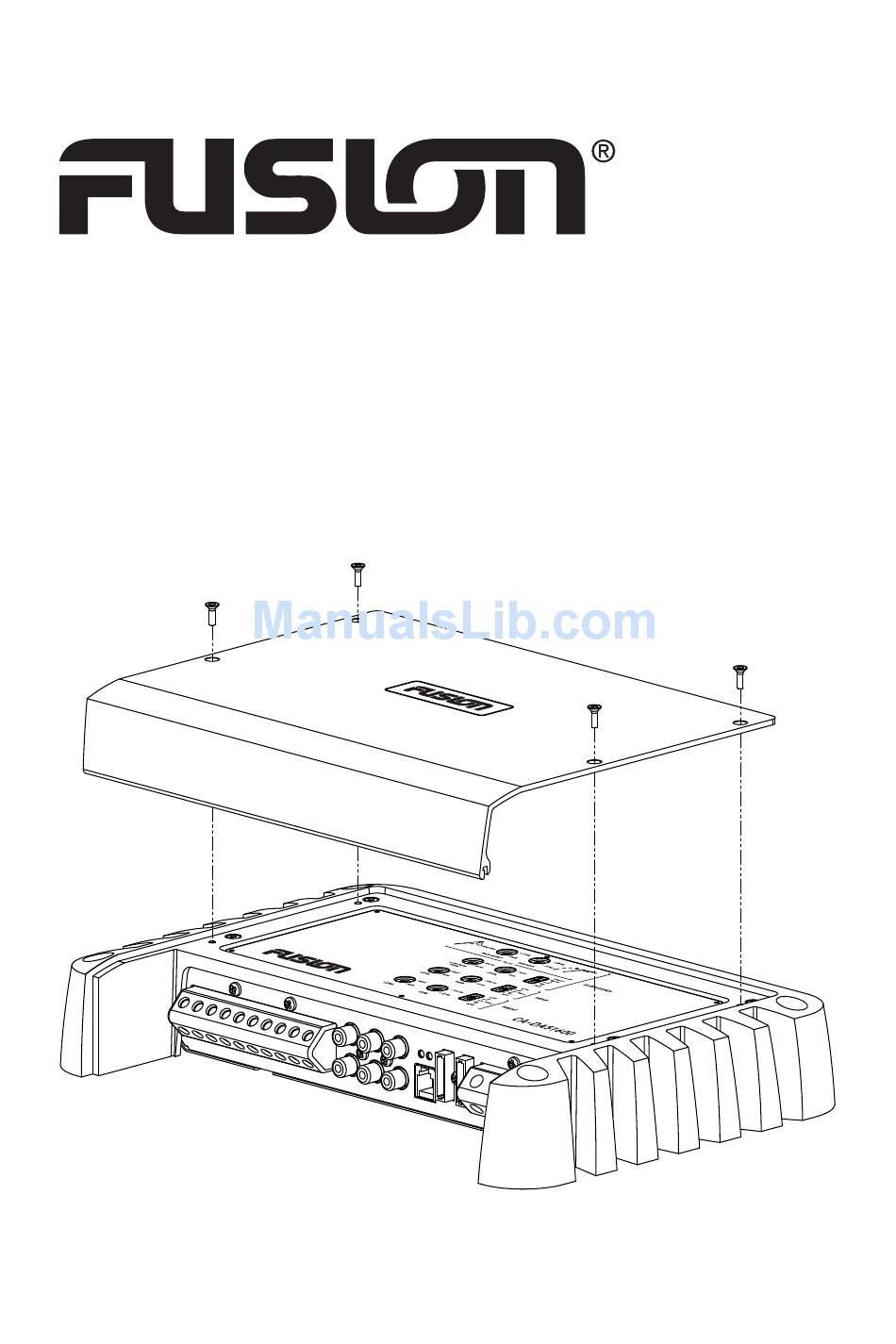

- Page 1 USER MANUAL D-CLASS AMPLIFIER CA-DA12250 CA-DA41400 CA-DA51600 Specifications and design are subject to change without notice...
-
Page 2: Amplifier Specifications
POWER WIRING FUSION amplifiers should be connected directly Ensure the audio system is turned off before to the +12V battery terminal with an inline fuse or making any connections to the amplifier, circuit breaker as close the battery as possible. -
Page 3: Level Control
LEVEL CONTROL This control is used to match the input level of the amplifier to the output level of you head unit. We recommend the following method. NOTE: Remove screws and the top cover of amplifier to access controls. Turn the amplifier level to zero Adjust the level control until the desired maximum volume... - Page 4 AMPLIFIER DIMENSIONS CA-DA12250, CA-DA41400, CA-DA51600 300 11-13/16" 268 10-9/16" All dimensions provided are in millimeters (mm) unless indicated...
- Page 5 12. FUSION LOW FREQUENCY CONTROL: This displays “green” if the amplifier has been correctly The FUSION Low Frequency Control (F.L.F.C.) is a dual stage powered up & ‘red’ if any faults are present. control interface. The combination of a Subsonic filter and a Bass Boost control allows precise shaping of the audio signal 6.
- Page 6 CA-DA41400 - CONTROL DESCRIPTIONS 1. SPEAKER OUTPUT: 11. BASS BOOST: Connect your speakers to these terminals. The Bass Boost is a variable control to increase the level at 45Hz from 0 - +12dB of gain. Adjust this control with extreme 2.
- Page 7 14. FUSION LOW FREQUENCY CONTROL: This sets the crossover frequency point for the rear filter The FUSION Low Frequency Control (F.L.F.C.) is a dual stage between 32Hz and 320Hz. NOTE: Failure to correctly set control interface. The combination of a Subsonic filter & a...
- Page 8 Please watch for emergency vehicles as warning signals may not be heard. USE COMMON SENSE! PUBLISHED BY FUSION ELECTRONICS LIMITED: © Copyright 2010 by FUSION Electronics Limited. All rights reserved. Specifications and design are subject to change without notice.
