Elkay LMR33224 Specifications

SPECIFICATIONS

GENERAL
Highest quality sink bowls seamlessly formed of #18 gauge, type
304 (18-8) nickel bearing stainless steel. Self-rimming.
DESIGN FEATURES
Bowl Depths: 5-1/8" (left bowl), 7-7/8" (right bowl).
Coved Corners: 3" and 1-3/4" vertical and horizontal radius.
Bowl and Faucet Deck Recess: 3/16" below outside edge of sink.
Finish: Exposed surfaces are hand blended to a lustrous high-
lighted satin finish.
Underside: Fully protected by heavy duty Sound Guard
coating to dampen sound and prevent condensation.
OTHER
Drain Opening: 3-1/2".
NOTE: Unless otherwise specified, sink is furnished with 4 faucet
holes as shown.
These sinks comply with ANSI Standard A112.19.3M.
OPTIONAL ACCESSORIES
Rinsing Baskets: LKRB1520, LKRB715 or LKERBSS.
Bottom Grid: LKBG2015.
Cutting Board: CB816 or CBS715.
SINK DIMENSIONS (INCHES)*
U-Channel Quick-Clip ®
Model Model
Number Number L
LMR3322 LMRQ3322 33
*
Length is left to right. Width is front to back
4" 4" 4"
3" R 1-3/4" R
1-1/4"
7-1/2" 21"
33"
1-3/4" R
5-1/8"
1-3/4" R
Model LMR33224 Illustrated
ALL DIMENSIONS IN INCHES, TO CONVERT
TO MILLIMETERS MULTIPLY BY 25.4.
In keeping with our policy of continuing product improvement, Elkay reserves the right to change
product specifications without notice.
Elkay
www.elkayusa.com
®
Inside
Overall Left Bowl Right Bowl
W L W D L
22 7 1 / 15 3 / 5 1 / 21 15
2 4 8
.
22"
15-3/4"
7-7/8"
2222 Camden Court
Oak Brook, IL 60523
Models LMR3322 and LMRQ3322
® under-
Cutout in
Countertop
1 1
Inside (1 1 / " Radius
2
Corners)
W D L W 4" Centers
3 / 7 7 / 32 3 / 21 3 / 1, 2, MR2, 3, 4, or 5
4 8 8 8
U-Channel Type Mounting System
®
Quick-Clip Mounting System
This specification describes an Elkay product with design, quality and functional benefits to the
user. When making a comparison of other producers' offerings, be certain these features are not
overlooked.

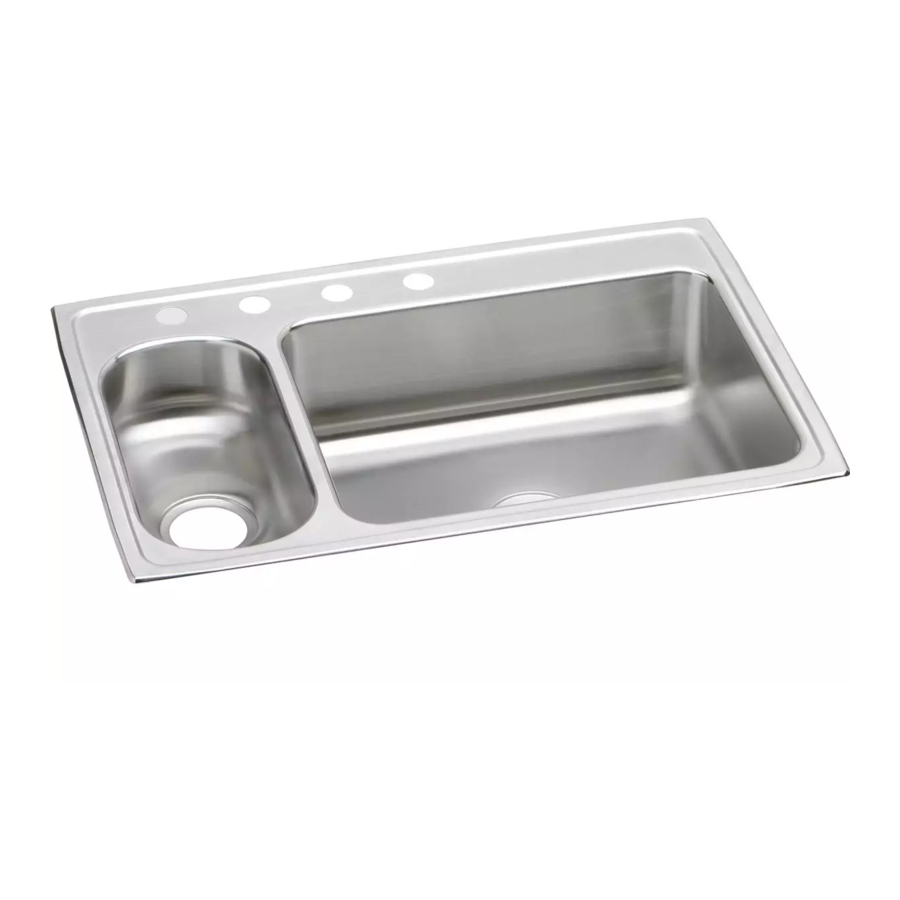

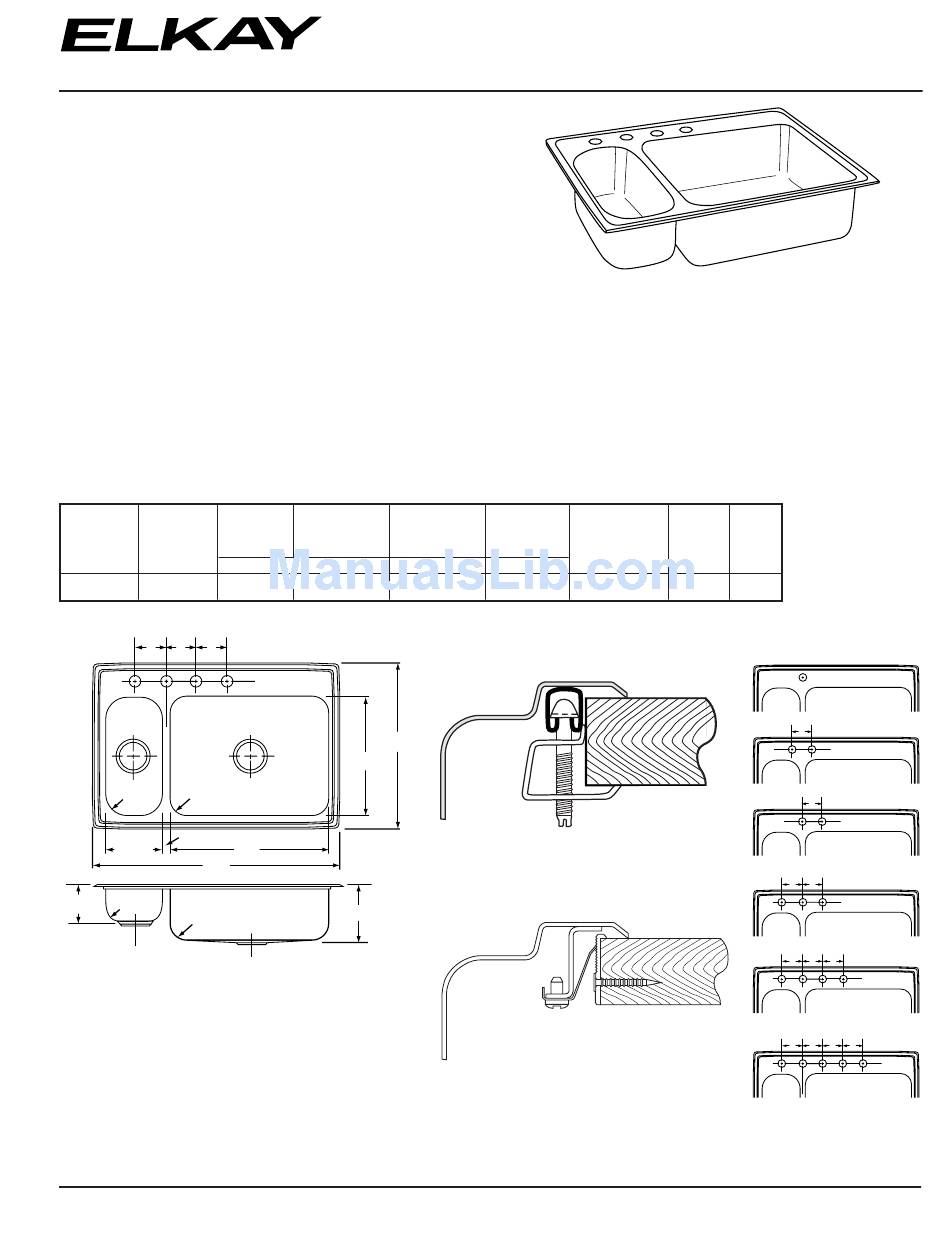

Lustertone ® Double Bowl Sink
Model LMR(Q)33224
No. of
/ " Dia.
2
Faucet Minimum Ship.
Holes Cabinet Wt.
Size Lbs.
36 21
CONFIGURATIONS
HOLE DRILLING
1
4"
2
4"
MR2
4" 4"
3
4" 4" 4"
4
4" 4" 4" 4"
5
Printed in U.S.A.
©2004 Elkay
