767

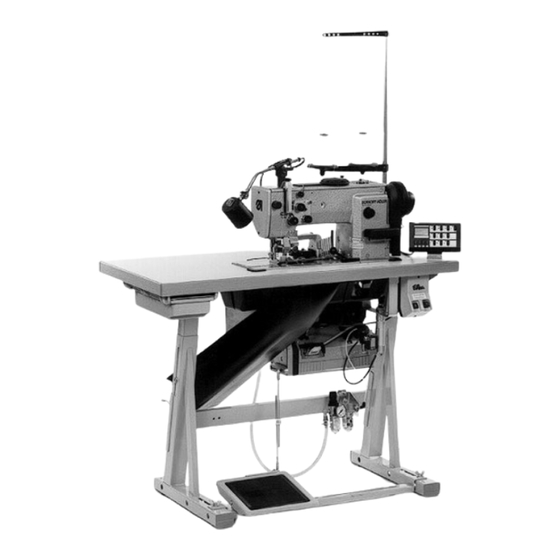

Spezialnähmaschine
Betriebsanleitung
D

Instruction manual

GB
Manuel d'instructions
F
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 5 21 / 9 25- 00 • Telefax +49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com
Ausg. / Edition: Änderungsindex
Teile-Nr./Part.-No.:
10/2008
Rev. index: 03.0
Printed in the Czech Republic
0791 767742

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 767 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DURKOPP ADLER 767

Summary of Contents for DURKOPP ADLER 767

  • Page 1: Instruction Manual

    Spezialnähmaschine Betriebsanleitung Instruction manual Manuel d'instructions Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld Telefon +49 (0) 5 21 / 9 25- 00 • Telefax +49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com Ausg.
  • Page 2 Alle Rechte vorbehalten. Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise Wiederverwendung dieser Inhalte ist verboten. All rights reserved. Property of the Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.
  • Page 3 Foreword This instruction manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The instruction manual contains important information on how to operate the machine securely, properly and economically. Observation of the instructions eliminates danger, reduces costs for repair and down-times, and increases the reliability and life of the machine.

  • Page 4: General Safety Instructions

    General safety instructions The non-observance of the following safety instructions can cause bodily injuries or damages to the machine. 1. The machine must only be commissioned in full knowledge of the instruction book and operated by persons with appropriate training. 2.

  • Page 5: Table Of Contents

    Contents page: Part 2: Cl. 767 Installation instructions Items delivered ....... . . Setting up Erecting the upper part .

  • Page 7: Items Supplied

    1. Items supplied Which items are supplied depends on your order. Please check that all the required components are present before beginning setting-up work. – Basic machine with one or two needles, with or without thread clipper and with or without edge cutter.

  • Page 9: Setting Up

    2. Setting up IMPORTANT ! The special sewing machine may only be set up by trained specialist personnel. Packing must be removed prior to setting-up. – Remove safety bands and wood from upper part, table and frame. – Remove safety bands and block from motor. 2.1 Erecting the upper part If the special sewing machine was not delivered fully assembled: –...

  • Page 11: Reel Stand

    2.4 Reel stand The structure and position of the reel stand 1 can be seen in the illustration. – Fit reel stand 1 and secure it with nuts 2 and washers 3. – Fit reel-stand holder and take-up arms. The reel-stand holder and take-up arms must be vertically in line. 2.5 Working height Working height is adjustable between 750 and 900 mm.

  • Page 12: Electrical Connection

    3. Electrical connection IMPORTANT ! All work on the electrical equipment of this special sewing machine may only be carried out by qualified electricians or other appropriately trained persons. The mains plug must be removed. 3.1 Rated voltage IMPORTANT ! The mains voltage must coincide with the rated voltage specified on the model-identification plate.

  • Page 13: Checking Positioning

    3.3 Checking positioning The sewing machine should be positioned with the thread lever at top dead centre. The position transmitter 2 is fixed to the shaft with the position-transmitter ring 1. With fully-assembled sewing machines the pre-set position is indicated by a coloured mark. Checking positioning –...

  • Page 14: Pneumatic Connection

    4. Pneumatic connection The pneumatic system of the special sewing machine and its optional equipment must be connected to a supply of moisture-free compressed air. Air pressure must be between 8 and 10 bar. Connecting the compressed-air maintenance unit – Connect hose 2 (order no.

  • Page 15: Filling With Oil

    5. Filling with oil (until July 2003) (from August 2003) Top up the oil reservoir only with DA-10 oil or an equivalent oil with the following specification: – Viscosity at 40° C : 10 mm – Flash point: 150 °C DA-10 can be obtained from DÜRKOPP ADLER AG sales outlets (see operating manual, page 27).

  • Page 16: Regulation Of Hook Lubrication

    5.1 Regulation of hook lubrication IMPORTANT ! The oil quantity is pre-set at a relatively high level in order to ensure adequate lubrication during running-in. This setting should be checked and corrected after running-in (approx. 50 hours). See also or service manual. Caution Risk of Injury ! Turn the main switch off.

  • Page 17: Lubricating Wicks And Felt

    5.2 Lubricating wicks and felt The wicks and felt 1 must be soaked with a little oil when setting up the machine and following any extended period of disuse. – Unscrew cap 2. – Soak wicks and felt 1 with a little oil. –...

  • Page 18: Sewing Test

    6. Sewing test A sewing test must be carried out following setting-up. Look out! Danger of injury! The upper and lower threads must be threaded with the sewing machine switched off. – Thread upper and lower threads. – Select material 1 to be sewn. –...
