Before installation

Before installation
Note
Be sure to disconnect the vehicle battery's negative terminal
before installing the receiver.

Components

No.
1 Main unit
2 Mounting sleeve
3 Side bracket
4 Rear bracket
5 Bezel
6 Bushing
7 Self-tapping screw (6 x 16 mm)
8 Stud bolt
9 Flat head screw (5 x 8 mm)
10 Hex-head bolt (5 x 20 mm)
11 Hex nut (5 mm)
12 Interconnecting cable

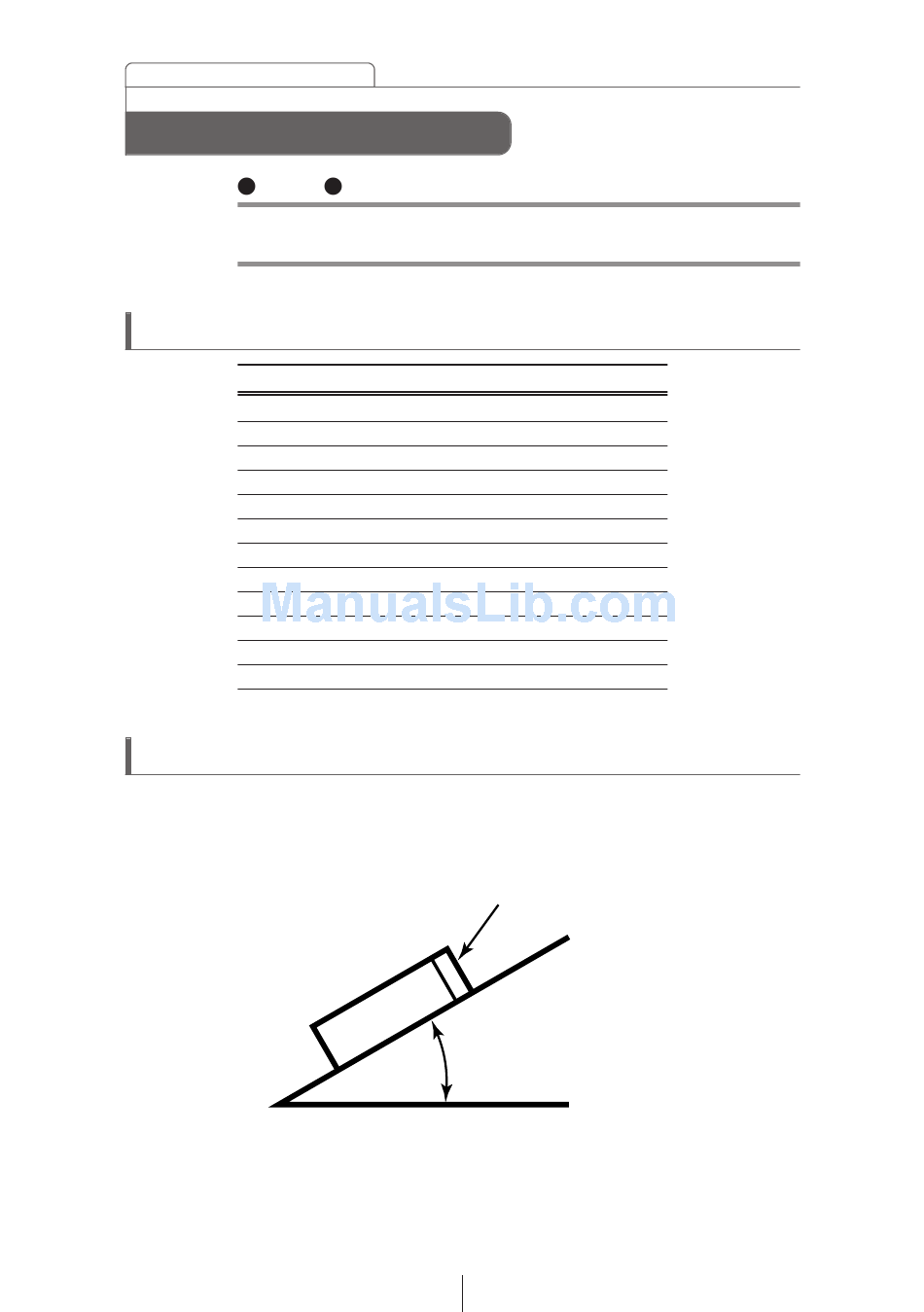

Installation angle

In order to maintain proper functioning, install the unit within an angle
of 30 degrees from horizontal (standard). If this is not done, sound
skipping or ejection of the CD may occur.
Item
FRONT
WITHIN AN ANGLE
OF 30 DEGREES
56
Q'ty
1
1
2
1
1
1
2
1
4
2
2
1
STANDARD
