Use and Care Manual
Product No.
Series
Color
Volts
Wiring Diagram
Owner's Guide
Market
Energy Guide
Service Data Sheet
Installation Instructions 241568303
N05L00001.eps N05DAACKA1.eps N05BBAABA26.eps N05SADDEA5.eps
N05CBABAB4.eps
W241582401.eps S241582801.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
FRT18B5JB1 FRT18B5JM1 FRT18B5JQ1 FRT18B5JW1 FRT18B5JZ1
R134a
R134a
R134a
black
silver mist
bisque
115
115
115
241582401
241582401
241582401
241857201
241857201
241857201
North America North America North America North America North America
241613768
241613768
241613768
241588203
241588203
241588203
240568303
240568303
Publication No.
5995513719
08/05/08
(EN/SERVICE/KHB)
390
R134a
R134a
white (right) white (left)
115
115
241582401
241582401
241857201
241857201
241613768
241613768
241588203
241588203
240568303
240568303

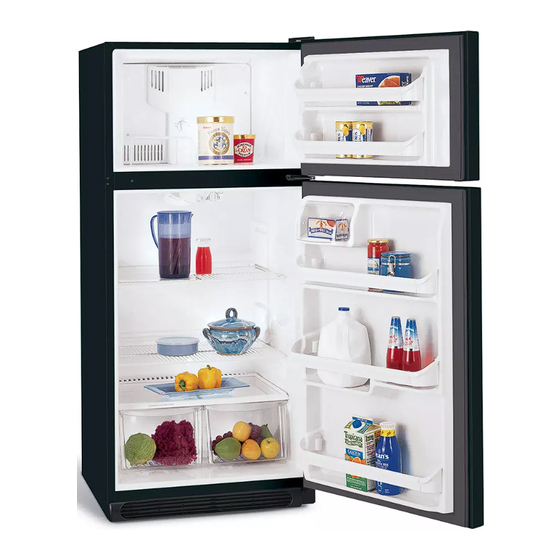

TOP-MOUNT
REFRIGERATOR
Model No.
FRT18B5J
©
Copyright
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FRT18B5J
Summary of Contents for Frigidaire FRT18B5J
- Page 1 Product No. FRT18B5JB1 FRT18B5JM1 FRT18B5JQ1 FRT18B5JW1 FRT18B5JZ1 Series R134a R134a R134a R134a R134a Color black silver mist bisque white (right) white (left) Volts Wiring Diagram 241582401 241582401 241582401 241582401 241582401 Owner's Guide 241857201 241857201 241857201 241857201 241857201 Market North America North America North America North America North America Energy Guide 241613768 241613768...
- Page 2 Publication No: 5995513719 FRT18B5J DOOR N05DAACKA1 05/08...
- Page 3 FRT18B5J Publication No: 5995513719 DOOR Model Index: A FRT18B5J (FRT18B5JB1) B FRT18B5J (FRT18B5JM1) C FRT18B5J (FRT18B5JQ1) D FRT18B5J (FRT18B5JW1) E FRT18B5J (FRT18B5JZ1) POS. NO PART NO. DESCRIPTION 241872509 A B - - - Gasket-frzr door, black, magnetic 241872503 - - C D E Gasket-frzr door, white, magnetic 241872512 A B - - -...
- Page 4 Publication No: 5995513719 FRT18B5J CABINET 05/08...
- Page 5 FRT18B5J Publication No: 5995513719 CABINET Model Index: A FRT18B5J (FRT18B5JB1) B FRT18B5J (FRT18B5JM1) C FRT18B5J (FRT18B5JQ1) D FRT18B5J (FRT18B5JW1) E FRT18B5J (FRT18B5JZ1) POS. NO PART NO. DESCRIPTION 241652301 A B C D E Cover-fan 240367001 A B C D E Knob-damper control 5303001028 A B C D E...
- Page 6 Publication No: 5995513719 FRT18B5J CABINET 05/08...
- Page 7 FRT18B5J Publication No: 5995513719 CABINET Model Index: A FRT18B5J (FRT18B5JB1) B FRT18B5J (FRT18B5JM1) C FRT18B5J (FRT18B5JQ1) D FRT18B5J (FRT18B5JW1) E FRT18B5J (FRT18B5JZ1) POS. NO PART NO. DESCRIPTION 241839407 A B - - - Grille/Kickplate, black 241839406 - - C - - Grille/Kickplate, bisque 241839405 - - - D E...
- Page 8 Publication No: 5995513719 FRT18B5J SHELVES N05SADDEA5 05/08...
- Page 9 FRT18B5J Publication No: 5995513719 SHELVES Model Index: A FRT18B5J (FRT18B5JB1) B FRT18B5J (FRT18B5JM1) C FRT18B5J (FRT18B5JQ1) D FRT18B5J (FRT18B5JW1) E FRT18B5J (FRT18B5JZ1) POS. NO PART NO. DESCRIPTION 5303282284 A B C D E Shelf-freezer, "table type" 241542001 A B C D E Diffuser, air, top 240362601 A B C D E...
- Page 10 Publication No: 5995513719 FRT18B5J SYSTEM N05CBABAB4 05/08...
- Page 11 FRT18B5J Publication No: 5995513719 SYSTEM Model Index: A FRT18B5J (FRT18B5JB1) B FRT18B5J (FRT18B5JM1) C FRT18B5J (FRT18B5JQ1) D FRT18B5J (FRT18B5JW1) E FRT18B5J (FRT18B5JZ1) POS. NO PART NO. DESCRIPTION 241861903 A B C D E Condenser, static 240405201 A B C D E Grommet, rubber, black, cond tube/wire 5303208866 A B C D E...
-
Page 12: Wiring Schematic
Publication No: 5995513719 FRT18B5J WIRING SCHEMATIC 05/08... -
Page 13: Wiring Diagram
FRT18B5J Publication No: 5995513719 WIRING DIAGRAM 05/08 # Functional Parts * Non-Illustrated Parts...
