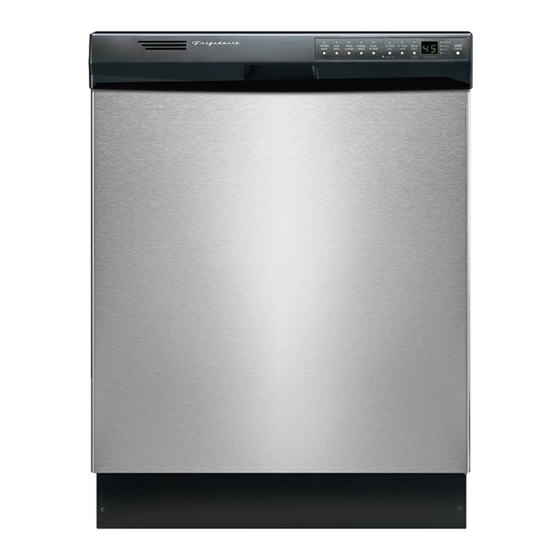

Frigidaire FDB2410HI Factory Parts Catalog
24-inch built-in
Hide thumbs
Also See for FDB2410HI:
- Features & dimensions (2 pages) ,
- Use and care manual (20 pages) ,
- Installation instructions manual (36 pages)
Advertisement
Quick Links
FDB2410HIS0.bmp FDB2410HI door.eps FDB2410HI door.eps FDB2410HI tub.eps
FDB2410HI motor.eps FEIDW6105GB0.eps FDB2410HI rack.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FDB2410HIB0 FDB2410HIC0 FDB2410HIS0
Series
Built-in 24"
Color
black
Owner's Guide English 672060103922 672060103922 672060103922
Owner's Guide Spanish 672060103964 672060103964 672060103964
Owner's Guide French
672060103963 672060103963 672060103963
Service Data Sheet
672060709924 672060709924 672060709924
Energy Guide
5304470301
Installation Instructions 672060120602 672060120602 672060120602
Market
North America North America North America
Publication No.
5995530341
08/12/10
(EN/SERVICE/ECL)
Built-in 24"
Built-in 24"
stainless
white
5304470301
5304470301
24-INCH BUILT-IN
DISHWASHER
821
©
Copyright
Model No.
FDB2410HI
All rights reserved.
Advertisement
Related Manuals for Frigidaire FDB2410HI
Summary of Contents for Frigidaire FDB2410HI
- Page 1 Product No. FDB2410HIB0 FDB2410HIC0 FDB2410HIS0 Series Built-in 24" Built-in 24" Built-in 24" Color black stainless white Owner's Guide English 672060103922 672060103922 672060103922 Owner's Guide Spanish 672060103964 672060103964 672060103964 Owner's Guide French 672060103963 672060103963 672060103963 Service Data Sheet 672060709924 672060709924 672060709924 Energy Guide 5304470301 5304470301...
-
Page 2: Door Control Panel
Publication No: 5995530341 FDB2410HI DOOR / CONTROL PANEL 12/08... - Page 3 FDB2410HI Publication No: 5995530341 DOOR / CONTROL PANEL Model Index: A FDB2410HI (FDB2410HIB0) B FDB2410HI (FDB2410HIC0) C FDB2410HI (FDB2410HIS0) POS. NO PART NO. DESCRIPTION 5304460955 A B C Screw, tapping, st3.5 x 9, (26) 5304470228 A B C Cover, door vent 5304460910 A B C Screw, tapping, st3.5 x 13, (6)
- Page 4 Publication No: 5995530341 FDB2410HI 12/08...
- Page 5 FDB2410HI Publication No: 5995530341 Model Index: A FDB2410HI (FDB2410HIB0) B FDB2410HI (FDB2410HIC0) C FDB2410HI (FDB2410HIS0) POS. NO PART NO. DESCRIPTION 5304470201 A B C Hose, delivery, external 5304460950 A B C O-ring, delivery hose 5304470202 A B C Tub Assembly 5304470203 A B C Frame, tub, LH...
-
Page 6: Motor & Pump
Publication No: 5995530341 FDB2410HI MOTOR & PUMP 12/08... - Page 7 FDB2410HI Publication No: 5995530341 MOTOR & PUMP Model Index: A FDB2410HI (FDB2410HIB0) B FDB2410HI (FDB2410HIC0) C FDB2410HI (FDB2410HIS0) POS. NO PART NO. DESCRIPTION 5304460970 A B C Clamp, hose, OTK175, (5) 5304460989 A B C Hose, drain 5304470256 A B C Trap, glass 5304470257 A B C...
- Page 8 Publication No: 5995530341 FDB2410HI RACKS 12/08...
- Page 9 FDB2410HI Publication No: 5995530341 RACKS Model Index: A FDB2410HI (FDB2410HIB0) B FDB2410HI (FDB2410HIC0) C FDB2410HI (FDB2410HIS0) POS. NO PART NO. DESCRIPTION 5304470263 A B C Shelf, cup, (2) 5304470264 A B C Rack Assembly, upper 5304470265 A B C Dispenser, feeding, middle 5304470266 A B C Pipe, sprayarm, middle...
