Fire-Lite MDF-300 Installation Instructions

Specifications

Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
EOL Resistance:
Maximum IDC wiring resistance:
Temperature Range:
Humidity:
Dimensions:
Accessories:

Before Installing

This information is included as a quick reference installation guide. Refer to the control panel installation manual for detailed system
information. If the modules will be installed in an existing operational system, inform the operator and local authority that the system
will be temporarily out of service. Disconnect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.

General Description

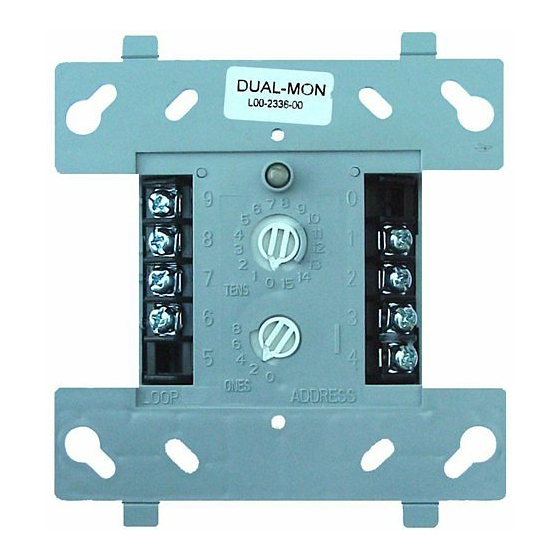

The Dual Monitor Module is intended for use in addressable, two wire systems. It provides two independent 2-wire initiating device circuits
(IDC), at two separate, consecutive addresses. It is capable of monitoring normally open contact fire alarm and supervisory devices, or
either normally open or normally closed security devices. The module has a single panel controlled red LED.

Compatibility Requirements

To ensure proper operation, this module shall be connected to a compatible Fire•Lite system control panel (list available from
Fire•Lite).

Mounting

Mounts directly to 4" square electrical boxes (see Figure 2A). The box must have a minimum depth of 2 1 /8". Surface mounted elec-
trical boxes (SMB500) are available from Fire•Lite.

Wiring

NOTE: All wiring must conform to applicable local codes, ordinances, and regula-
tions. This module is intended for power limited wiring only.
1. Install module wiring in accordance with the job drawings and appropriate wir-
ing diagrams.
2. Set the address on the module per job drawings.
Note: Some panels support extended addressing. In order to set the module
above address 99 on compatible systems, carefully remove the stop on the
upper rotary switch with thumb in the direction shown in Figure 1.
Note: Monitor module L (using terminals 6 and 7) responds at the address set
on the code switches. Monitor module H (using terminals 8 and 9) will automati-
cally respond at the next higher address. For example, if the code switches are
set to 76, module L will respond at address 76 and module H will respond at ad-
dress 77. Use caution to avoid duplicate addressing of modules on the system.
3. Secure module to electrical box (supplied by installer), as shown in Figure 2A.

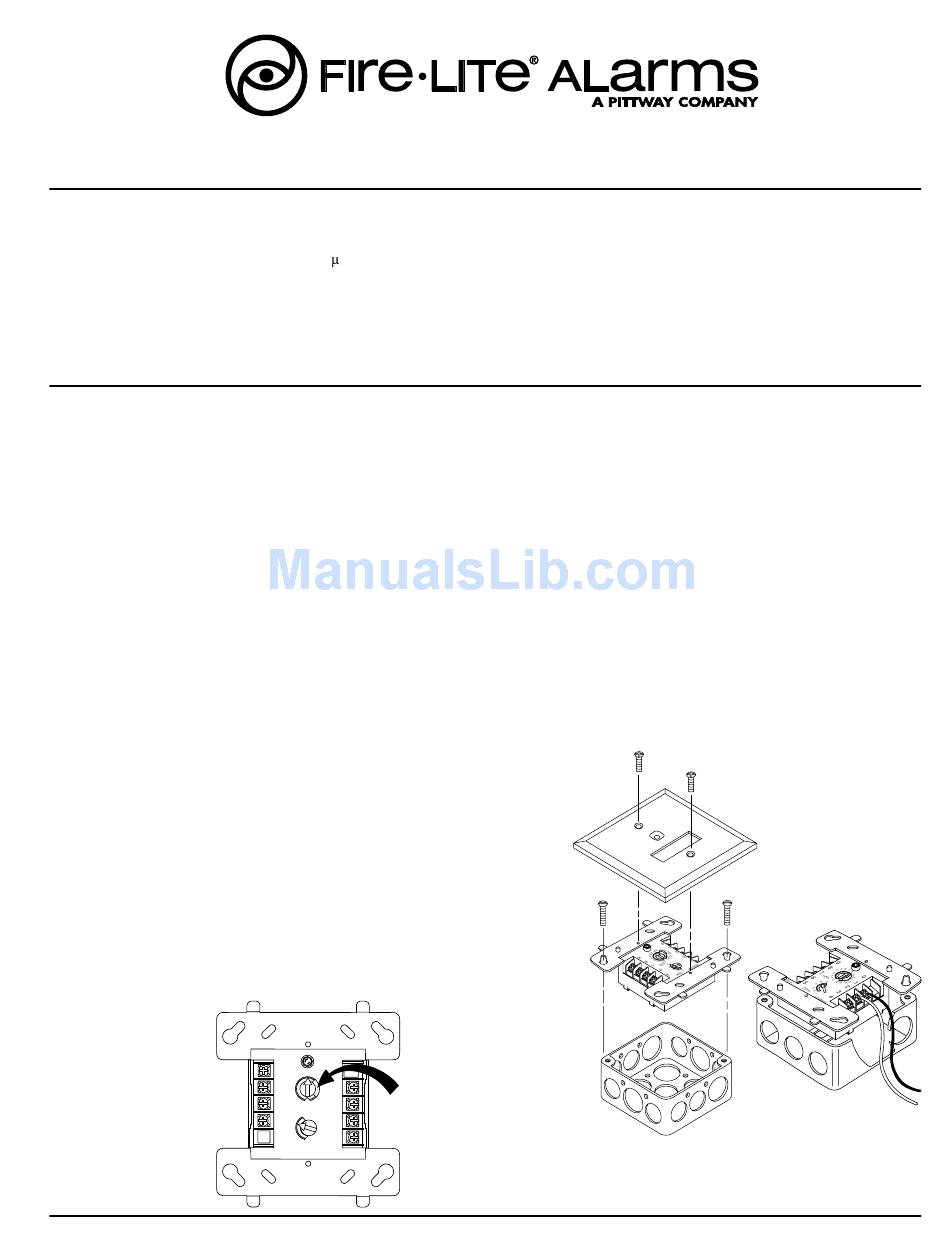

Figure 1. Removing
Rotary Switch Stop:
F300-09-00
MDF-300 Dual Monitor Module

Installation Instructions

15 to 32 VDC
5.7 mA (LED on)
750 A (LED flashing)
47K Ohms
1,500 Ohms
32˚F to 120˚F (0˚C to 49˚C)
10% to 93% Noncondensing
1 1
4 / " H x 4"W x 1 / " D (Mounts to a 4" square by 2
2 4
SMB500 Electrical Box
9 0
7 8
6 9
5 10
8 4 11
1
3 12
13
2
7 2
1 14
0 15
TENS
8
6 3
6
4
5 4
2
0
ONES
ADDRESS
LOOP
A78-2318-13
Fire•Lite Alarms, Inc., One Fire-Lite Place., Northford, CT 06472-1653, (203)484-7161
1
/ " deep box.)
8
Figure 2A. Module mounting:
1
Figure 2B:
A78-2610-14
I56-0013-01R
A78-2611-19
