Fire-Lite ADM-12 Manual

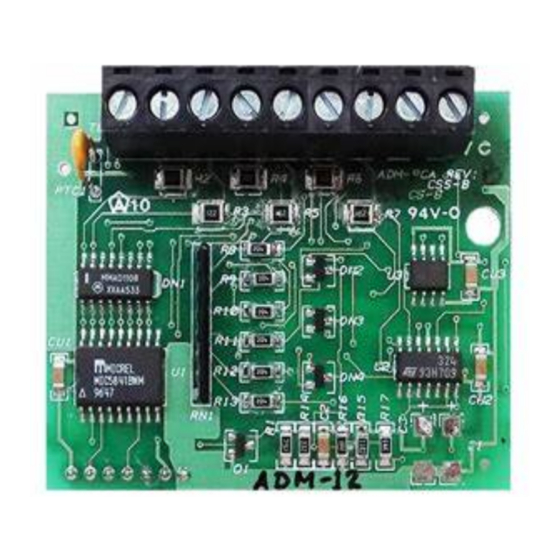

ADM-12 Annunciator Driver Module:
2) Hold the ADM-12 upright over the
upper right-hand corner of the
motherboard.
3) Begin inserting the free end of nylon spacer
into hole at upper right-hand corner of
motherboard (to the left of the mounting
screw) while carefully aligning the board's
female connector over pin header J3. Press
down on the board until the spacer and
connector snap into place.
4) Use the diagram below to connect
wiring from an RZA-5F Remote
Annunciator to the ADM-12.
12 Clintonville Road, Northford, CT 06472
Technical Manuals Online! - http://www.tech-man.com
To Install the
1) Insert the short end of the
nylon spacer through the
back of the ADM-12 as
illustrated.
(203) 484-7161 FAX: (203) 484-7118
firealarmresources.com
ADM-12
Annunciator Driver Module

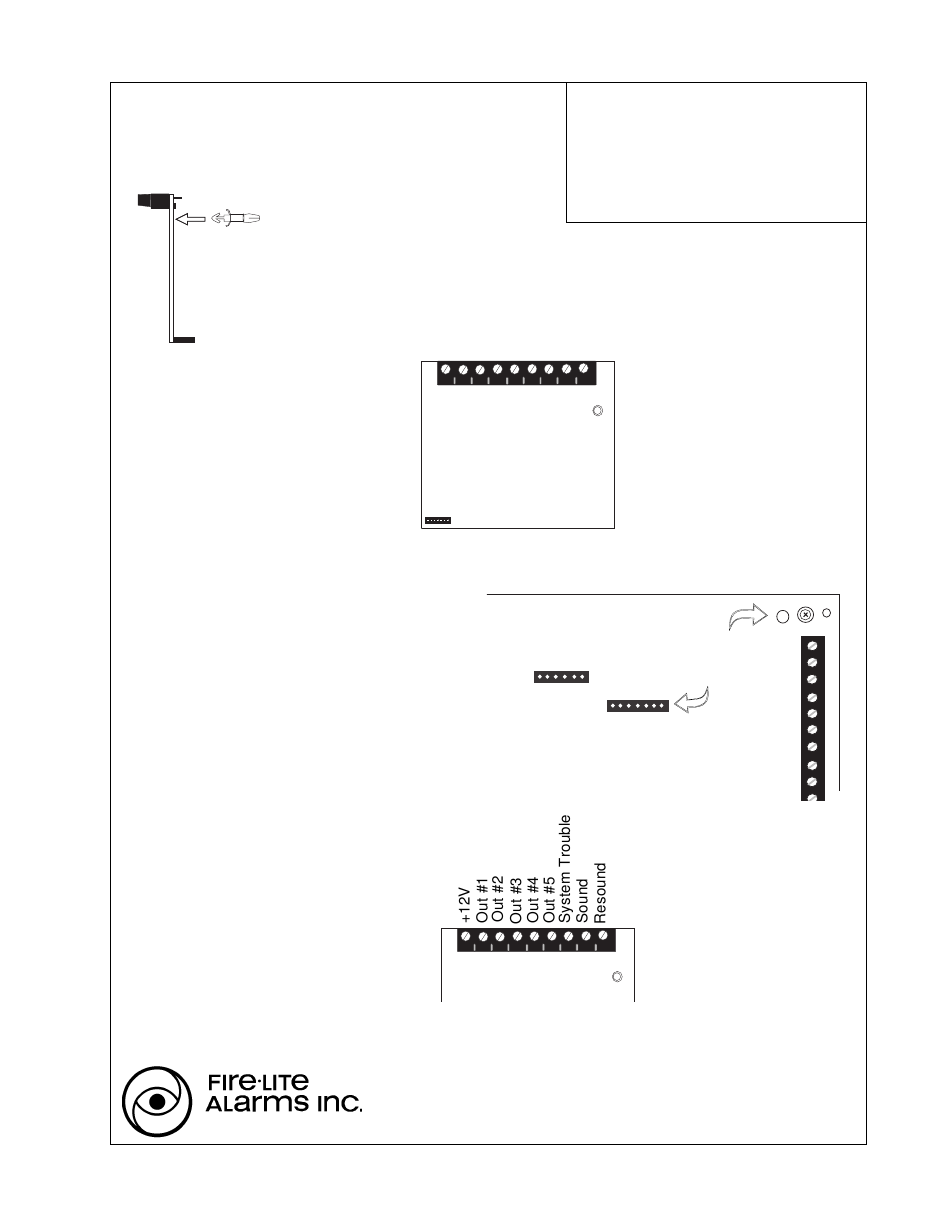

Product Installation Drawing
Document 15634, Rev A
1/6/93 ECN 93-06
Insert spacer in hole,
while lining up pin
connections at J3
J2
J3
TB2
1
2
3
4
5
6
7
8
9
10
