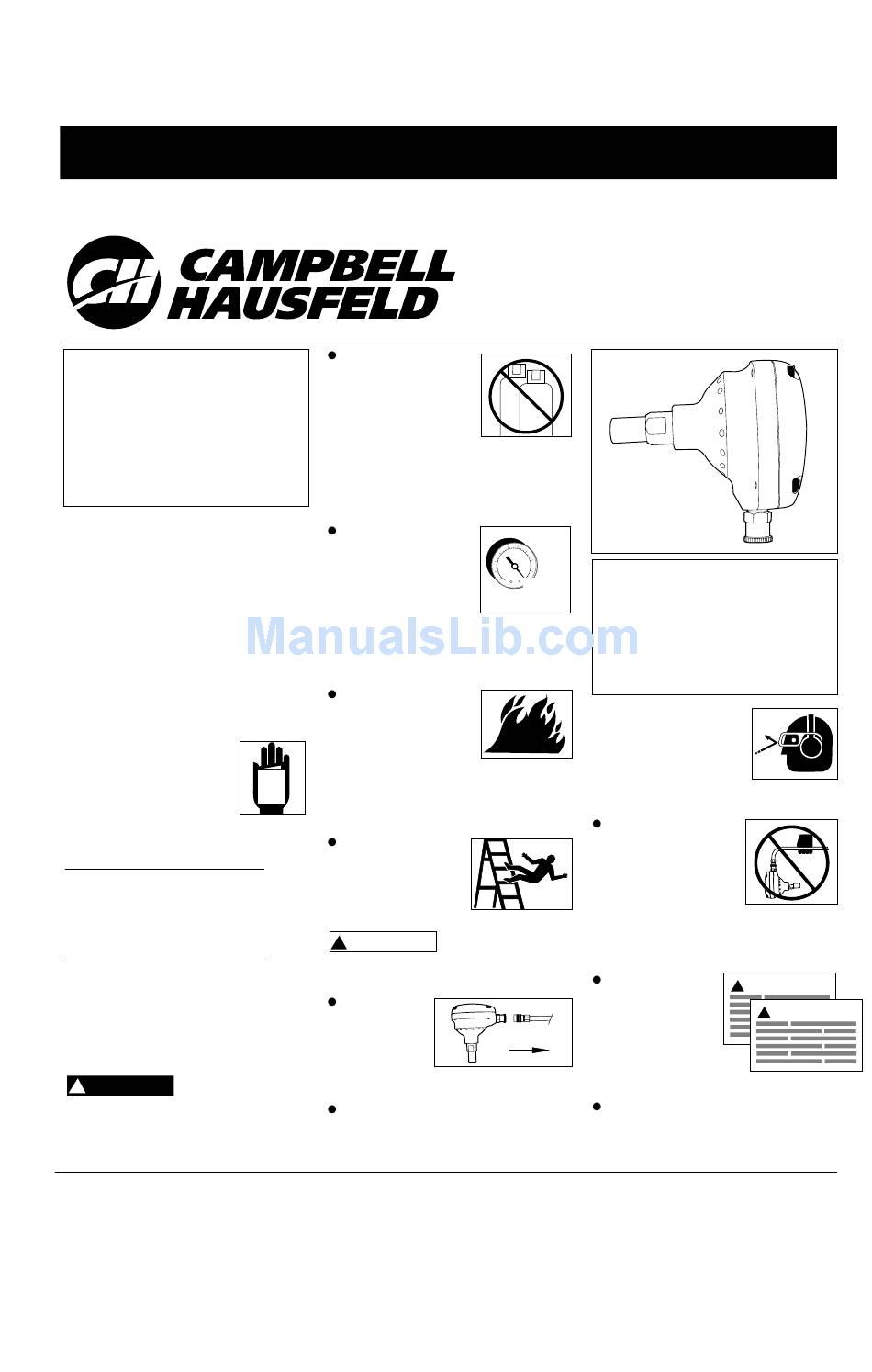

Campbell Hausfeld PN0090 Operating Instructions

Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or prop-
erty damage! Retain instructions for future reference.
BUILT TO LAST
Table Of Contents
General Safety . . . . . . . . . 1 - 2
Specifications . . . . . . . . . . . . . 2
Operating The Nailer . . . .2 - 3
Troubleshooting . . . . . . . . . . 4
Warranty . . . . . . . . . . . . . . . . 4
Description
This nailer is designed for framing,
decking, joist hanger installation, cross
bridging, and fencing. Features include
a padded leather cover for user com-
fort, an offset magnetic nose for easy
fastener placement, and a compact
design for working in tight applica-
tions.
General Safety Information
This manual contains safety, opera-
tional and maintenance information.
Read this manual and
understand all safety warn-
ings and instructions before
operating the nailer.
Contact your Campbell
Hausfeld representative if you have
any questions.
OPERATOR'S RESPONSIBILITY:
Before operating the nailer, read and
understand all safety warnings and
labels. Follow the operating instruc-
tions outlined in this manual.
EMPLOYER'S RESPONSIBILITY:
Distribute this instruction manual to all
users before allowing use of the nailer.
Ensure all operators read, understand
and follow all safety warnings, labels
and instructions outlined in this
manual.
Danger indicates
DANGER
!
an imminently haz-
ardous situation which, if not avoided,
WILL result in death or serious injury.
Campbell Hausfeld Nailers meet or exceed Industries' Standards as set forth by the American National
Standard Institute/International Staple, Nail and Tool Association in ANSI/ISANTA SNT-101-1993.
© 2001 Campbell Hausfeld
Do not use any type
of flammable gases
or oxygen as a power
source for the nailer.
Use filtered, lub-
ricated, regulated
compressed air only. Use of a com-
pressed gas instead of compressed
air may cause the nailer to explode
which will cause death or serious
personal injury.
Do not exceed maxi-
mum operating pres-
sure of the nailer
(125 psi). The nailer
will not function
properly. Do not use
a compressed air source capable of
more than 200 PSI. The nailer could
explode which will cause death or
serious personal injury.
Never use gasoline
or other flammable
liquids to clean the
nailer. Never use the
nailer in the presence
of flammable liquids or gases.
Vapors could ignite by a spark and
MANUAL
cause an explosion which will result
in death or serious personal injury.
Always remain in
a firmly balanced
position when
using or handling
the nailer.
WARNING
!
ardous situation which, if not avoided,
COULD result in death or serious injury.
Always
disconnect
nailer from
air line
before
adjusting or servicing the nailer, or
when the nailer is not in use.
Protect your eyes and ears. Wear
Z87 safety glasses, with side shields.
Wear hearing protection. Employers
TM
O
CO
2
125 psi
MAX.
Warning indicates
a potentially haz-
Model PN0090
Air Palm
Hammer
Model PN0090
Locate model and serial number on
tool and record below:
Model No. ________________________
Serial No. _________________________
Retain these numbers for
future reference.
and users are respon-
sible for ensuring the
user or anyone near
the nailer wears this
safety protection.
Serious eye injury or permanent
hearing loss could result.
Never carry the nailer
by the air hose or
pull the hose to
move the nailer or a
compressor. Keep
hoses away from
heat, oil and sharp edges. Replace
any hose that is damaged, weak or
worn. Personal injury or tool dam-
age could occur.
Do not operate or
WARNING
!
allow anyone else
to operate the
!
nailer if any warn-
ings or warning
labels are not legible.
Warnings or warning
labels are located on the nailer body.
Do not drop or throw the tool.
Dropping or throwing the tool can
result in damage that will make the
tool unusable or unsafe. If the tool
IN268801AV 6/01
WARNING
