Assembly Instructions
and Parts List
Please read and save these instructions. Read carefully before attempt-
ing to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure
to comply with instructions could result in personal injury and/or proper-
ty damage! Retain instructions for future reference.
BUILT TO LAST
Operation
CAUTION
!
switch is turned off.

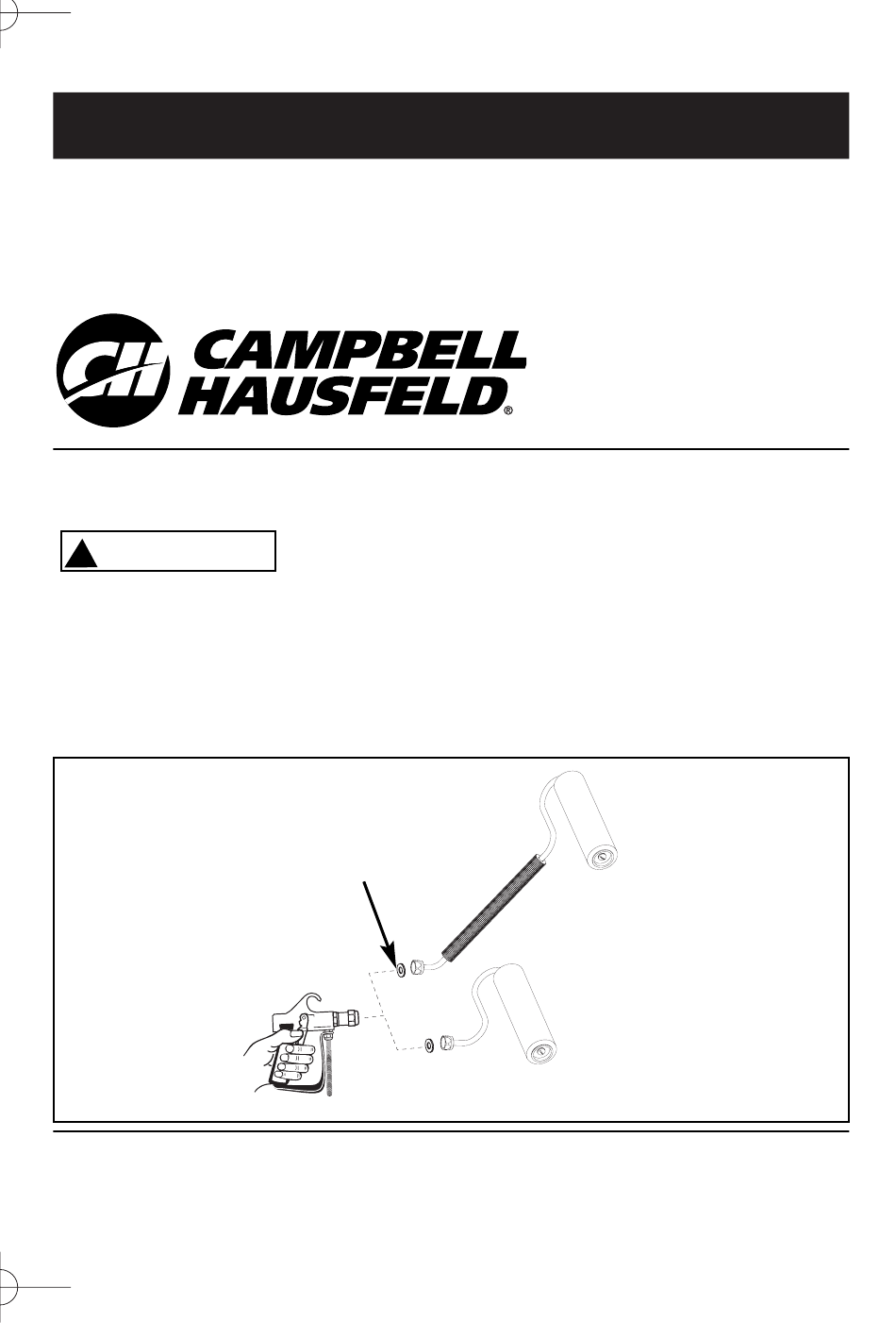

ROLLER ATTACHMENT
1. Remove spray tip from the gun.
2. Place sealing washer in the roller attachment fitting.
Figure 1
© 2002 Campbell Hausfeld/Scott Fetzer
Do not remove spray tip to attach roller
until all pressure is released and sprayer
Sealing Washer
For parts, product & service information
visit www.chpower.com
AL2270 and
Paint
Rollers
IN453401AV 11/02
AL2275
Advertisement
Related Manuals for Campbell Hausfeld AL2270
Summary of Contents for Campbell Hausfeld AL2270
- Page 1 ROLLER ATTACHMENT 1. Remove spray tip from the gun. 2. Place sealing washer in the roller attachment fitting. Sealing Washer Figure 1 © 2002 Campbell Hausfeld/Scott Fetzer IN453401AV 11/02 For parts, product & service information visit www.chpower.com...
-
Page 2: Pressure Adjustment
453401 1102 11/12/02 3:02 PM Page 2 Operation (Continued) 3. Connect roller to gun and position at desired angle. Tighten with wrench. PRESSURE ADJUSTMENT 1. For units with a single prime/pressure control, turn the control knob approximately one turn from the prime position. - Page 3 Maintenance (Continued) 2. Remove parts from frame and clean separately. Hot, soapy water is best for cleaning if latex paint was used. 3. With frame still attached to spray gun, place the end of the frame into an empty bucket to flush residual paint (See fig- ure 3).
- Page 4 453401 1102 11/12/02 3:02 PM Page 4 For Replacement Parts and Accessories, Contact Your Local Service Center or Call 1-800-626-4401 2 - Model AL227550SV 1 - Model AL227050SV www.chpower.com...
- Page 5 Please provide the following information: - Model number - Serial number - Part description and number as shown in parts list Address parts correspondence: The Campbell Group Attn: Parts Department 100 Production Drive Harrison, OH 45030 Ref. No. Description Part No. Qty.
- Page 6 BRANCHEMENT DU ROULEAU 1. Enlever la buse de pulvérisation du pistolet. 2. Placer la rondelle de garniture dans le raccord de branche- ment du rouleau. Rondelle de Garniture Figure 1 © 2002 Campbell Hausfeld/Scott Fetzer IN453401AV 11/02...
- Page 7 Fonctionnement (Suite) 3. Brancher le rouleau au pistolet et le positionner à l’angle désiré. Serrer avec une clé. RÉGLAGE DE PRESSION 1. Pour les modèles à commande unique d’amorçage/pression (prime/pressure), tourner le bouton de réglage approxima- tivement un tour de la positon prime (amorçage). IMPORTANT: Le roulage exige très peu de pression.
- Page 8 453401 1102 11/12/02 3:02 PM Page 8 Entretien (Suite) 2. Enlever les pièces du bâti et les nettoyer séparément. Utiliser de l’eau chaude et savonneuse pour la peinture latex. 3. Avec le bâti branché au pistolet, placer le bout du bâti dans un seau vide afin de purger la peinture (Voir figure 3).
- Page 9 Pour les Pièces de Rechange et Accessoires, Contacter Votre Centre De Service ou Appeler 1-800-626-4401 2 - Modele AL227550SV 1 - Modele AL227050SV...
- Page 10 453401 1102 11/12/02 3:02 PM Page 10 S’il vous plaît fournir l’information suivante: - Numéro de modèle - Numéro de série - Numéro et description de la pièce Correspondance: The Campbell Group Attn: Parts Department 100 Production Drive Harrison, OH 45030 Réf.
- Page 11 PARA CONECTAR EL RODILLO 1. Quítele la boquilla a la pistola. 2. Colóquele la arandela al conector del rodillo. Arandela Figura 1 © 2002 Campbell Hausfeld/Scott Fetzer IN453401AV 11/02...
-
Page 12: Mantenimiento
453401 1102 11/12/02 3:02 PM Page 12 Funcionamiento (Continuación) 3. Conecte el rodillo a la pistola y colóquelo en el ángulo desea- do. Apriételo con una llave. PARA AJUSTAR LA PRESION 1. En las unidades que sólo tienen una perilla para controlar la presión y cebar la unidad, gire la perilla aproximadamente una vuelta hasta la posición marcada “prime”... - Page 13 Forro Rodillo Soportes Figura 2 Introduzca el extremo en el cubo Figura 3 5. Oprima el gatillo hasta que el rodillo expulse agua pura (sin residuos de pintura). 6. Desconecte la armazón del rodillo de la pistola y déjela drenar.
- Page 14 453401 1102 11/12/02 3:02 PM Page 14 Para Ordenar Repuestos, Comuníquese con el Distribuidor de Productos Campbell Hausfeld más cercano a su Domicilio. 2 - Model o AL227550SV 1 - Modelo AL227050SV...
- Page 15 Sírvase suministrarnos la siguiente información: -Número del modelo -Número de serie (de haberlo) -Descripción del repuesto según la lista de repuestos Puede escribirnos a: The Campbell Group Attn: Parts Department 100 Production Drive Harrison, OH 45030 No. de Ref. Descripción No.
