Summary of Contents for Baxi Combi 80 Eco

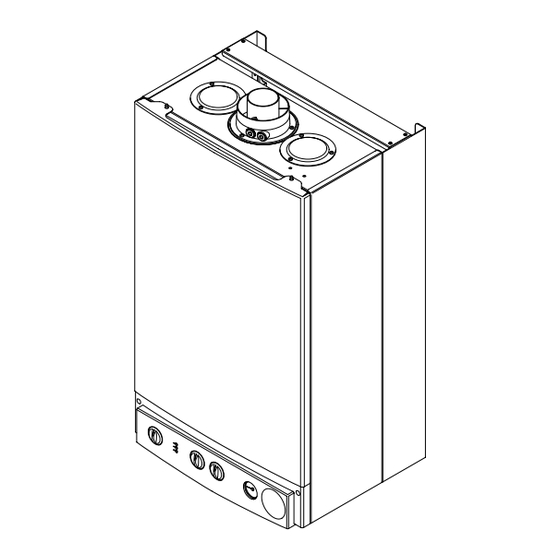

- Page 1 Please keep these instructions safe. Should you move house, please hand them over to the next occupier. Baxi Combi 80Eco Gas Fired Wall Mounted Combination Boiler User’s Operating Instructions...
-
Page 2: Natural Gas
Type test for purpose of Regulation 5 certified by: Notified Body 0051. We hope you get a satisfactory service from Baxi. If Product/Production certified by: not, please let us know. Notified Body 0051. -
Page 3: This Appliance Must Be Earthed
If a water or gas leak occurs or is suspected, the boiler can be appliance without the express written permission of Baxi UK Limited could invalidate isolated at the inlet valves as follows; the appliance warranty and infringe the G 1. -
Page 4: Operating The Boiler
2.0 Operating the Boiler Introduction 1. Your Baxi Combi 80Eco is a gas fired, room sealed, powered flue combination boiler, providing central heating for your home and mains fed domestic hot water to taps and shower. It is fully automatic and does not have a pilot light. - Page 5 Fig. 9 Domestic Hot Water Temperature Control Safety Thermostat 1. Your Baxi Combi 80Eco is fitted with an additional safety device, which shuts down the boiler in the event of the system or the boiler overheating. 2. If the device operates, the boiler will shut down.
- Page 6 2.0 Operating the Boiler Pressure Gauge Central Heating System Pressure 1. The water pressure in the central heating system is indicated by the pressure gauge. 2. With the system cold and the boiler not Fig. 12 operating the pressure should be between 0.5 Normal Pressure (when cold) and 1.0 bar.
- Page 7 3.0 Clearances and Check List 450mm 5mm Min 5mm Min Clearances around the Boiler (Figs. 17 & 18) 5mm both sides recommended for 1. The minimum clear spaces needed around ease of installation 200mm Min the boiler measured from the casing are as and service.
- Page 8 (Fig 19). Information Label Guarantee 1. Your Baxi Combi 80Eco is designed and produced to meet all the relevant Standards. 2. Baxi UK Limited provide a 12 month guarantee on the boiler. The guarantee operates from the date installation is completed for the customer who is the original user.
- Page 9 5.0 Notes...
- Page 10 5.0 Notes...
- Page 11 Baxi UK Limited manufacture a comprehensive range of products for the domestic heating market. Gas Central Heating Boilers (Wall, Floor and Fireside models). Independent Gas Fires. Renewal Firefronts. Gas Wall Heaters. Solid Fuel Fires. If you require information on any of these products,...
-
Page 12: After Sales Service
Comp N 247937 - Iss 3 - 6/01 After Sales Service 08706 096 096 Baxi UK Limited Brownedge Road Bamber Bridge Preston Lancashire PR5 6SN www.baxi.com 921.647.1...
Need help?
Do you have a question about the Combi 80 Eco and is the answer not in the manual?
Questions and answers
a first switching on the ignition lights up runs for 5 to 10 seconds and switches off then starts up straight away and continues like this for quite some time before running continuously, i noticed when you run the hot tap boiler runs continuously until you turn off the tap then its on and off, my boiler is a baxi eco 80 and quite old but been a good one.
A possible cause of the Baxi Combi 80 Eco boiler igniting for a few seconds and then shutting off repeatedly before running continuously could be an issue with the system bypass or water treatment. The boiler is fitted with an automatic integral bypass, and failure to properly flush and add an inhibitor to the system can lead to problems. Inadequate inhibitor concentration, system airlocks, or debris in the system could cause unstable operation. Additionally, if the system is not fully pumped or if there is an issue with the gas supply or ignition components, the boiler may struggle to maintain ignition. Checking the inhibitor concentration, ensuring proper system flushing, and verifying gas supply and ignition components may help resolve the issue.
This answer is automatically generated
I have turned off the electric while I was abroad and after returning I have turned on electricity but boiler not firing.
The Baxi Combi 80 Eco boiler is not firing after turning the electricity back on because, although the pump engages, there is no ignition of the gas. Possible causes include a faulty microswitch, an issue with the diverter valve not activating the switches, or a tripped safety thermostat that requires a service engineer to reset.
This answer is automatically generated
