User's Manual

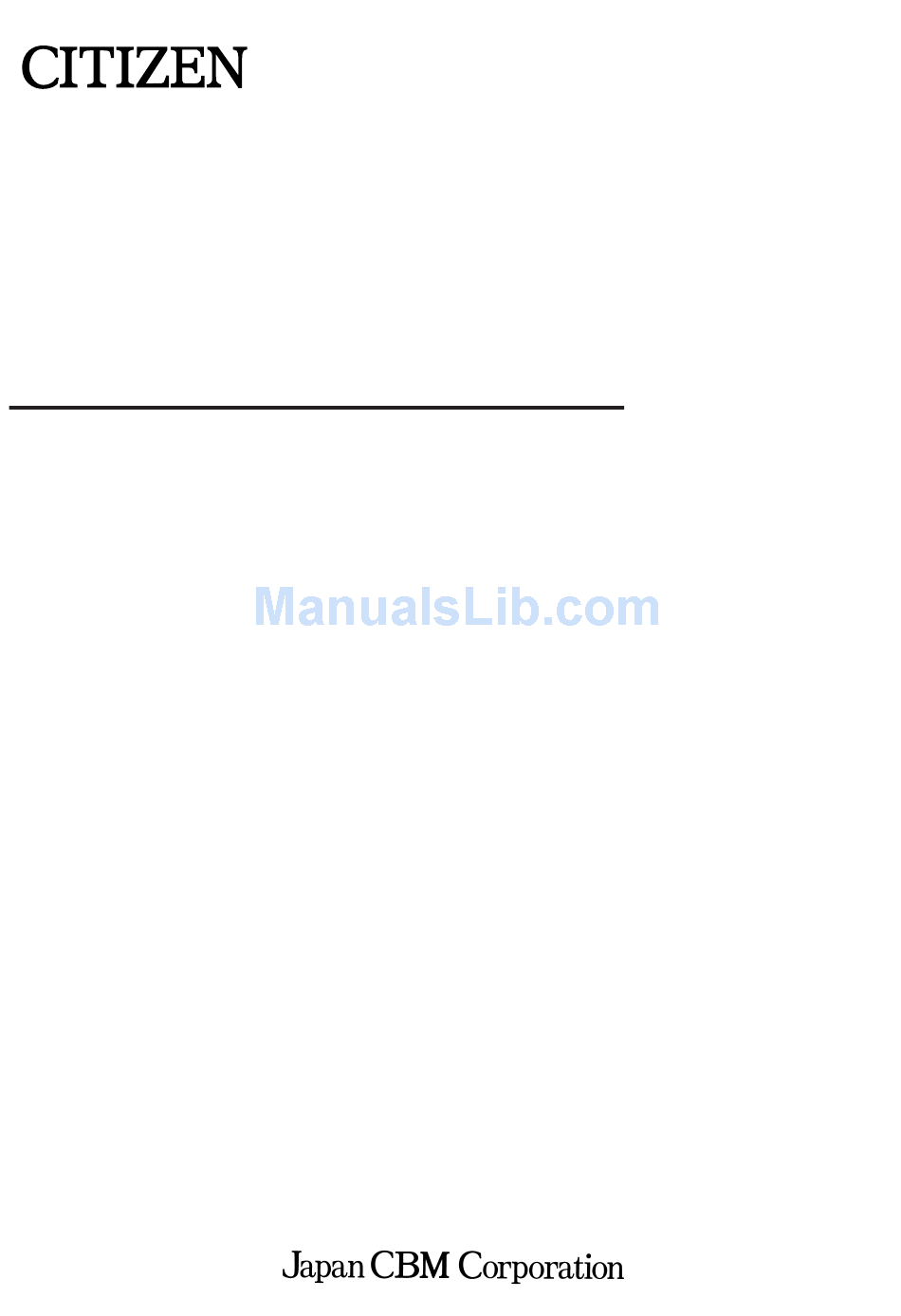

CONTROL BOARD FOR LT-122x/132x
BD2-1220/1221
MODEL
Rev. 02 Newly issued Jun. 10th, 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD2-1220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citizen BD2-1220

Summary of Contents for Citizen BD2-1220

  • Page 1 User’s Manual CONTROL BOARD FOR LT-122x/132x BD2-1220/1221 MODEL Rev. 02 Newly issued Jun. 10th, 2001...
  • Page 2 REVISION Rev.No. Date Content Rev.02 Jun. 10th, 2001 Newly issued...
  • Page 3 GENERAL PRECAUTIONS Prior to using the Control Board BD2-1220/1221, be sure to read this User’s Manual thoroughly. Please keep it handy so that you can refer to it whenever necessary. 1. The information contained herein may be changed without prior notice. 2.
  • Page 4 WARNING Never handle the Control Board BD2-1220/1221 in the manners descried below; otherwise, it may be damaged, get out of order or overheated, possibly causing smoke, fire or electric shock. If the control board is damaged or breaks down, be sure to turn off the power, disconnect the power plug from the wall outlet, and contact your CBM dealer.
  • Page 5 PRECAUTIONS FOR HANDLING Observe the following precautions to use the Control Board BD2-1220/1221 correctly and avoid troubles from occurring. • Use only the rated supply voltage specified for this product. • Exercise care not to drop any metallic foreign object onto this product. •...

  • Page 6: Table Of Contents

    THE TABLE OF CONTENTS 1. GENERAL OUTLINE ........................1 1.1 Features ..................................1 1.2 Before using ................................1 2. BASIC SPECIFICATIONS ........................ 2 2.1 Model Classification ..............................2 2.2 Basic Specifications ..............................3 2.3 Print Paper Specifications ............................4 2.4 Thermal Print Head and Peripheral Devices ......................4 3.
  • Page 7 6.5 Data Reception Control ............................15 6.6 Buffering ................................. 15 6.7 Connections to Parallel Port ........................... 16 7. SERIAL INTERFACE ........................17 7.1 Specifications ................................. 17 7.2 Description of Input and Output Signals ........................ 18 7.3 Electrical Characteristics ............................18 7.4 Data Structure .................................

  • Page 8: General Outline

    BD2-1220/1221 User’s Manual 1. GENERAL OUTLINE The BD2-1220/1221 Control Board is designed to operate the LT-1220/21 or LT-1320/21 Thermal Print Mechanism from a PC. It incorporates maximum versatility that makes it applicable to diverse purposes. Before using this product for the first time, read the instructions throughout this manual. 1.1 Features (1) Ultra-compact design.

  • Page 9: Basic Specifications

    BD2-1220/1221 User’s Manual 2. BASIC SPECIFICATIONS 2.1 Model Classification The control board models are classified by the following designation method: BD2 - 122 0 U Character Set U : International model Compatible printing mechanism: 0: LT-1220/1320 1: LT-1221/1321 Model Name The control board has the following model identification: Letter “U”...

  • Page 10: Basic Specifications

    BD2-1220/1221 User’s Manual 2.2 Basic Specifications Model BD2-122xU Item Print method Line thermal dot print method Paper width/printable LT-122x: Paper width: 58mm Printable area width: 54mm area width LT-132x: Paper width: 80mm Printable area width: 72mm LT-122x: 432 dots/lines Total number of dots LT-132x: 576 dots/lines Dot density 8 dots/mm...

  • Page 11: Print Paper Specifications

    BD2-1220/1221 User’s Manual 2.3 Print Paper Specifications Use the recommended thermal papers listed below: TF50KS-E2D (normal paper) from Nippon Paper F230AA (normal paper) from Mitsubishi Paper or equivalent * Paper thickness depends on the thermal head models. * If an unspecified thermal paper is used, print tone may vary from the standard print tone. * To preserve printed information for extended time period, carefully control temperature, humidity, and other storage conditions.

  • Page 12: Interconnection

    BD2-1220/1221 User’s Manual 3. INTERCONNECTION 3.1 Interface Connector (CN1) 3.1.1 Pin Description Pin No. Signal Name Input/Output Function 1, 2 — Logic power supply (+5 V) 3, 4 — Logic ground 5~10 — Driver power supply (+24 V) 11~16 P-GND —...

  • Page 13: Example Of Power Connections

    BD2-1220/1221 User’s Manual 3.1.2 Example of Power Connections * For the serial and parallel interface connections, see the sections dedicated to the respective interface. AC100 ~ 1, 2 240V 3, 4 Regulated DC +24V +24V power supply P-GND 11 ~ LF SW Supply GND or 1000pF...

  • Page 14: Print Head Interface Connector (Cn2)

    BD2-1220/1221 User’s Manual 3.2 Print Head Interface Connector (CN2) 3.2.1 Pin Description Signal Name Pin No. Input/Output Function LT-122x LT-132x — Thermal head power supply Input Serial print data input Output Data transfer clock Output Print data latch signal N. C STB 2 —...

  • Page 15: Head-Up And Paper End Sensor Connectors (Cn3 & Cn7)

    BD2-1220/1221 User’s Manual 3.3 Head-Up and Paper End Sensor Connectors (CN3 & CN7) Pin No. Sensor Signal Name Input/Output Function LT-1x20 LT-1x21 CN3-1 — Head-up HU-A Output CN3-2 CN7-1 sensor — CN3-3 CN7-2 HU-C Input Head-Up signal input CN3-4 CN3-4 Paper PE-C Output CN3-5...

  • Page 16: Paper Near-End Sensor Connector (Cn6) *Option

    BD2-1220/1221 User’s Manual 3.6 Paper Near-End Sensor Connector (CN6) * Option 3.6.1 Pin Description Pin No. Signal Name Input/Output Function PNE-A Output Photointerruptor’s anode PNE-C Input Photointerruptor’s collector — Photointerruptor’s cathode and emitter Connectors: 5267-03A-X (Molex) By default, pin 2 is tied to pin 3 with jumper J11 to deactivate the paper sensor (paper always remains).

  • Page 17: Configuring The Control Board Functions

    BD2-1220/1221 User’s Manual 4. CONFIGURING THE CONTROL BOARD FUNCTIONS Some of the control board functions can be configured with DIP switches and/or jumpers. 4.1 DIP switches Function Factory setting Auto cutter Available Not available CR mode LF Operation Ignored Print density See Table (1).

  • Page 18: Preset Jumper

    BD2-1220/1221 User’s Manual (3) Code Page Code Page PC437 (USA, EU Standard) Short Short Short Short Katakana (Japanese) Open Short Short Short PC850 (Multilingual) Short Open Short Short PC860 (Portuguese) Open Open Short Short PC863 (Canadian-French) Short Short Open Short PC865 (Nordic) Open Short...

  • Page 19: Power Supply

    BD2-1220/1221 User’s Manual 5. POWER SUPPLY 5.1 Specifications Vdd: 5 VDC ±5%, approx. 200 mA Vp: 24 VDC ±10%, approx. 0.7 A on average (approx. 6 A peak) The data above is at 25°c and normal humidity. AC is at 12.5% print area and 24 VDC. It varies with printing condition, operating environment, operating condition, and some other factors.

  • Page 20: Parallel Interface

    BD2-1220/1221 User’s Manual 6. PARALLEL INTERFACE 6.1 Specifications Data transfer method: 8-bit parallel Synchronizing method:Controlled by nStrobe signal externally supplied Handshaking: Handled by nAck and Busy signals Signal level: All signals are TTL compatible Other control signals: PE, nFAULT, SELECT * Bidirectional Parallel Interface (IEEE1284) The control board supports the bidirectional parallel interface (IEEE-1284).

  • Page 21: Description Of Input And Output Signals

    BD2-1220/1221 User’s Manual 6.2 Description of Input and Output signals 6.2.1 Input signals • DATA 0~7: An 8-bit parallel signal. (Active “High”) • nSTROBE: A strobe signal to help read 8-bit data. (Active “Low”) • nRESET: Resets the control board (active “Low”). 6.2.2 Output signals •...

  • Page 22: Timing Chart (Compatibility Mode)

    BD2-1220/1221 User’s Manual 6.4 Timing Chart (Compatibility Mode) Data input and print timing POWER DATA BUSY T1, T2, T3 : 0.5 s MIN : 270 ns MAX : 2.3 s TYP :500 ms MIN (At power-on) 6.5 Data Reception Control When the Busy signal is at “LOW”, the control board can receive data from the host computer, but when at “HIGH”, data reception is not possible.

  • Page 23: Connections To Parallel Port

    BD2-1220/1221 User’s Manual 6.7 Connections to Parallel Port (1) Connections to 36-pin/25-pin parallel port 36-pin parallel interface 25-pin parallel interface DATA0 DATA0 DATA1 DATA1 DATA2 DATA2 DATA3 DATA3 DATA4 DATA4 DATA5 DATA5 DATA6 DATA6 DATA7 DATA7 nSTROBE nSTROBE BUSY BUSY nFAULT nFAULT SELECT...

  • Page 24: Serial Interface

    BD2-1220/1221 User’s Manual 7. SERIAL INTERFACE 7.1 Specifications (1) Synchronizing system: Asynchronous (2) Baud rate 4800, 9600, 19200, 38400bps (User selectable) (3) Configuration of one word Start bit: 1-bit Data bits: 8-bits (fixed length) Parity bit: Odd, even, or none (User selectable) Stop bit: 1-bit or more (4) Signal polarity...

  • Page 25: Description Of Input And Output Signals

    BD2-1220/1221 User’s Manual 7.2 Description of Input and Output Signals (1) RD This is a serial reception data signal. When a framing error, overrun error or parity error occurs, the data containing the error is printed as a “?”. (2) DTR When this signal is Ready, you can write data or commands into the input buffer.

  • Page 26: Data Structure

    BD2-1220/1221 User’s Manual 7.4 Data Structure Mark h0, h1, h2 Space Start bit Data bits (+ parity bit) Stop bit (1) Start bit Status is read again 1/2 bit after a negative transition from Mark to Space. If the status is at Space, it is recognized as a Start bit.

  • Page 27: Data Reception Control

    BD2-1220/1221 User’s Manual 7.6 Data Reception Control When the DTR/DSR control mode is selected, host data can be received if the DTR signal is at Space, while it is not receivable if the signal is at Mark. When the DTR/DSR control mode is deselected, host data can be received after XON is transmitted, while it is not receivable after XOFF is transmitted.

  • Page 28: Error Handling

    BD2-1220/1221 User’s Manual 8. ERROR HANDLING This section describes some typical errors that could be detected on the control board at power on (initialization) or during printer operation. Error status can be known from the nERROR and nPEOUT signals. (The following describes errors that are identified by LED lights.) In the event of an error, the BUSY (DTR), PE, FAULT, SELECT, or some other signals may be activated as well as the ERROR and/or PEOUT signals described in the following table.

  • Page 29: Error Details

    BD2-1220/1221 User’s Manual 8.2 Error Details Memory Check Error: Activated if an error is detected at power on. Head Up: Activated if the print head is raised with the Head-Up lever. The printer stops printing and generates an ERROR signal. Head Overheat: Activated if the print head temperature exceeds approx.

  • Page 30: Special Functions

    BD2-1220/1221 User’s Manual 9. SPECIAL FUNCTIONS In addition to the standard print function, the control board has some special print features such as the Page Print, Test Printing, and Hexadecimal Dump capabilities. Also it allows for software revision and registration of user-defined fonts and logos.

  • Page 31: Software Revision

    BD2-1220/1221 User’s Manual 9.4 Software Revision The control board retains control software in its flash memory. Software revision can only be performed with a flash memory loader. For more details, read the User’s Manual supplied with the Flash Memory Loader. Caution: The update software is overwritten on the existing software.

  • Page 32: Print Control Commands

    BD2-1220/1221 User’s Manual 10. PRINT CONTROL COMMANDS This section provides lists of print control commands that are used for setting and controlling the printer from the control board. For more details of print control commands, refer to the Command Reference Manual. Print Commands Command Function...

  • Page 33: Print Position Commands

    BD2-1220/1221 User’s Manual Print Position Commands Command Function Mode Code Horizontal tab S, P ESC $ Specifying the absolute positions S, P 1Bh, 24h, n1, n2 ESC D Setting horizontal tab position S, P 1Bh, 44h, [n]k, 00h ESC T Selecting the character printing direction in 1Bh, 54h, n PAGE MODE...
  • Page 34 BD2-1220/1221 User’s Manual Panel Switch Command Command Function Mode Code ESC c 5 Making LF-SW signal valid/invalid S, P 1Bh, 63h 35h, n Macro Commands Command Function Mode Code GS : Starting/Ending macro definition S, P 1Dh, 3Ah GS ^ Executing the macro S, P 1Dh, 5Eh, n1, n2, n3...
  • Page 35 BD2-1220/1221 User’s Manual Other Commands Command Function Mode Code DLE ENQ Real-time request to printer S, P 10h, 05h, n ESC = Data input control S, P 1Bh, 3Dh, n ESC @ Initializing the printer S, P 1Bh, 40h ESC L Selecting PAGE MODE 1Bh, 4Ch ESC S...

  • Page 36: Block Diagram

    BD2-1220/1221 User’s Manual 11. BLOCK DIAGRAM Flash Memory 20.0MHz Auto Driver Cutter Gate Array Paper DIP-SW Near JUMPER Sensor Driver Timing Driver Reset Paper End LF-SW, ERROR, PEOUT Sensor Stepping Parallel Interface Motor (Centronics Compliant) Head up Sensor Serial Interface (RS-232C Compliant) Power Source (DC5V, DC24V)

  • Page 37: Outline Drawings For Control Board

    BD2-1220/1221 User’s Manual 12. OUTLINE DRAWINGS FOR CONTROL BOARD Unit (mm) R1.6 80.5 2-ø3.2 R1.6 BD2-...
  • Page 38 BD2-1220/1221 User’s Manual APPENDIX 1. DESCRIPTION OF PAGE MODE The control board has two print modes: STANDARD and PAGE. In STANDARD MODE, the control board prints or feeds paper each time it receives a print or paper feed command. In PAGE MODE, when the control board receives print commands and/or form feed commands, it simply forwards them to the specified print area of memory.
  • Page 39 BD2-1220/1221 User’s Manual Print data is mapped in the print area as follows: (1) The print area is set by ESC+W. When the control board has finished all of the print and paper feed actions specified before receiving an ESC+W, the ESC+W sets the left end (As viewed facing the control board) as the start point (x0, y0) of the print area.

  • Page 40: Appendix 2. Identification Of Send Status

    BD2-1220/1221 User’s Manual APPENDIX 2. IDENTIFICATION OF SEND STATUS Because the status sent from the control board has certain fixed bits, it is possible to identify to which command the status belongs. When using ASB (Automatic Status Back), however, the first byte of ASB should be checked, and then the three consecutive bytes except for XOFF should be treated as ASB data.

  • Page 41: Appendix 3. Device Id

    BD2-1220/1221 User’s Manual APPENDIX 3. DEVICE ID If the bidirectional communication feature is used on the parallel interface, the host can receive character strings that identify the types of devices attached to the interface. When the control board receives a request for a device ID from the host, it replies with the following device <00>...

  • Page 42: Appendix 4. Character Codes Table

    BD2-1220/1221 User’s Manual APPENDIX 4. CHARACTER CODES TABLE 1. Code Page Codepage 00H to 7FH & PC437 (USA, European Standard) Codepage Katakana (Japanese) Codepage PC850 (Multilingual)
  • Page 43 BD2-1220/1221 User’s Manual Codepage PC860 (Portuguese) Codepage PC863 (Canadian-French) Codepage PC865 (Nordic) Codepage PC852 (Eastern Europe)
  • Page 44 BD2-1220/1221 User’s Manual Codepage PC866 (Russian) Codepage PC857 (Turkish) Windows Codepage...

  • Page 45: International Character Codes Table

    BD2-1220/1221 User’s Manual 2. International Character Codes Table Country U.S.A. France Germany U.K. Denmark1 Sweden Italy Spain1 Japan Norway Denmark2 Spain2 Latin America Korea...

  • Page 46: Maintenance And Service

    BD2-1220/1221 User’s Manual MAINTENANCE AND SERVICE For the information on maintenance and service, please contact your CBM dealer or at the following addresses. Northern America Ohter Areas CBM America Corporation Japan CBM Corporation Service Center Infromation Systems Drivision 365 Van Ness Way CBM Bldg.
