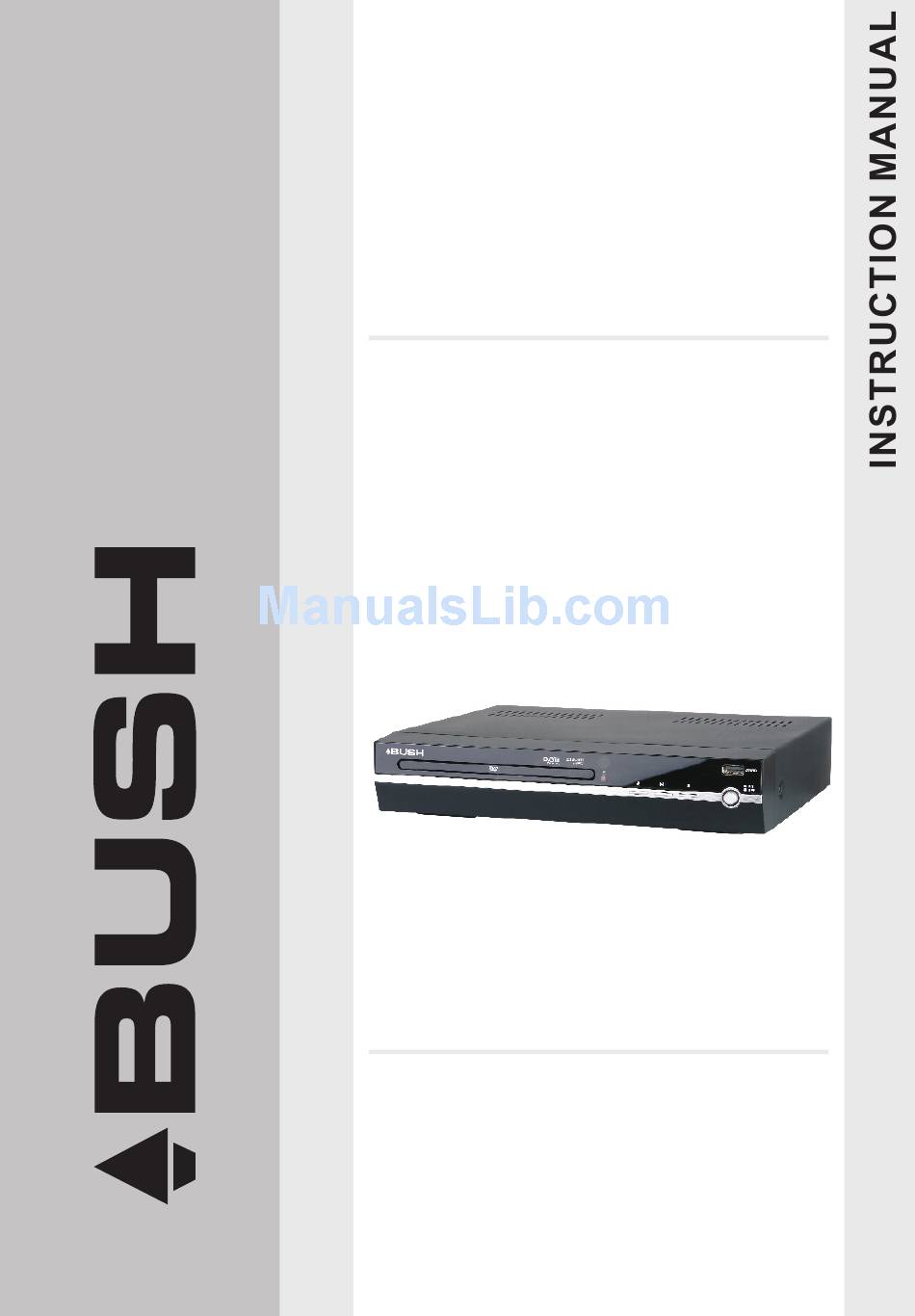

- Page 1 DVD Player With Integrated High Definition Digital Set Top Box DFTA49DVD Toll Free Warranty and Service: 1800 509 394 Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute for Gold Technical Support Only)
-
Page 3: Safety Instructions
Safety Instructions Always read the safety instructions carefully Keep this Instruction Manual for future reference Keep this device away from humidity Lay this device on a reliable flat sur face before setting it up Do not stand it on soft furnishings If any of the following situation arises, get the Set Top Box checked by a service technician: It has been exposed to moisture... - Page 4 Introduction Thank you for buying this Bush product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit s ’...
- Page 5 About the High Definition Digital Set Top Box with Integrated DVD Player This DVB-T TV Receiver allows you to access Free-to-Air Digital TV Channels and Radio Broadcasts on your TV set. Its digital reception covers VHF & UHF band. Digital TV eliminates noise and inter ference and offers high quality video and audio.
-
Page 6: Table Of Contents
Table of Contents Front Panel and Rear Panel Illustration----------------------------------------------1 Remote Control ----------------------------------------------------------------------2 Connecting to a TV Set---------------------------------------------------------------4 Set Top Box Menu Set Up ------------------------------------------------------------5 DVD Player Menu Set Up------------------------------------------------------------16 MP3/WMA/JPEG/MPEG4 Playback-------------------------------------------------20 Picture CD Playback-----------------------------------------------------------------21 Troubleshooting---------------------------------------------------------------------22 Specifications-----------------------------------------------------------------------23 Warranty-----------------------------------------------------------------------------24... -
Page 7: Front Panel And Rear Panel Illustration
POWER SUPPLY: AC 230V ~50Hz LOOP Audio MAX POWER CONSUMPTION: 15W THROUGH BUSH WARRANTY: 1800 509 394 AUSTRALIA BUSH WARRANTY: 0800 450 259 NEW ZEALAND MADE IN PRC 2010/11 Coaxial HDMI OUT N14119 RF IN : This socket connects to your external Aerial. -
Page 8: Remote Control
Remote Control 1. OPEN/CLOSE:In DVD mode, press the STANDBY MUTE OPEN/CLOSE OPEN/CLOSE Button to immediately eject or close the disc tray. NOTE: The OPEN/CLOSE Button has no effect in DVB mode. 2. PLAY/PAUSE: In DVD mode, press the PLAY/PAUSE Button to pause or play the DVD you are watching. - Page 9 18. TV/RADIO: Press the TV/Radio Button to switch between TV and Radio modes. 19. MUTE: Press the Mute Button to turn the sound on or off. 20. STANDBY: Press the Standby Button to switch the unit on and off. 21. P/N: Press the P/N Button to switch between PAL and NTSC TV output formats. 22.
-
Page 10: Connecting To A Tv Set
Digital Set Top Box Digital POWER SUPPLY: AC 230V ~50Hz LOOP Audio MAX POWER CONSUMPTION: 15W THROUGH BUSH WARRANTY: 1800 509 394 AUSTRALIA BUSH WARRANTY: 0800 450 259 NEW ZEALAND MADE IN PRC 2010/11 Coaxial HDMI OUT N14119 Coaxial VOLUME... -
Page 11: Set Top Box Menu Set
Set Top Box Menu Set Up First Time Installation Once you have connected your Set Top Box to your TV correctly and the Mains Power is connected and switched on, you can now turn on your TV. Press the Power Button on your remote to turn on your Set Top Box. - Page 12 Program Edit In the Program Menu you are able to select Program Edit. This will allow you to edit your program preferences; lock, skip, favourite, move or delete programs. To enter the Program Edit Menu you will need to enter either your set password or the default password ' 0 0 0 0 0 0 ' .
- Page 13 Skipping a TV or Radio Program You can set your Set Top Box to skip a TV or Radio program, if you desire. To skip a TV or Radio program: 1. Select the program you would like to skip and press the Green Button. A skip symbol will be displayed and the program will be set to skip.
- Page 14 EPG (Electronic Program Guide) The EPG is an on-screen TV guide that displays the scheduled programs for the next seven days for every tuned channel (when available from the broadcaster). Press the EPG Button on the Remote Control to access guide. Once you have pressed the EPG Button on the remote control, you can use the Up or Down Button to select the program you wish to view more information about.
- Page 15 When booking a reminder you must select the program you wish to set a reminder message for and then press ENTER to confirm. The program will be displayed in the booking list. Note: In DTV mode, press the Blue Button to view the scheduled reminders in the booking list.
- Page 16 LCN (Logical channel number) In the Program Menu you can set the LCN to on or off. Managing your Picture Settings To access the Picture Menu, press the Setup Button and then select Picture. The Picture Menu allows you to manage your picture settings as shown below. Press the Up or Down Buttons to select an option and then press the Right or Left Buttons to adjust that setting Press the Exit Button to exit the menu...
- Page 17 Channel Search To manage your channel list and to conduct a channel scan you have to enter the Channel Search Menu. To access the menu, press the Setup Button and then select Channel Search. The Channel Search Menu allows you to automatically or manually search for channels and provides you with options to adjust the search settings.
- Page 18 Country You are able to change your country of residence in this section if you need to. Antenna Power If you have an external active antenna, this option will allow you to connect and use this antenna. Time Setting The time setting menu allows you to manage the time function on your set top box. To access the Time Setting Menu select the Time option in the Main Menu.
- Page 19 1. OSD Language The OSD Language is the language that will be used in the Menu and displayed on the screen. Use the Navigation Buttons and the OK Button to select the language you would like to display. 2. Audio Language The Audio Language allows you to select your preferred audio language.
- Page 20 3. Factory Default You can select the Factory Default Function in the System Menu. The Factory Default Setting will allow you to reset your Set Top Box to the Default Factory Settings. In Main Menu select [Factory Default] and press OK or RIGHT to select. Enter your "...
- Page 21 (b) Photo configure: -Slide Time: adjust slide show interval to 1~8 seconds. -Slide Mode: adjust slide show effect as mode 0~59 or random. -Aspect Ratio: Keep displays the picture as its original aspect, Discard displays the picture in full screen mode. Movie Configure - Aspect Ratio: [Keep]: Play movie as its original aspect.
-
Page 22: Dvd Player Menu Set
DVD Menu Set Up DVD Menu Operation To enter the DVD Function of the unit, press the Source Button to change from Set Top Box mode to DVD mode. Then press the SETUP Button to enter the Main Menu. Then use the Navigation Buttons to scroll through the menu to select the relevant option you wish to select. - Page 23 Aspect Ratio Select the aspect ratio. Notes: The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen.
- Page 24 Digital output(Optional) Adjust the audio output on Coaxial por ts to work in harmony with the audio equipment (e.g.receiver, amplifier) connected to the player. Off Digital audio output is disabled. PCM Transfer stereo 2 channels signals RAW: Transfer the DVD original audio track Note: This item is only for the player with coaxial output.
- Page 25 Parental Control Set the parental control feature of the player Note: Password is needed before setting Parental Control. Set Password Input four digits (password), then press OK to confirm. Note: If you forget your password, please use the universal password 6666 to unlock.
-
Page 26: Mp3/Wma/Jpeg/Mpeg4 Playback
MP3/WMA/JPEG/MPEG4 PLAYBACK The MP3/WMA/MPEG4 disc has such a directory structure as shown picture above Press Direction key to choose the root directory and then press OK button to enter into the sub directory. Press Direction key to choose the desired track and then press OK or PLAY to enjoy the music or movie. -
Page 27: Picture Cd Playback
PICTURE CD PLAYBACK The PICTURE CD disc has such a directory structure structure as shown in the following picture. Press Direction key to choose the root directory and then press OK button to enter into the sub directory. Press Direction key to choose the desired picture and then press OK or PLAY to enjoy the picture. -
Page 28: Troubleshooting
If you continue to have problems we recommend you contact the Bush service and Warranty Toll Free Number - 1 8 0 0 5 09 394 . -
Page 29: Specifications
Specifications Specification Item Frequency Range VHF: 174MHz to 230MHz Tuner UHF: 470MHz to 862 MHZ Input impedance 75 Ohms unbalanced -78 ~ -25DBM Signal input level 7/8MHz Bandwidth COFDM Demodulator Demodulation 2K, 8K FFT, SFN and MFN OFDM Modulation 2K/8K Packet Carries 1/4, 1/8, 1/16, 1/32 Guard interval... - Page 32 PO BOX 6287, SILVERWATER NSW 1811 www.bushaustralia.com.au...
