Bunn SINGLE TFDBC Illustrated Parts Catalog

W/smart funnel
Hide thumbs

Advertisement

Quick Links

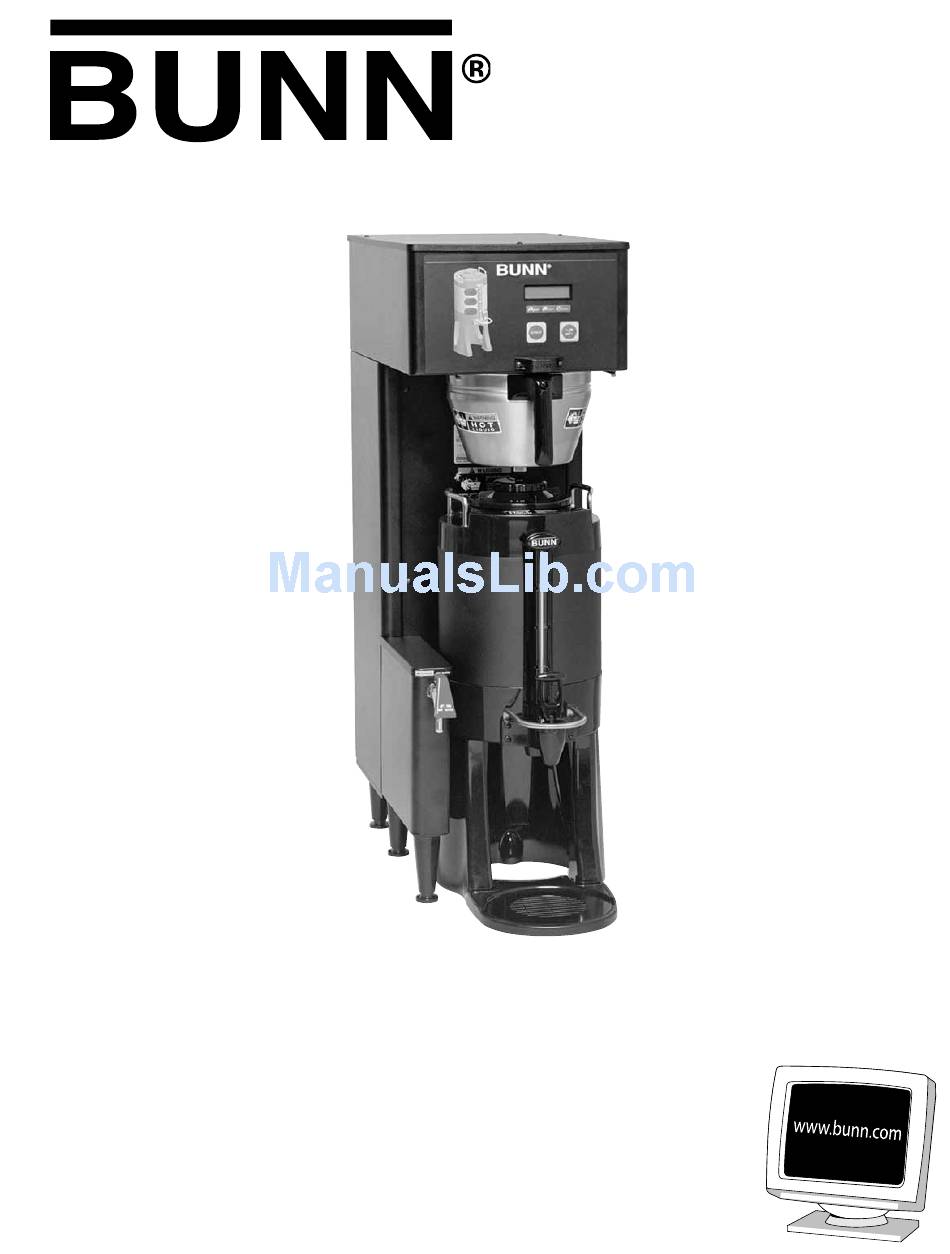

SINGLE
TF DBC
®
®
W/SMART FUNNEL
®
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
36096.0001 12/12 ©2011 Bunn-O-Matic Corporation

Advertisement

loading

Related Manuals for Bunn SINGLE TFDBC

Summary of Contents for Bunn SINGLE TFDBC

  • Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 36096.0001 12/12 ©2011 Bunn-O-Matic Corporation...
  • Page 2 AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Base - Trunk - Hood - Covers & Panels ............................4 Electrical Controls ..................................20 Faucet ....................................... 18 Funnel....................................... 24 Inlet Valve and Line .................................. 14 Numerical Index ..................................26 Sprayhead Valve, Water By-Pass Valve and Sprayhead ......................16 Strainer, Solenoid &...
  • Page 4 SINGLE BUNN ® BASE - TRUNK - HOOD - COVERS & PANELS TF DBC Early Models IT C P2726.40 36096 063008...
  • Page 5 BASE - TRUNK - HOOD - COVERS & PANELS ITEM PART NO. QTY. DESCRIPTION 35214.1001 Cover Assy, Top BLK (Includes items 2, 3 & 4) 35214.1002 Cover Assy, Top BLK 120V models (Includes items 2, 3 & 4) 35214.1003 Cover Assy, Top BLK 200V & 230V models (Includes items 2 & 3) 01308.0003 Screw, Truss Head BLK #6 - 32 x .25"...
  • Page 6 SINGLE BUNN ® BASE - TRUNK - HOOD - COVERS & PANELS TF DBC Early Models IT C P2726.40 36096 111507...
  • Page 7 BASE - TRUNK - HOOD - COVERS & PANELS ITEM PART NO. QTY. DESCRIPTION Models with Inlet Valve 35227.0000 Base Housing SST mounted in Hood 35227.0001 Base Housing BLK 35227.0002 Base Housing SST 120V, 240V, 120/208V, 120/240V models 35227.0003 Base Housing BLK 120V, 240V, 120/208V, 120/240V models Models with Inlet 35227.0004 Base Housing SST 230V models...
  • Page 8 SINGLE BUNN ® TANK HEATER & OVERFLOW PROTECTION DEVICES TF DBC EARLY MODEL TANK Brewers W/Copper Overflow Cup P2727 36096 021506...

  • Page 9: Tank Heater & Overflow Protection Devices

    TANK HEATER & OVERFLOW PROTECTION DEVICES ITEM PART NO. QTY. DESCRIPTION 12398.0002 Gasket, Tank Heater 12322.1000 Tank Heater, 4000W @ 240V (Includes item 1) 12305.1000 Tank Heater, 4000W @ 208V (Includes item 1) 36115.1000 Tank Heater, 2200W @ 120V (Includes item 1) 00908.0000 Nut, Hex #8 - 32 23717.0003...
  • Page 10 SINGLE BUNN ® TANK AND MOUNTING BRACKETS TF DBC EARLY MODEL TANK LATE MODEL TANK P2728.50 P3572.50 36096 021808...

  • Page 11: Tank And Mounting Brackets

    TANK AND MOUNTING BRACKETS ITEM PART NO. QTY. DESCRIPTION 35250.0000 Bracket, Tank Support (Early model Tank) 28909.0000 Bracket, Tank Support (Late model Tank) 02308.0000 Screw, Pan Head #8-32 x .38" 01315.0005 Screw, Truss Head, BLK #8 - 32 x .375" 00908.0000 Nut, Hex #8 - 32 35247.0000...
  • Page 12 SINGLE BUNN ® STRAINER, SOLENOID & LINES TF DBC 6 8 6 230V Models only P2733 36096 072909...

  • Page 13: Strainer, Solenoid & Lines

    STRAINER, SOLENOID & LINES ITEM PART NO. QTY. DESCRIPTION 02536.0000 Grommet .375" I.D. 20937.0004 Tube, Tank Fill 32359.0000 Gasket, .375" Flare Copper 36089.0000 Tube Assembly, Solenoid to Tank 36130.0000 Bracket, Solenoid Mounting 02308.0000 Screw, Pan Head #8 - 32 x .375" 34768.0001 Elbow, Male .375"...
  • Page 14 SINGLE BUNN INLET VALVE AND LINE ® TF DBC 230 Volt Models P3950 36096 021412...

  • Page 15: Inlet Valve And Line

    INLET VALVE AND LINE ITEM PART NO. QTY. DESCRIPTION 02536.0000 Grommet .375" I.D. 20937.0004 Tube, Tank Fill 32359.0000 Gasket, .375" Flare Copper 12418.0001 Fitting, Swivel .375" Barb 12422.0001 Clamp, Hose .59"/.66" I.D 20976.0036* Tube, Silicone .375" I.D. x .625" O.D. x 36.0" (Order item 12) 20976.0084* Tube, Silicone .375"...
  • Page 16 SINGLE BUNN SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD ® TF DBC P2729 36096 063010...
  • Page 17 SPRAYHEAD VALVE, WATER BY-PASS VALVE & SPRAYHEAD ITEM PART NO. QTY. DESCRIPTION 12422.0005 Clamp, Hose .62"/.71" I.D. 12422.0008 Clamp, Hose .93"/1.10" I.D. 12422.0008 Clamp, Hose .93"/1.10" I.D. 35052.0000* Tube, Silicone .75" I.D. x 1.0" O.D. x 6.25" (Order item 28) 32591.0006* Tube, Silicone .50"...
  • Page 18 SINGLE BUNN ® FAUCET TF DBC 11 10 12 13 14 1 Early Models P2730 36096 111507...
  • Page 19 FAUCET ITEM PART NO. QTY. DESCRIPTION 02596.1009 Faucet Assy (Includes items 2 thru 8 & 14) (Early Models) 29075.0002 Faucet Assy (Includes items 2 thru 8) (Late Models) 02861.0003 Handle, Faucet 02854.0000 Bonnet, Faucet 02595.0000 Spring, Faucet 02766.0000 Seat Cup, Faucet 02856.0008* Body, Faucet (Early Models) 02856.0009*...
  • Page 20 SINGLE BUNN ELECTRICAL CONTROLS ® TF DBC Early Models 200V & 230V Models 230V Models only Models With Main Power Switch P2731.50 36096 121708...

  • Page 21: Electrical Controls

    ELECTRICAL CONTROLS ITEM PART NO. QTY. DESCRIPTION 29969.1000 Circuit Board, Main control (120V, 120/208V & 120/240V models) 29969.1003 Circuit Board, Main control (200V models) 38358.1000 Circuit Board, Main control (230V models) 00973.0000 Nut, Keps #6-32 01533.0006 Spacer (Early models) 29970.0000 Mount, Circuit Board (Early models) 40726.0000 Mount, Circuit Board (Late models)
  • Page 22 SINGLE BUNN ELECTRICAL CONTROLS ® TF DBC Early Models 200V & 230V Models 230V Models only Models With Main Power Switch P2731.50 36096 121708...
  • Page 23 ELECTRICAL CONTROLS ITEM PART NO. QTY. DESCRIPTION 29327.0000 Probe Kit, Temperature/Dry Plug 36885.0000 Bracket, EMI Filter Mount 29446.0002 EMI Filter (200V & 230V models) 01347.0000 Screw, Truss Head #6-32 x .38" 38894.0001 Switch, Main Power 01308.0002 Screw, Truss Head #6-32 x .25" (Switch Mounting) 01327.0000 Screw, Pan Head #10-32 x .375"...
  • Page 24 SINGLE BUNN ® FUNNEL TF DBC Optional Filter Basket P2732 36096 121912...
  • Page 25 FUNNEL ITEM PART NO. QTY. DESCRIPTION 32643.0000 Funnel Assy, SST Each includes Items 2 thru 9 32643.0010 Funnel Assy W/D-Ring Basket, SST (Optional) 24462.0002 Funnel W/Decals (Includes items 3 & 4) 03408.0004 Decal, Warning-Remove Funnel 03409.0004 Decal, Warning-Hot Liquid 32595.0000 Handle, Funnel-Black 12499.0002 Screw, Round Head .25"...

  • Page 26: Numerical Index

    NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 00310.0008......13 02854.0000......19 23255.0000......17 33634.0032......23 00502.0000......7 02856.0008......19 23255.0000......17 33634.0035......23 00656.0001......5 02858.0000......19 23256.0000......17 34675.0002......
  • Page 27 NUMERICAL INDEX PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. 35708.0000......11 35726.0000......5 35952.1003......23 35952.1004......23 35952.1005......23 35953.0000......21 35955.0000......21 35955.0001......21 35955.0002......21 36081.0000......13 36084.0000......13 36086.0000......
