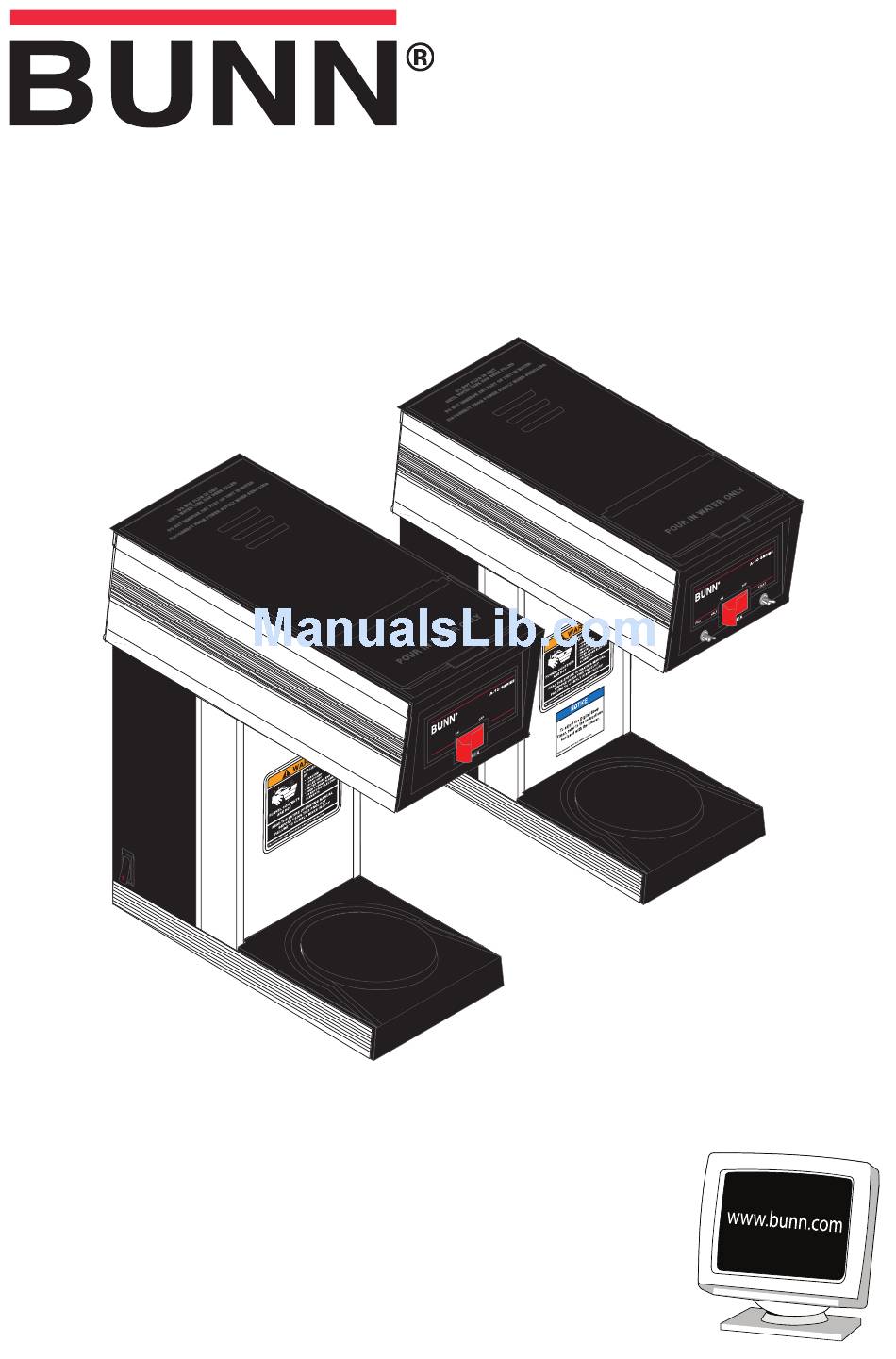

INSTALLATION & OPERATING GUIDE
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
43422.0001B 07/12 ©2011 Bunn-O-Matic Corporation
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
A10 &
A10-A
Supercedes:
10070.0000;
10613.0000;
32671.0001;
43422.0000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bunn A10

  • Page 1 INSTALLATION & OPERATING GUIDE Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 43422.0001B 07/12 ©2011 Bunn-O-Matic Corporation...
  • Page 2 This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location;...
  • Page 3: Table Of Contents

    U.S.A., you must comply with the applicable Plumb- ing /Sanitation Code for your area. #37881.0002 #00656.0001 WARNING PN: 00658.0000G 02/08 © 1985 BUNN-O-MATIC CORPORATION Fill water tank before turning - on - thermostat or connecting appliance #00658.0000 to power source.
  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS Follow these basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or personal injury: • Read all instructions. • Do not let cord hang over edge of • Do not touch hot surfaces. Use table or counter, or touch hot sur- handles or knobs.
  • Page 5: General Information

    • A power switch is provided on the lower left side to completely shut off all elec- trical components when your plans take you away from home for several days. Safety features, designed into the Bunn Pour-Omatic coffee brewer, make the ®...
  • Page 6: Operating Controls

    MODEL A-10/A-10 AUTOMATIC COFFEE BREWER HOT WATER TANK (LOCATED INSIDE) START SWITCH WARMER SWITCH FULL/HALF BATCH SWITCH VACATION SWITCH WARNING RISK OF FIRE OR ELECTRICAL SHOCK Hazardous Voltage! Can Cause Fire Or Electrical Shock! Do Not Disassemble The Brewer! There Are No User Serviceable Parts Inside! Repair Should Be Done By Authorized Service Personnel! (Refer to Page 13) This symbol alerts you to the risk...
  • Page 7: Electrical & Plumbing Requirements

    It can be purchased direct from Bunn-O-Matic (part number 00326-0000). As directed in the International Plumbing Code of the International Code Council and the Food Code Manual of the Food and Drug Administration (FDA), this equipment must be installed with adequate backflow prevention to comply with federal, state and local codes.
  • Page 8: Preparing The Brewer For Use

    PREPARING THE BREWER FOR USE ALL MODELS NOTE: THE BREWER IS NOT READY TO PLUG IN Raise the hinged flip lid. P2078 Place the decanter on the warmer. Pour two pitchers of water (filled to the top line) into the screened area on top of the brewer. Wait two minutes between pitchers to allow the water to fill the tank.
  • Page 9: Brewing Delicious Coffee

    A10/A10A ONLY: Raise the hinged flip-lid and pour water into the top of the brewer. The water pitcher, supplied, will yield approximately eight 6 ounce cups of brewed coffee when filled to the top line. Your Bunn Pour-Omatic will ®...
  • Page 10: Timer/Batch Size Adjustment

    TIMER SETTING - AUTOMATICS ONLY CAUTION – Disconnect the power source from the brewer prior to the removal of any panel for the replacement or adjustment of any component. NOTE: Check that the brewer is connected to water supply, the tank is properly filled, and a funnel and server are in place, prior to setting or modifying batch sizes.
  • Page 11: Coffee Fundamentals

    HOT WATER The same basic steps can be used to obtain hot water by omitting the filter and coffee and using the enclosed hot water funnel. The hot water from your Bunn ® coffee brewer is approximately 200˚ F. This is hotter than the hot water from your faucet and must be handled with care.
  • Page 12: Routine Cleaning/Maintenance

    P2085 SOFTENED WATER and/or DECAFFEINATED COFFEE Bunn coffee brewers will brew a perfect decanter of coffee when used with ® unsoftened tap water and regular coffee. If there’s a noticeable difference when us- ing softened water and/or decaffeinated coffee, telephone or write us to request a special sprayhead and use a coarser grind of coffee.
  • Page 13: Draining The Brewer

    DRAINING THE BREWER The water in your Bunn Coffee Brewer should be emptied whenever it is taken ® on a trip, shipped, or stored in an unheated location with a chance of freezing. 1) Unplug the brewer and cool the hot water in the tank.
  • Page 14: Bunn Companion Products

    BUNN paper filters are packaged to ® maintain their fluted shape for use in most basket type drip coffee makers and the Bunn Easy Tea Pitcher. ® AUXILIARY WARMERS Durable, porcelain-coated, scratch- resistant warmer with lighted ON/OFF...
  • Page 15: Schematic Wiring Diagram

    LIMIT THERMOSTAT THERMOSTAT THERMOSTAT 1000W TANK HEATER "KEEP WARM" HEATER LOWER WARMER 230 VOLTS AC 2 WIRE SINGLE PHASE 10627.0000A 5/92 © 1992 BUNN-O-MATIC CORPORATION SCHEMATIC WIRING DIAGRAM A10 AUTO GREEN SW. & LIMIT LIMIT THERMOSTAT THERMOSTAT THERMOSTAT 1000W TANK HEATER "KEEP WARM"...
