Summary of Contents for BSS Audio Soundweb 9088

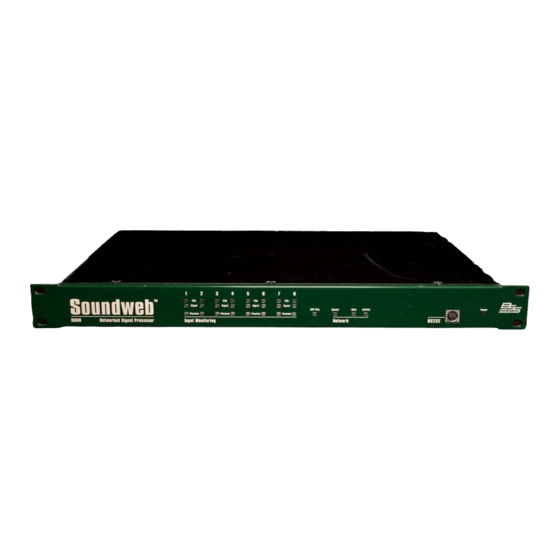

- Page 1 Soundweb Soundweb Soundweb 9088 9088 9088 Soundweb Soundweb 9088 9088 TM TM TM TM TM Installation Guide...
-
Page 2: Mechanical Installation
This equipment must be earthed. It should not be necessary to remove any protective earth or signal cable shield connections to prevent ground loops. Any such disconnections are outside the recommended practice of BSS Audio, and will render the EMC or safety certificate void. - Page 3 Front panel LED functions Input monitoring Input monitoring Input monitoring Input monitoring Input monitoring Each channel has 3 LED indicators showing: Clip Clip Clip Clip Clip Illuminated - Excessive signal level, close to clip. Signal Signal Signal Signal Signal Illuminated - A signal is present on this channel input. Phantom Phantom Phantom...
- Page 4 Front panel details RS232 RS232 RS232 RS232 RS232 Used to connect one of the 9088 units in the network to a controller PC (cable supplied with unit), which can then communicate with any device on the network. The pin out is: RX - 5 GND - 4 TX - 3...
- Page 5 Rear panel details Mains inlet Mains inlet Mains inlet Mains inlet Mains inlet IEC power connector for removable mains supply. Fuse holder Fuse holder Fuse holder Fuse holder Fuse holder Mains fuse - requires a 20mm T1A type fuse. Network In/Out Network In/Out Network In/Out Network In/Out...
- Page 6 Control Inputs Used to connect switches or potentiometers to the 9088. These eight inputs are internally ‘pulled up’ to +5V DC via a 4.7kOhm resistor, so no external voltage source is needed. Four common (ground) connections are provided (all connected together internally). A 47kOhm log potentiometer connected between one input and common will allow parameters to be controlled linearly.
-
Page 7: Technical Specifications
Technical specifications General General General General General Frequency response (+-0.5dB) 15Hz to 20KHz THD <0.01% (20Hz to 0KHz, +10dBu output) Dynamic range 100dB typ. (22Hz to 22KHz unweighted) 103dB typ. (A-weighted) Maximum output level +20dBu Inter-channel Crosstalk <-75dB Maximum network cable length 300m/1000ft Power consumption <35VA Mains Volts 85-270V 50/60Hz Line input card...
