- Page 1 Soundweb London BLU-80/BLU-32/BLU-16 Installation Guide ZM10102-01-C...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING: KEEP THESE INSTRUCTIONS HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS THE APPARATUS SHALL NOT bE ExPOSED TO DRIPPING OR SPLASHING The symbols shown above are internationally accepted symbols LIqUID AND NO ObjECT FILLED WITH LIqUID, SUCH AS vASES, SHALL that warn of potential hazards with electrical products. - Page 3 IMPORTANT SAFETY INSTRUCTIONS U.K. MAINS PLUG WARNING A molded mains plug that has been cut off from the cord is unsafe. Discard the mains plug at a suitable disposal facility. NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT A DAMAGED OR CUT MAINS PLUG INTO A 13 AMP POWER SOCKET.
-
Page 4: Regulatory Information
This equipment must be earthed. It should not be necessary to remove any protective earth or signal cable shield connections to prevent ground loops. Any such disconnections are outside the recommended practice of BSS Audio, and will render the EMC or safety certificate void. -

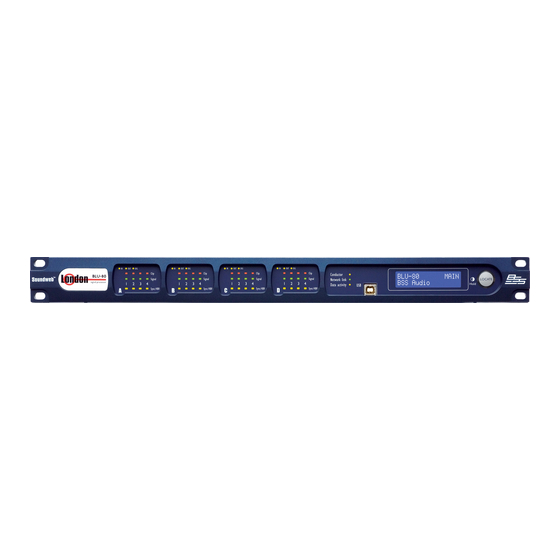

Page 5: Front Panel
Front panel Input card monitoring Each channel has 3 LED indicators showing: Clip Illuminated - Indicates clipping in the analogue domain for each channel of the fitted Input or Output card. The LED will illuminate at +18.5dB. Signal Illuminated - The Signal LED will illuminate for each channel of a fitted Input or Output card when the signal reaches or exceeds the signal threshold of -20dB. - Page 6 Front panel details Audio cable wiring All audio and control connections to the BLU-80/BLU-32/BLU-16 are via Klippon pluggable terminal block connectors (also known as BL, Phoenix or Combicon). 6-way female Klippon connectors are supplied for making these connections. Audio Input and Output wiring convention Soundweb products provide cable shielding ‘back from the destination’...
-
Page 7: Rear Panel
Rear panel BLU-80 shown. BLU-32 layout is identical. BLU-16 has no CobraNetTM or Buddy Link connections but is otherwise identical to the BLU-80 and BLU-32. AC Mains AC Mains input to the universal switched-mode power supply, operates over a wide range of AC input voltages from 85V to 270V, 50/60Hz. - Page 8 CONTROL INPUTS Used to connect switches or potentiometers, e.g. BLU-3 selector wallplate (Part no. Z- BLU-3). Looking at the control port connector (on the back of the unit), there are two common (ground) connections C to the left of the eight CONTROL INPUTS and, two software assignable reference voltage outputs R to the right.
- Page 9 47kOhm 10K-100kOhm linear potentiometer potentiometer unconnected ladder ladder switch switch 2 wire mode 3 wire mode +supply voltage relay relay ground...
-
Page 10: Technical Specifications
Please contact BSS Technical Support for more information on purchasing replacement parts or product service. BSS Audio has a policy of continued product improvement and accordingly reserves the right to change features and specifications without prior notice. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Manufacturer’s Name: BSS Audio Manufacturer’s Address: 8760 S. Sandy Parkway Sandy, Utah 84070, USA declares that the product: Product name: BLU 16, BLU 32, BLU 80 Note: Product name may be suffixed by the letters-EU. Product option: Various combinations of Input / Output Cards conforms to the following Product Specifications:... - Page 12 BSS Audio 8760 South Sandy Parkway Sandy, Utah 84070 801-566-8800 www.bssaudio.com...
