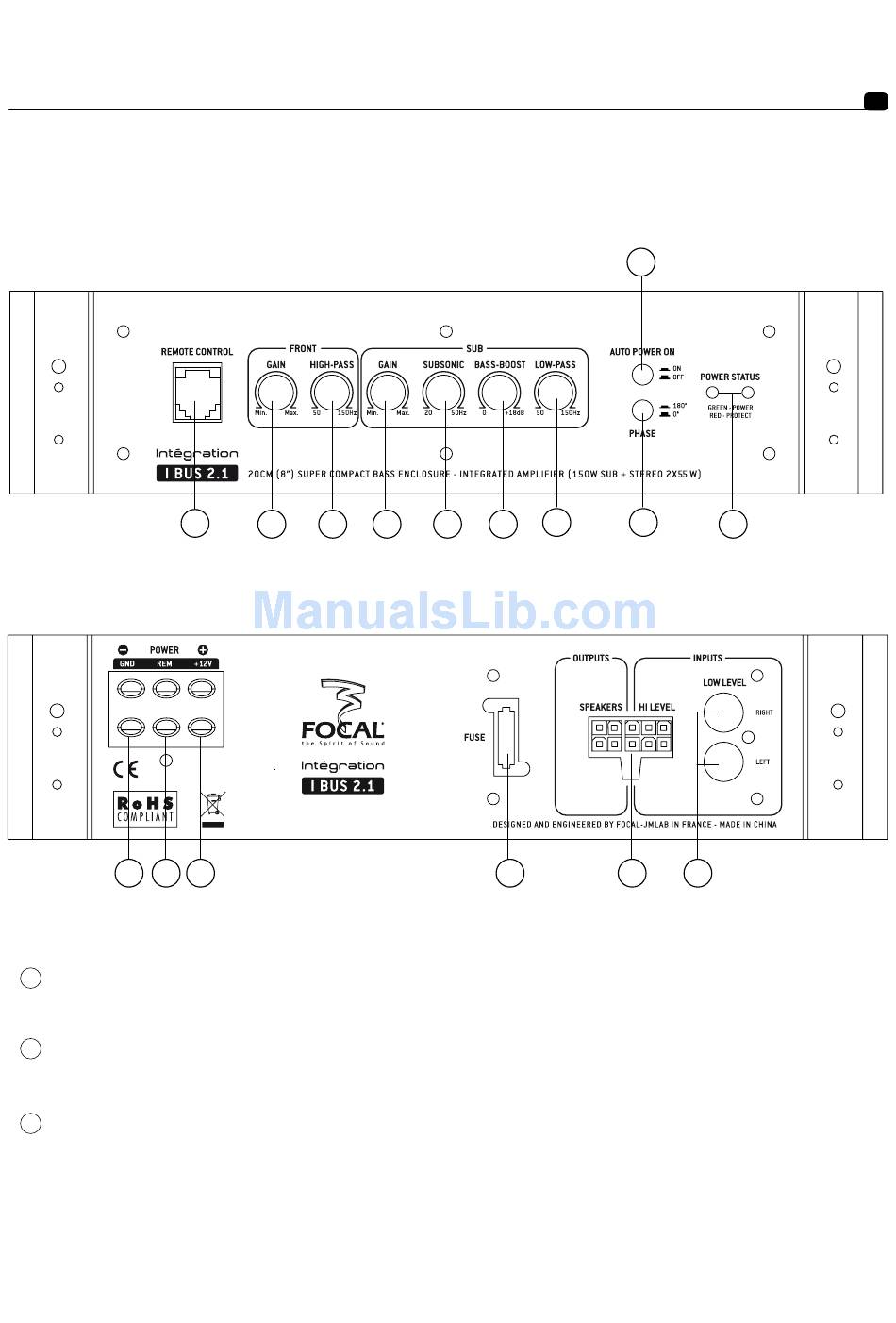

INTEGRATION IBUS 2.1 - FLAT SUBWOOFER + 2 CHANNELS
AMPLIFIER
2 3
+12V: The +BATT power supply connector is dedicated to receiving the power supply cable ensuring the link between the
1
amplifier and the postive (+) terminal of the battery.
GND: The GND power supply connector (ground) is dedicated to receive the negative power supply wire linking the amplifier
2
and the vehicle chassis.
REM: The REM connector ensures the link between the IBUS 2.1 and the source (the car radio) via a REM or REMOTE output
3
of the car radio. It permits to automatically switch on the amplifier as soon as the source (the car radio) is turned on). In some
cases, the original head unit (OEM) does not have the remote wiring so they cannot send a signal for the start up of the IBUS2.1
enclosure. We advise to put out the cable of the ISO plug and connect the blue cable on a "plus" terminal after contact. Be
careful to put off the AUTOPOWER ON connector (Nb 13). If you do not follow these guidelines, the IBUS2.1 may not give
optimum performance.
/
U s e r m a n u a l
7
15
16
1
11
8
9
10
6
13
12
14
4
5
2
