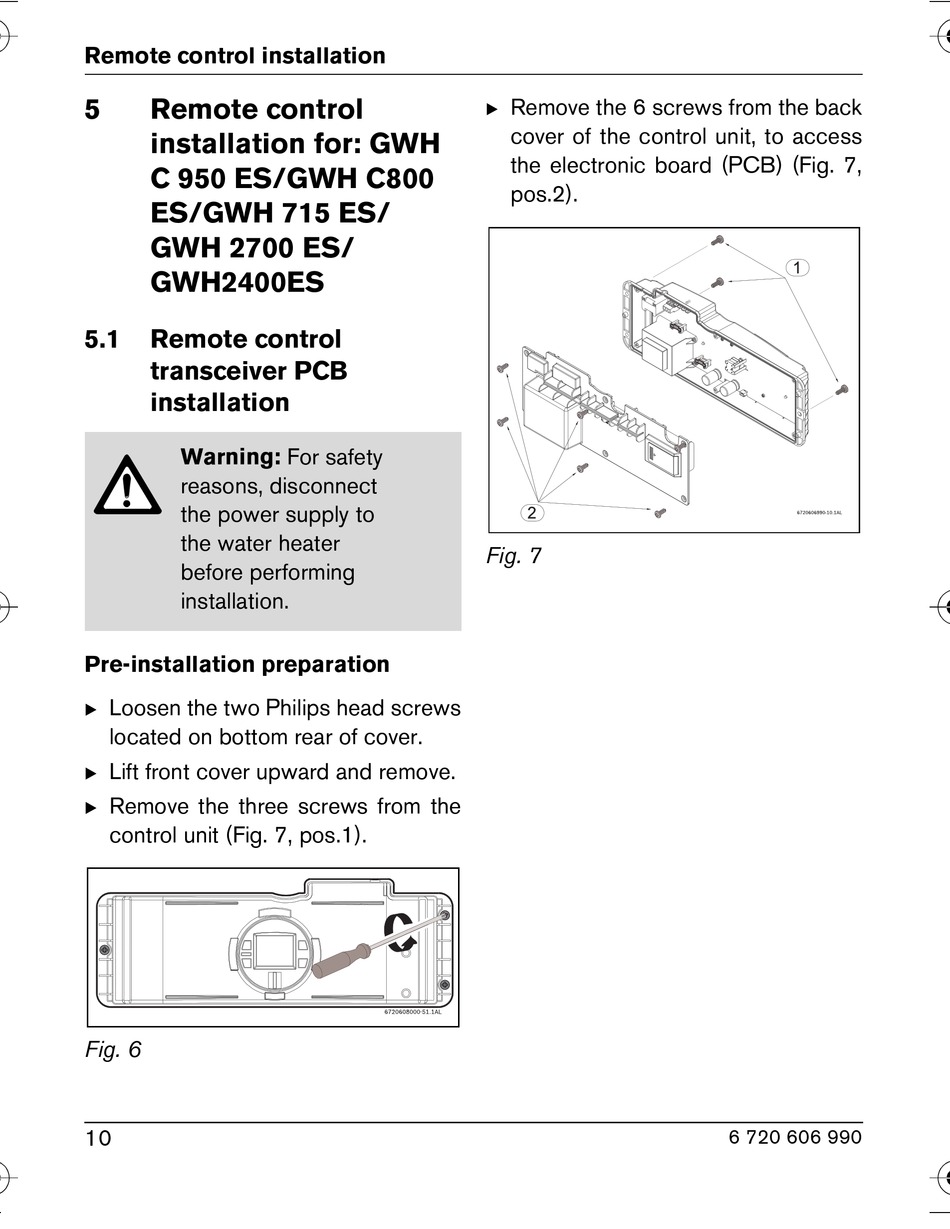

Remote control installation
5
Remote control
installation for: GWH
C 950 ES/GWH C800
ES/GWH 715 ES/
GWH 2700 ES/
GWH2400ES
5.1
Remote control
transceiver PCB
installation
Warning: For safety
reasons, disconnect
the power supply to
the water heater
before performing
installation.
Pre-installation preparation
B Loosen the two Philips head screws
located on bottom rear of cover.
B Lift front cover upward and remove.
B Remove the three screws from the
control unit (Fig. 7, pos.1).
Fig. 6
10
B Remove the 6 screws from the back
cover of the control unit, to access
the electronic board (PCB) (Fig. 7,
pos.2).
Fig. 7
6 720 606 990
