ENDURANCE T3
VERSION 0410

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENDURANCE T3 410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Body Solid ENDURANCE T3 410

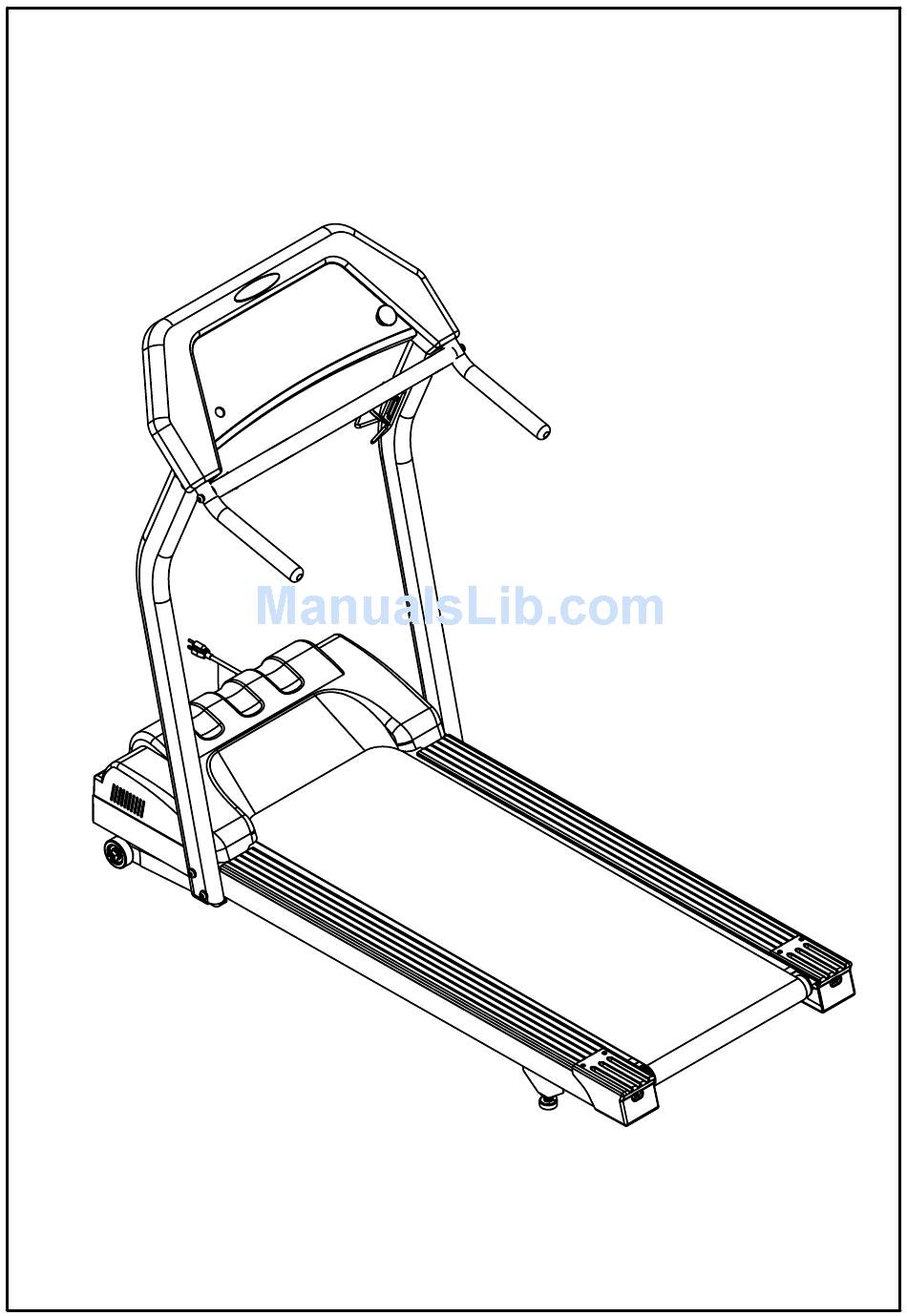

  • Page 1 ENDURANCE T3 VERSION 0410...
  • Page 2 ENDURANCE T3 HARDWARE ILLUSTRATION SHEET Qty. A1. M4X10 Round Cross Screw--------------------[2pcs] A2. M8X16 Round Inner Hex Screw---------------[6pcs] A3. M10X65 Round Inner Hex Screw--------------[4pcs] A4. M10X90 Round Inner Hex Screw--------------[2pcs] C1. M8 (I.D)Washer----------------------------------[4pcs] C2. M10 (I.D)Washer---------------------------------[6pcs] C3. M8 (I.D)Radian Washer------------------------[2pcs] PAGE 1...
  • Page 3 ENDURANCE T3 HARDWARE ILLUSTATION SHEET A[1PCS] D[1PCS] E[1PCS] F[1PCS] B[1PCS] C[1PCS] G[1PCS] H[1PCS] PAGE 2...
  • Page 4 ENDURANCE T3 Assemble Procedures:1.B 6.OTHERS Do not tighten the bolts down completely during first assembly. After the completion of step 3,then you may tighten the bolts completely. Please assemble this bolt last. Do not tighten the bolts down completely during first assembly. After the completion of step 3,then you may tighten the bolts...
  • Page 5 ENDURANCE T3 make 3 turns After assembly and before turning power on position the rear roller using the ' T ' wrench ( refer to the drawing if needed ) . If belt is too far to the left side 1) turn the left roller bolt 1/4 turn clockwise(tighten) 2) turn the right roller 1/4 turn counterclockwise(loosen) If belt is too far to the right side...
  • Page 6: Tensioning The Belt

    ENDURANCE T3 TENSIONING THE BELT Running Belt If when you plant your foot on the belt , you can feel a sliping sensation then the belt has been stretched and is slipping over the roller. This is normal and common adjustment on a new treadmill. To eliminate this slipping , tighten both sides of the rear roller by wing a Allen wrench turn 1/4 of a TURN as shown above .Try the treadmill again to check for slipping.

This manual is also suitable for:

Endurance t3 0410
