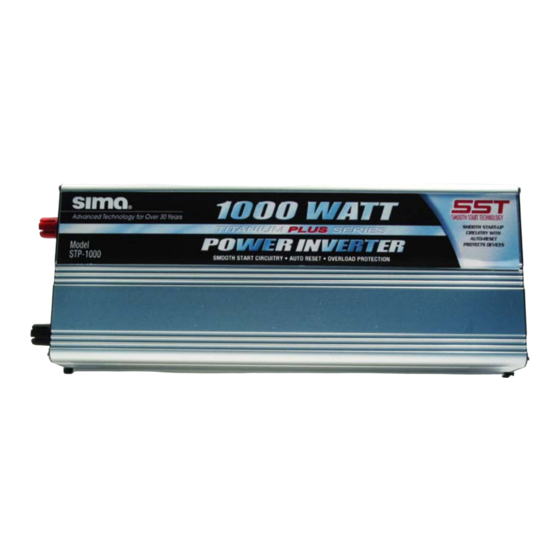

Model STP-1000T Power Inverter
Model STP-1000T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STP-1000T and is the answer not in the manual?

Questions and answers

Summary of Contents for Sima STP-1000T

  • Page 1 Smooth Start Series User Instructions for Model STP-1000T Power Inverter Model STP-1000T...
  • Page 2: Safety Information

    Use proper size wiring. High power inverters can draw many amps from the 12 volt source and can melt wires if not fused and sized properly. IMPORTANT Sima Products Corporation does not authorize any products to be used in life support devices or systems. Serial # ____________________________...
  • Page 3: Table Of Contents

    Table of Contents Safety Information ....................2 Introduction......................4 Key Features ......................4 Package Includes......................4 Needed for Installation (not included) ..............4 Overview of the Power Inverter................5 Installation .......................6 Installation Overview ........................6 Step #1: Mounting the Inverter .....................6 Step #2: Wiring Inverter to 12 volt Power ..................7 Permanent Installation.......................8 Wiring Steps..........................8 Advanced Installation........................9...
  • Page 4: Introduction

    Introduction Congratulations on your purchase of a Sima Products Corporation power inverter. It provides 115 VAC anywhere you have 12 DC volts in your car, truck, RV or boat. It is designed to be easy to use and provide years of dependable service.
  • Page 5: Overview Of The Power Inverter

    Overview of the Power Inverter The STP-1000T power inverters are electronic devices that convert the low voltage 12 VOLTS DC from a battery or other power source to 115 VAC to run standard household appliances. See the section on How it Works to learn more about the technology used in these power inverters. DC Side (12 VOLTS Input) AC Side (115 VAC Output) STP-1000...
  • Page 6: Installation

    Installation Installation Overview There are three basic steps you need to follow when installing the power inverter. 1) Mounting: Mount the inverter securely 2) Wiring: Wire the inverter to a 12 VOLT source 3) Testing: Test for proper operation Step #1: Mounting the Inverter The power inverter should be secured to a solid flat surface capable of handling the weight of the unit.
  • Page 7: Step #2: Wiring Inverter To 12 Volt Power

    Step #2: Wiring Inverter to 12 volt Power The power inverter requires connection to a standard 12 volt DC power source as found in most cars, trucks, RVs and boats. The power source must provide between 11 and 15 volts DC. The power source must be able to provide sufficient current to power the load.
  • Page 8: Permanent Installation

    Permanent Installation Figure 3, Wiring the STP-1000T power inverter Caution: Always use adequate wire size and fusing for any installation Wiring Steps • Disconnect the positive battery terminal before doing any wiring to the inverter. • Using proper sized copper wire and proper terminations, wire the inverter to the electrical system and fuse block.
  • Page 9: Advanced Installation

    • Double check all wiring for proper polarity. • Install the fuse and reconnect the wire to the battery. Note, a slight spark and beep from the inverter is normal when the unit is first connected to 12 volt power. Advanced Installation Large inverters can draw high currents from your battery and charging system especially when used with appliances and tools that use a lot of power.
  • Page 10: Battery Life

    inverter to shut down or the fuse to blow. Repeated use of excessive power draw can cause failure of the power inverter. How to calculate power usage. Most products have a power rating on them such as 45 watts. Others may be marked with their current draw, such as .9 amps. To convert the current to watts multiply the current by 115.
  • Page 11: Lights And Alarms

    Battery Life Chart Power Approximate Typical operation time Typical operation Usage 12 volt with 50 amp-hour car time with 100 amp- Current battery hour car battery 100 watt 9 Amps 5.5 hours 11 hours 200 watt 19 Amps 2.6 hours 5.2 hours 500 watt 47 Amps...
  • Page 12: How The Inverter Works

    How the Inverter Works The Sima Products Corporation power inverter has two electronic sections. The first section converts 12 volts DC to approximately 160 volts DC using modern high frequency conversion techniques that uses small lightweight efficient transformers. The second section converts the 160 volts DC to 115 VAC using high efficiency power MOSFET transistor devices.
  • Page 13: Troubleshooting

    Troubleshooting Problem Cause Solution Unit does not operate Input voltage is below Attach to proper supply 10 volts Fuse blown Determine cause for fuse blowing and then replace fuse feeding inverter. Unit operates for a Load is trying to draw too Be sure load is less than rated watts short period and much current...
  • Page 14: Product Specifications

    Product Specifications Key Features STP-1000T Input 12 - 15 volts DC < .6 A Input no-load current Output type modified sine wave Output, Watts, 10 minutes 1,000W continuous 800W Output, peak 2,000W 60 Hz Frequency, +/- 1% Efficiency 85 - 90% Outlets Protection Thermal...
  • Page 15: Warranty

    Call customer service (800-345-7462) before sending the unit in for service. Limitation of Liability and Remedies Sima Products Corporation shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive damages arising from the...
