Smooth Start Series
User Instructions for
Model STP-1500 Power Inverter
Model STP-1500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STP-1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sima STP-1500

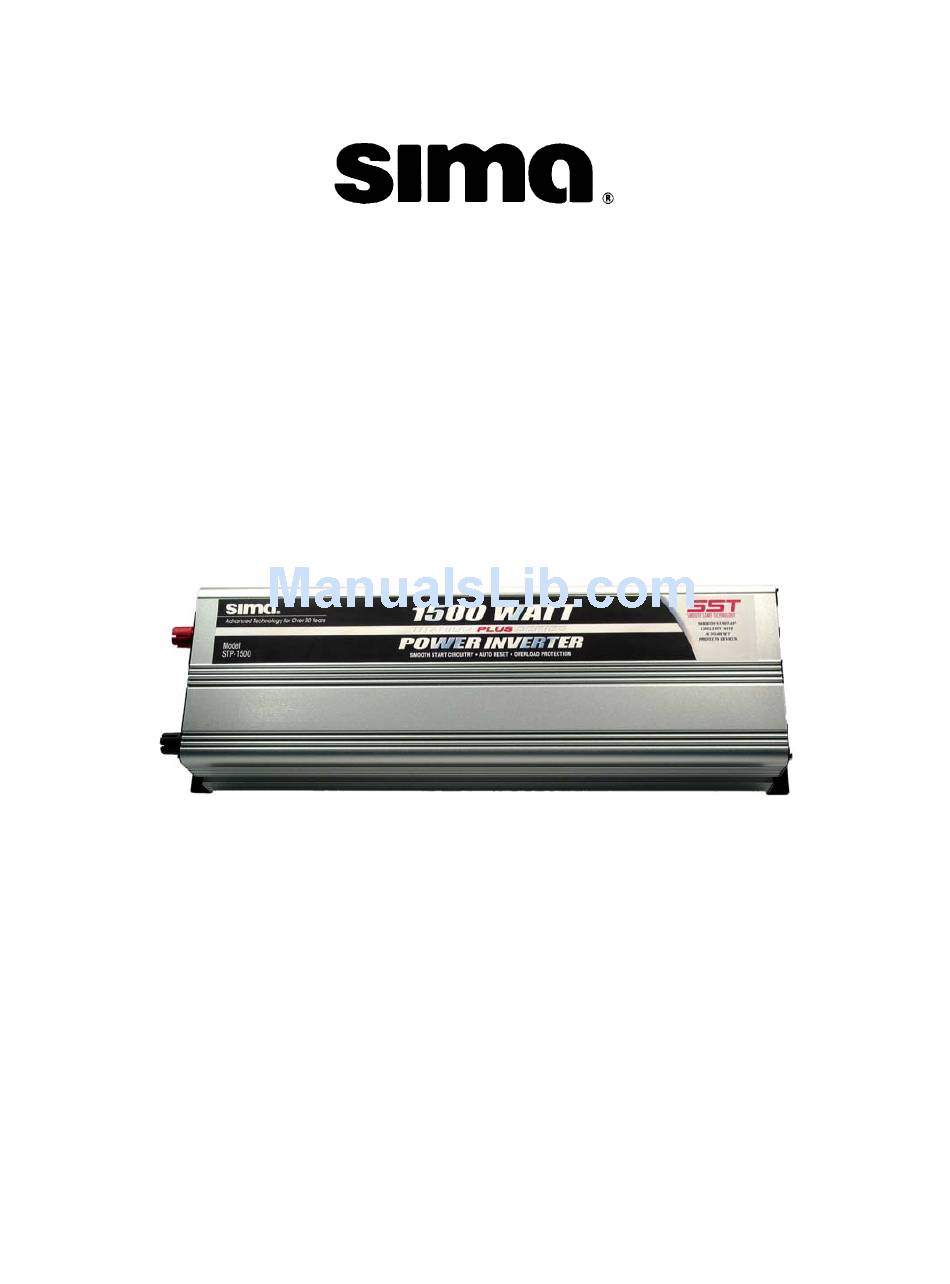

  • Page 1 Smooth Start Series User Instructions for Model STP-1500 Power Inverter Model STP-1500...
  • Page 2: Safety Information

    Do not connect the unit to AC distribution wiring. Keep the unit away from water. Do not allow water to drip or splash on to the power inverter. Keep the unit in cool environments. Ambient air temperature should be between 32 degrees and 75 degrees F.
  • Page 3: Table Of Contents

    Needed for Installation (not included) ...4 Overview of the Power Inverter...5 Installation ...6 Installation Overview ...6 Step #1: Mounting the Inverter ...6 Step #2: Wiring Inverter to 12 volt Power ...7 Permanent Installation...8 Wiring Steps...8 Advanced Installation...9 Step #3: Testing the Power Inverter ...9 Operation ...10...
  • Page 4: Introduction

    • Under Voltage Protection turns the unit off to protect the battery from being over discharged The STP-1500 power inverter produces a modified sine wave output that is suitable for most AC loads. This includes lights, appliances, motors, TVs and most electronics.
  • Page 5: Overview Of The Power Inverter

    Overview of the Power Inverter The STP-1500 power inverters are electronic devices that convert the low voltage 12 VOLTS DC from a battery or other power source to 115 VAC to run standard household appliances. See the section on How it Works to learn more about the technology used in these power inverters.
  • Page 6: Installation

    The unit must be mounted in a dry, cool area. Do not allow water to drip or splash onto the inverter.
  • Page 7: Step #2: Wiring Inverter To 12 Volt Power

    Step #2: Wiring Inverter to 12 volt Power The power inverter requires connection to a standard 12 volt DC power source as found in most cars, trucks, RVs and boats. The power source must provide between 11 and 15 volts DC. The power source must be able to provide sufficient current to power the load.
  • Page 8: Permanent Installation

    • Disconnect the positive battery terminal before doing any wiring to the inverter. • Using proper sized copper wire and proper terminations, wire the inverter to the electrical system and fuse block. See your local RV dealer or automotive shop for wire, connectors, fuse block and other wiring parts.
  • Page 9: Advanced Installation

    With the inverter turned off, plug the appliance you want to use into the 115 VAC power outlet on the unit. Turn the power switch on the power inverter on so the green POWER light is illuminated.
  • Page 10: Operation

    Operation Equipment Power Usage It is important to use only products that draw less than the power rating of the power inverter. Use of products greater than the rated power rating may either cause the protection circuitry of the power inverter to shut down or the fuse to blow.
  • Page 11: Lights And Alarms

    This can happen if a device has a large turn on surge, if an appliance (like a drill or saw) is stalled or if the inverter does not have a supply of cool air.
  • Page 12: How The Inverter Works

    How the Inverter Works The Sima Products Corporation power inverter has two electronic sections. The first section converts 12 volts DC to approximately 160 volts DC using modern high frequency conversion techniques that uses small lightweight efficient transformers. The second section converts the 160 volts DC to 115 VAC using high efficiency power MOSFET transistor devices.
  • Page 13: Troubleshooting

    Remove excessive load. Turn inverter off and back on to reset. inverter off and back on to reset. recharging. wiring as far as possible from electronic equipment, antenna and cables and reorient as necessary.
  • Page 14: Product Specifications

    Low battery shutdown (9.5v) Output short circuit Over voltage (15v) Size (inches) Weight: unit/gross Package Includes: User Manual Cables with ring terminals STP-1500 12 - 15 volts DC < 0.8 A modified sine wave 1,500W 1,200W 3,000W 60 Hz 85-90% 3”...
  • Page 15: Warranty

    Call customer service (800-345-7462) before sending the unit in for service. Limitation of Liability and Remedies Sima Products Corporation shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive damages arising from the use of, or the inability to use, this product, whether arising out of contract, negligence, tort or under any warranty, even if Sima Products Corporation has been advised of the possibility of such damages.
