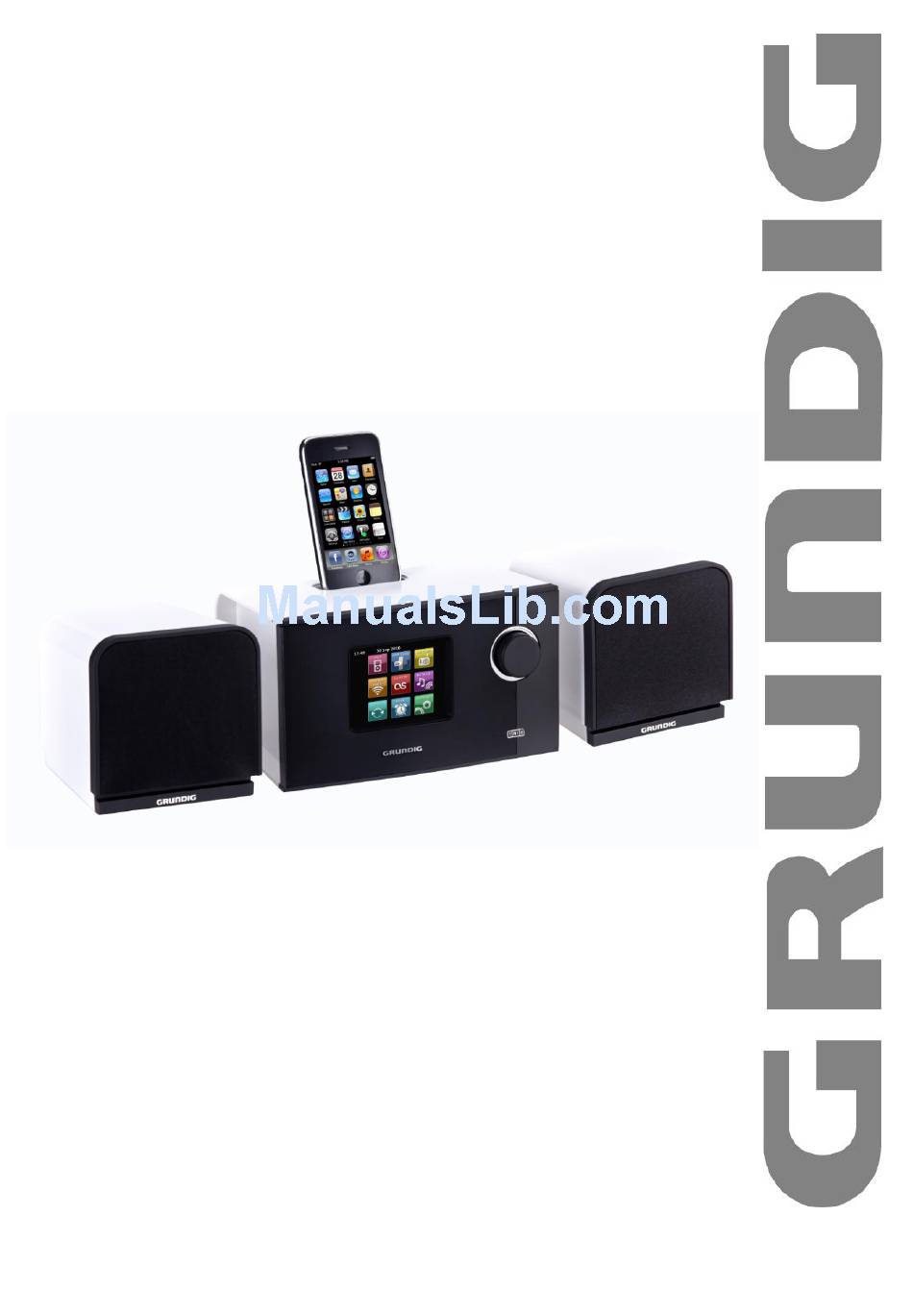

- Page 1 TRIO TOUCH DAB+ MICRO SYSTEM WITH DOCK FOR iPHONE Toll Free Service and Warranty: 1800 509 394 The Gold Technical Support Line: 1902 215 259 (Charges will apply at $2.95 per minute for gold technical support only)
- Page 2 Trio Touch Introduction Thank you for buying this GRUNDIG product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take the time to read these instructions.
-
Page 3: Safety Instructions
Trio Touch Safety Instructions Ensure that you read all of the safety instructions before operating this unit. Safety Considerations Ensure that the power cable and other connected cables are protected and are positioned so that they are not likely to be walked on, pinched or damaged. ... -
Page 4: Table Of Contents
Trio Touch Contents Safety Instructions …..…………………………………………………………………………….……………..….. Contents …..……..…..……………………………………………………………..…………….……………..……. TRIO TOUCH Micro System……………………………………………………………………….……………..… Remote Control…………………………………….…………………………………..…………….………………. Touch Screens……………………………………………………………………….……………...……………….. iPod Mode …………..…………………………………………….……………….……………...…………………. DAB+ Radio Mode………………………………...……………………………….……………...………………… FM Radio Mode …………………………..…………………………………………….……………...…………… Internet Radio Mode ………..……………………..…………………………………………….…………….….. Last FM…………..…………………………………………………………………….……………...……………... Music Player Mode (My Music)…………………………………………………….……………...………………. Aux-in Mode……………………………………………………………………….……………...………………….. Alarm………………………………………………………………………….……………...……………………….. Settings……………………………………………………………………….……………...……………………….. -
Page 5: Trio Touch Micro System

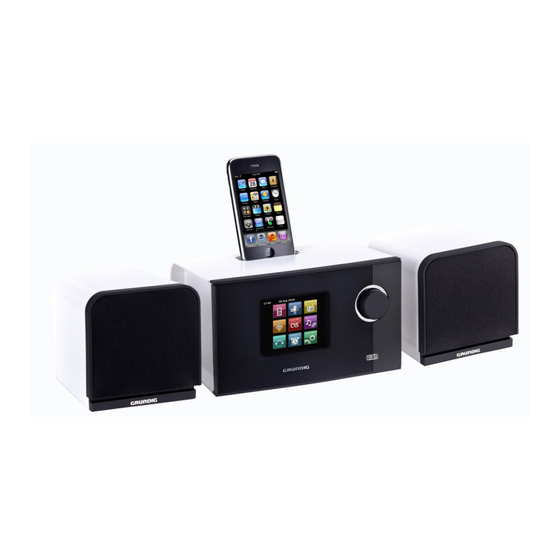

Trio Touch TRIO TOUCH Micro System Carefully remove your DAB+ Micro System from the box. You may wish to keep the packaging for future use. In the Box Inside the box you will find: DAB+ Micro System (Main Unit) ... - Page 6 Trio Touch TRIO TOUCH Micro System Volume Knob USB update Auxiliary Input LCD Display Optical Output DC Input F-Type Antenna Composite Video Output LAN Connector Speaker Jack Audio Output (R/L) Speaker Jacks Headphone Output...
- Page 7 Trio Touch Your DAB+ Micro System TRIO TOUCH Micro System Icon Function Press the Home Button to enter the Main Menu. Press again to return to play display. Press the Close Button to close the menu or current display. Press the Return Button to return to the previous screen. Press the Volume Button to select the Volume Setting.
- Page 8 Trio Touch TRIO TOUCH Micro System Icon Function Press the Next Button in iPod mode, to skip backwards to the previous track (or to the beginning of the song currently playing) in the current playlist. Press the Love It Button in Last FM mode to highlight a song you love and activate the Love function in Last FM to find songs that you may also like.
-
Page 9: Remote Control
Trio Touch Remote Control Icon Function Press the Standby Button to turn the on or off. Press the Mute Button to mute the sound (this will completely turn of the unit sound). Press again to turn sound back on. Snooze Press the Snooze Button to activate the snooze function when the alarm goes off. - Page 10 Trio Touch Remote Control Press the Ban It Button to Ban a song you don‟t like in Last FM, so you never have to hear it again. Press the Love It Button in Last FM mode to highlight a song you love and activate the Love function in Last FM to find songs that you may also like.
-
Page 11: Touch Screens
Trio Touch Touch Screens The Trio Touch Micro System touch screen displays four types of screens including; Menu, Now playing, Dialogue and Standby (Clock). You will come across all of these screens when using the Trio Touch and they are explained below. Please note: When text is too long to fit on the screen, it is first shown condensed, then, after a few seconds, slowly scrolls so that you can read it all. - Page 12 Trio Touch Touch Screens Each Menu screen has a Mode menu with each functions own specific settings and options. For example, the DAB+ radio mode menu has five options: Scan, Edit Favourites, DRC, Manual Tune and Prune Invalid Stations. The Dialogue screen is the screen that is displayed when the Trio Touch asks you to enter the relevant information and allows you to change the settings.
-
Page 13: Ipod Mode
Mode The first mode that is displayed on the Menu screen the iPod mode. Your Grundig Trio Touch Micro System will dock your iPod or iPhone. You will have full control and charging capabilities while you listen to your favourite tunes. You can control either your iPod or iPhone through your touch screen or remote control. -
Page 14: Dab+ Radio Mode
Trio Touch Using DAB+ Radio Gen; iPhone 4 To enter the DAB+ Radio mode, touch the DAB+ icon on the Menu screen. The unit will then display the DAB+ mode and play the last station listened to or the first station found after a DAB+ station scan has been conducted. Your DAB+ Radio will receive all DAB+ Digital Radio Stations (relevant to your location) and will display all DLS information broadcasted by the DAB+ Stations. - Page 15 Trio Touch DAB Radio Mode Now Playing Information While you are listening to your desired DAB+ station the Trio Touch screen will display the DLS (Dynamic Label Segment) information that is being broadcast by the station. You will receive real-time information such as the program name, track title and contact details.
-
Page 16: Fm Radio Mode
Trio Touch FM Radio Mode Selecting a Station To find and play a FM station, touch the Button to select the Auto Tune Function which will scan to the next available station by pressing the icons. The frequency display starts to run up or down as it scans the FM band and stops when it finds an FM Radio Station. -
Page 17: Internet Radio Mode
Trio Touch Internet Radio Mode To enter the Internet Radio Mode, touch the Internet Radio Icon from the Menu Screen and this will take you to the Internet Radio playing screen. Please Note: The station list menu is provided from the Internet radio portal, so it is only accessible when the Trio Touch is connected to the Internet. - Page 18 Trio Touch Internet Radio Mode A keyboard display with then appear and you will be able to enter a keyword by selecting characters as shown below. Once you have entered your keyword or title, press Search. Once search is complete a list of stations or podcast will appear scroll through the list to find the station you wish to play and press that station to play.
-
Page 19: Last Fm
Trio Touch Internet Radio Mode Internet Radios registered on the same account will share the same station information. Before favorites can be used, the radio has to be registered with the Internet Radio portal. Icon and “Favorite added‟ will be displayed on To store a playing station as a favorite, touch the Add Presets screen and the station will appear in the default favorites list. - Page 20 Trio Touch Last FM Mode Last FM Mode To add an account manually, select the Last.fm Menu Bar and then select Add new account. Here you will enter your account details including user name and password. To get the best out of Last.fm, you can 'scrobble' all the tracks that you've listened to, both with Music player and Last.fm modes) or a computer media player with the right software plug-ins.
- Page 21 Trio Touch Last FM Mode There are several types of ways you can enjoy your Last.fm Music Mode. To choose one, select the Last.fm menu and then select Station list. The following options are available: Your Library You Library will play all tracks „Scrobbled‟ from your profile, or tracks by artists you‟ve added to your library. You can edit this list on the Last.fm website.
-
Page 22: Music Player Mode (My Music)
Trio Touch Last FM Mode are user-generated, so there tend to be many spurious tags connected to only a few tracks, which may then give an insufficient content error). Pick a tag from the list of search results and select OK. History History will play the last tracks you have listened to, most recent first (you cannot select a track from the list and then listen to it again on demand). - Page 23 Trio Touch My Music Mode You can use the to move through the music tracks. Press and hold to rewind or fast forward while playing a track or press quickly to select previous or next track. Trio Touch can only play music and playlists. There is also a search function, which finds tracks in a similar way to Internet radio search.
-
Page 24: Aux-In Mode
Trio Touch My Music Mode 2. In WMP, add to the media library the audio files and folders you want to share with your Grundig Trio Touch Radio (Library > Add to Library). 3. Then in WMP mode on your PC or Mac, select the media sharing options (Library > Media sharing) to enable the radio and PC or Mac to share music files. -
Page 25: Alarm
Alarm Your Grundig Trio Touch Micro System has dual alarm function so you can set two alarms at once. The two versatile wake-up alarms have snooze facility (to let you sleep a little longer) and a sleep function (to turn the system off after a set period). -
Page 26: Settings
Trio Touch Settings The system Settings menu allows access to system settings and information such as Time Settings, Alarms Settings, EQ Settings, Network Settings and Miscellaneous Settings. Menus with more options will have a scroll bar. The scroll bar to the right of the screen shows if there are further options above or below those visible. Time Settings A range of time settings are available;... -
Page 27: Network Settings
Trio Touch Settings Network Settings Trio Touch remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. You can see the list of registered networks through the Network Setting option. Press the Network Setting option then select Network Profiles. -
Page 28: Factory Reset
Software Update and Check for Software Update As Grundig continually tries to improve our products to ensure you receive the highest quality product possible, there may be software upgrades available for this unit from time to time. The SW Update Option in the System Menu will allow you to conduct upgrades when required. -
Page 29: Product Specifications
Trio Touch Product Specifications Model Number GMSX1000DABIP Speaker Power 2 x 10W RMS Power supply AC 100V-240V, 50/60Hz, DC 12V/3A FM radio with RDS, tuning range from 87.5MHz to Bandwidth 108MHz DAB+ radio, tuning range from 174MHz to 240MHz ... -
Page 30: Troubleshooting
Trio Touch Troubleshooting If a fault occurs, first check the points listed below before taking the radio for repair. If you are unable to solve a problem by following the below hints we suggest you consult you retailer or service professional. WARNING: Under no circumstances should you try to repair the unit yourself, as this would invalidate the warranty. -
Page 31: Warranty
In the unlikely event that your product fails to work normally, please contact the GRUNDIG Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 32 Trio Touch PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au...
