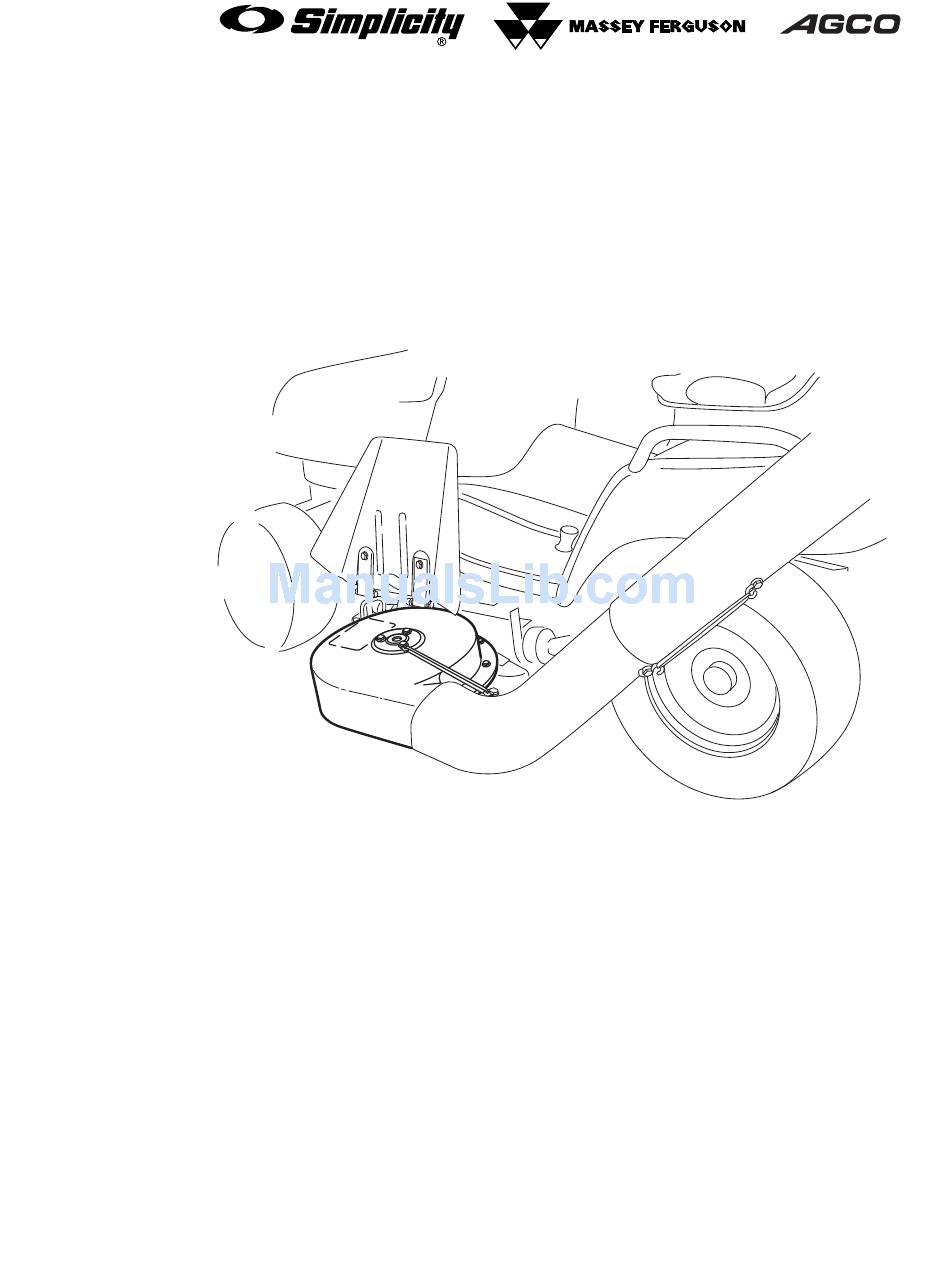

- Page 1 ATTACHMENT OPERATOR’S MANUAL Turbo Vacuum System For 48” Mower Decks Mfg. No. Description 1694496 Turbo Vacuum Collection System (for use with Legacy XL / 2000 / 2900 Series) 1726315-02 Rev 01/2007 TP 100-3922-02-AT-SMA...
-
Page 3: Table Of Contents
Safety Rules & Information General Warnings...2 Safety Decals ...2 General Operating Information Before Operation ...3 Mowing with the Turbo ...3 Operating without the Turbo ...3 Recommended Accessories...3 After Operation ...3 Initial Setup & Assembly Prepare Deck, Belt Cover & Support Arm ...4 Install Stacked Arbor Pulley...4 Assemble &... -
Page 4: Safety Rules & Information
Safety Rules & Information Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mow- ing deck is capable of amputating hands and feet and throwing objects. -
Page 5: Before Operation
BEFORE OPERATION Clear the lawn of all sticks, stones, wire and other debris which may be caught or thrown by the mower blades. Check grass condition. If wet, wait until later in the day. If grass is wet, as the grass catcher is likely to become plugged. -
Page 6: Initial Setup & Assembly
Initial Setup & Assembly Figure 1. Deflector, Stone Guard, and Cover A. Deflector C. Belt Cover B. Stone Guard INITIAL SETUP & ASSEMBLY Prepare the Deck, Belt Cover, & Support Arm Assembly 1. Remove the mower deck from the tractor. Refer to he tractor operator’s manual for mower installation and removal procedures. -
Page 7: Assemble & Install Deflector
Assemble & Install Deflector 1. The two holes for mounting the deflector must be drilled out. Turn the deflector over, and notice that these two holes are started. Finishing drilling the two 11/32 inch holes (See Figure 4). 2. See Figure 4. Connect the deflector (A) to the deflec- tor brackets (O) with two 5/16-18 x 7/8 screws (F), 5/16 lockwashers (G), and 5/16 nuts (H). -
Page 8: Assemble Turbo
Initial Setup & Assembly Assemble Turbo 1. Assemble the turbo. Install the bracket (A, Figure 5) and upstop (B) as follows: NOTE: Upstop (B. Figure 5) has short and long leg. The difference is the thickness of bracket (A). Place long leg on housing and short leg on top of bracket. -
Page 9: Attaching The Turbo
ATTACHING THE TURBO 1. Lift up the deflector. 2. Engage the stone guard hook at the bottom of the turbo as shown in Figure 8. 3. Slide turbo assembly as far rearward as possible so that the front turbo edge is tight against the front mower deck edge. -
Page 10: Adjustments
Attaching & Removing the Turbo ADJUSTMENTS Pulley Adjustments If the mower deck belt has stretched over time, the stacked idler pulley (B, Figure 10) may need to be moved to the outer hole in the mower deck to take up the belt slack. -
Page 11: Front Bracket Hole Template
Line Up With Existing Square Hole Line up Square Hole on Template to square Hole of Deck Line up “Edge of Mower” Line on Template to Edge Mark and Drill of Mower Two 13/32” Holes Front Bracket Hole Template Line Up With Edge of Mower... - Page 16 M A N U F A C T U R I N G , I N C . Simplicity Mfg. Inc. 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.SimplicityMfg.com Briggs & Stratton Yard Power Products Group Copyright ©...
