Other functions

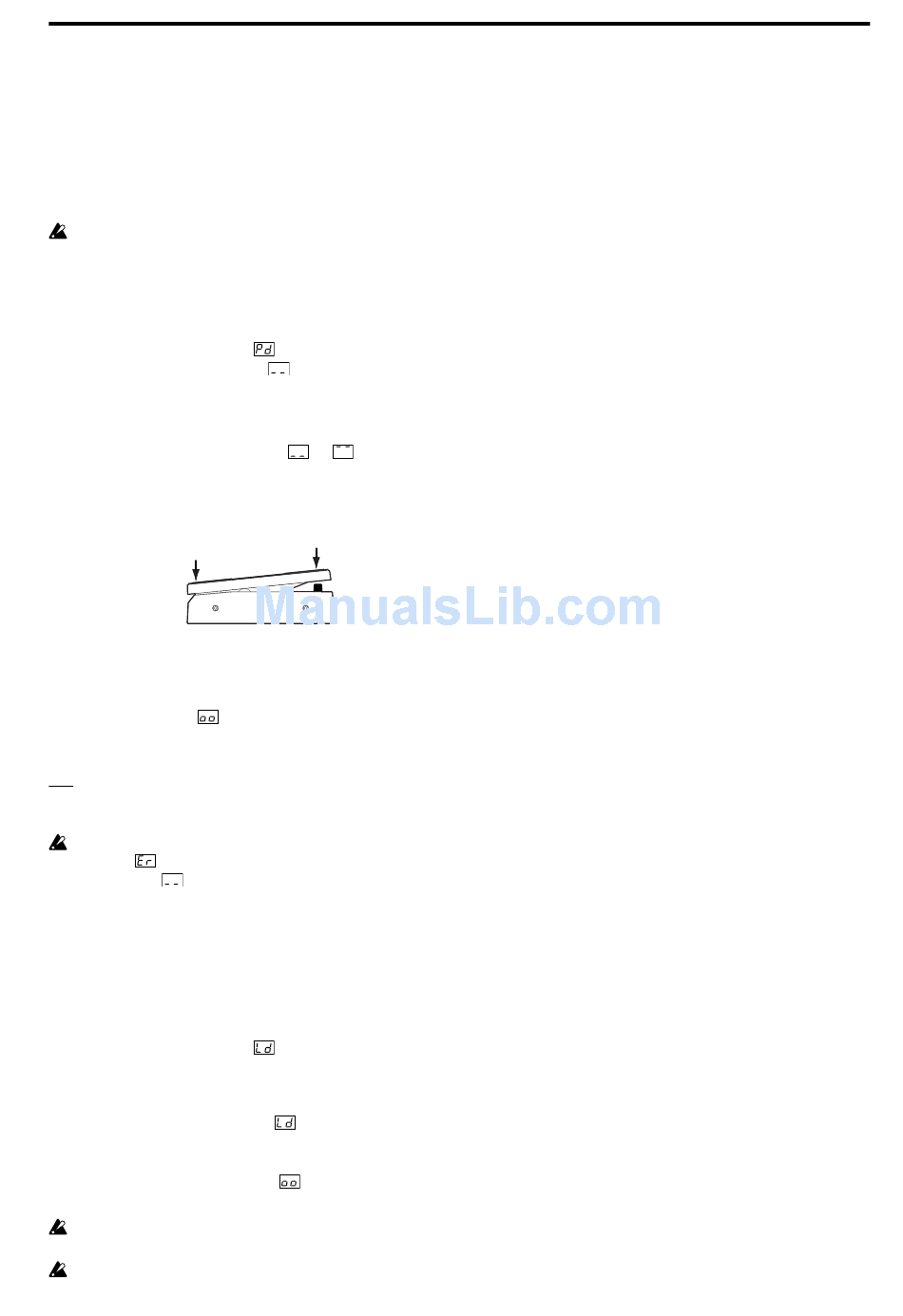

Calibrating (adjusting) the
expression pedal
If the expression pedal is not working properly,
please perform the procedure described below.
When calibrating the pedal, use your hand because
accurate adjustments may not be possible if you
use your foot to operate the pedal.
1. While simultaneously holding down the FUNC-
TION button and the PEDAL FX button, turn on
the power.
The display will indicate
second, and then indicate
2. Slowly move the pedal back. When it stops, take
your hand off the pedal and press the PEDAL FX
button.
The display will change from
If you press the MASTER (CANCEL) during the
calibration operation, calibration will be halted
and the program number will appear.
2. press slowly
3. Slowly move the pedal forward. When it stops,
take your hand off the pedal and press the
PEDAL FX button.
When the adjustment has been completed, the
display will blink , and then the program
number will appear. Check the pedal to make
sure the settings are correct.
TIPS For example if you assign PEDAL FX to VOLUME
and set VOL PEDAL MIN to "0", it will be easy to
verify the MIN level when the pedal is fully returned.
If the calibration operation fails, the display will
indicate , and you will return to the display before
calibration ( ). If repeated attempts are unsuc-
cessful, it is possible that the AX10A has malfunc-
tioned. Contact your dealer.
Restoring programs to
the factory settings
1. While holding down the WRITE button, turn on
the power.
The display will indicate
If you decide to start up normally without loading
the factory settings, press either of the MASTER
(CANCEL) buttons.
2. While the display indicates
button. The factory programs will be loaded into
the user area (0.1–9.4). When loading is com-
pleted, the display will blink
program number will appear.
Never turn off the power while this operation is in
progress.
Be aware that if you reload the preset programs, all
previously written programs will be overwritten.
for approximately one
.
to .
3. press slowly
.
, press the WRITE
, and then the

Troubleshooting

If the AX10A does not operate as you expect, please
check the following points first. If this does not
resolve the problem, contact your dealer.
Power does not turn on.
❑ Are batteries installed? Alternatively, is the AC
adapter connected to an AC outlet? (p.8)
❑ Is a mono phone plug cable connected to the
INPUT jack? (p.8)
No sound
❑ Are your guitar, amp and/or headphones con-
nected to the correct jacks? (p.8)
❑ Is your amp turned on and set correctly?
❑ Are any cables broken?
❑ Is the master level of the AX10A set to "0" or to a
low level? (p.7)
❑ Is the program volume of the AX10A set to "0" or
to a low level? (p.11)
❑ Is the volume of your instrument turned down?
❑ Is the AX10A muted?
No effect is heard
❑ Is the AX10A bypassed? (p.9)
❑ Are the effects used in the program turned on?
Pedal does not work
❑ Have you selected a program which uses an
expression pedal effect? (p.10,12)
❑ Is the pedal indicator lit?
Cannot write (Display indicates "Er")
❑ Did you turn the power off while the preset
programs were being loaded?
Reload the preset programs. (p.13)
13
