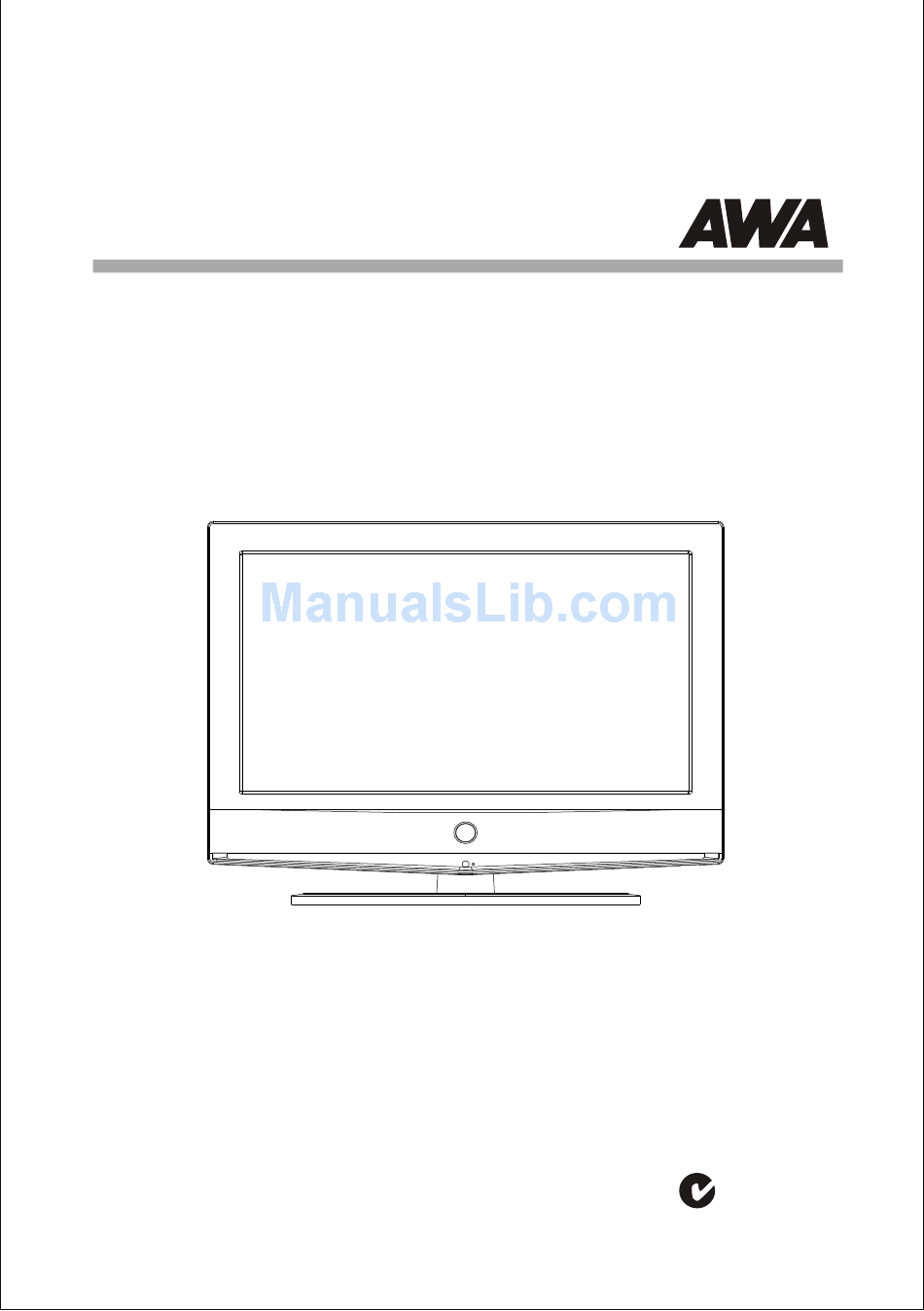

- Page 1 MHDV3703-F4 37" (94cm) FULL HD LCD Television USER MANUAL Please read this User Manual carefully to ensure use of this product and keep this manual for future reference N294...
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS....................2 INSTALLATION........................3 Wall Mounting Installation Guidelines................4 ACCESSORIES........................5 FRONT PANEL.........................5 KEY BOARD(RIGHT SIDE)....................5 REAR PANEL........................5 ANTENNA CONNECTION....................6 CONNECTING TO PC.......................7 PC PRESET........................7 CONNECTING TO AV EQUIPMENT..................8 REMOTE CONTROL......................9 BATTERY INSTALLATION....................9 KEYS FUNCTION......................9 OPERATION........................10 BASIC OPERATION......................1 0 TELETEXT........................11 EPG..........................12 MENU OPERATION...................... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTION 1.Read these safety instructions. 2.Keep these safety instructions. INSTALLATION 3.Heed all warnings. 4.Follow all safety instructions. Locate the TV in the room where light does not strike 5.Do not use this apparatus near water. the screen directly 6.Clean only with dry cloth. -
Page 5: Installation
INSTALLATION Never stand on, lean on, or suddenly push the television or High voltages are used in the operation of this television its stand. You should pay special attention to children. receiver. Do not remove the cabinet back from your set. Serious injury may result if it falls. -
Page 6: Wall Mounting Installation Guidelines
For wall mounting with the optional bracket, please read the following instruction and the bracket instruction. Make sure qualified service personnel perform the operation. AWA bears no responsibility for improper mounting that results in accident or injury. Wall Mounting Holes Spacing and Location... -
Page 7: Accessories
INSTALLATION ACCESSORIES KEYBOARD AC Power Cord......1 Infrared Remote Control....1 SOURCE User s M anual ......1 MENU Battery(AAA)......2 Front panel VOL+ VOL- 1 SOURCE Display the input source menu. 2 MENU D isplay main MENU. 3 CH+/CH- In TV mode press CH+ or CH- to change the channel up and down. -
Page 8: Antenna Connection
INSTALLATION ANTENNA CONNECTION Note: Aerial connections:IEC(female). Input impendance:75 unbalanced. -
Page 9: Connecting To Pc
INSTALLATION STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch to VGA mode. 4.Power on the VGA. This sequence is very important. AV OUTPUT AUDIO OUTPUT... -
Page 10: Connecting To Av Equipment
INSTALLATION INSTALLATION AV EQUIPMENT AV EQUIPMENT This TV provides two groups of A V ,one S-Video,one group of YPbPr for convenient connection This TV provides two groups of A V ,one S-Video,one group of YPbPr for convenient connection to VCR,DVD or other video equipment,two group of HDMI for HD signal input Please refer to to VCR,DVD or other video equipment,two group of HDMI for HD signal input Please refer to the owner s manual of the equipment to be connected as well. -
Page 11: Remote Control
REMOTE CONTROL 1:POWER:To set the TV to standby or power KEYS FUNCTION 2:NUMERIC KEY: For direct access to Channels. 3:TV MENU:To display TV menu. POWER MUTE 4:CURSOR:To move within the menu. 5:CH.LIST:To display the channels list. AUDIO 6:VOL+/- :To adjust sound level. RECALL 7:PIC:To switch picture mode. -
Page 12: Operation
OPERATION BASIC OPERATION TURN ON THE UINT Press the ON/OFF Switch then press the POWER button on the remote control to switch on the power. The power indicator will light up in green colour, press the POWER button again to switch off the power, and the indicator will change to red. -
Page 13: Teletext
OPERATION TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language (cable networks, satellite channels, etc.) Press : You Will obtain:... -
Page 14: Epg
OPERATION 1).Auto Tuning: Search all the channels automatically EPG (Electronic Programme Guide) (ATV, DTV & Radio) The EPG (Electronic Programme Guide) menu is used to look at what is being broadcast on a DTV Please select country first or Radio channel at a later point in time. Press the then select Start to update info EPG button to access the EPG menu, t... - Page 15 OPERATION 2. PICTURE MENU Storage To: To select the channel number you want to save to. The second item of the menu is PICTURE menu. System: To select the TV sound system. You can adjust picture effect here, including contrast, Current CH: To select the current channel.
- Page 16 OPERATION 3.SOUND MENU 6.LOCK MENU The third item of the menu is the SOUND menu. The sixth item of the menu is the LOCK menu. You can adjust the sound effect here, including You can lock system, set password, block program, treble, bass and balance as well as other sound set parental guidance, restore factory default and set functions.
-
Page 17: Troubleshootings
TROUBLESHOOTING Problem Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost or connection Normal audio electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture Mute connections are not correct) Power cord is not inserted Power switch is not opened Contrast and brightness/volume... -
Page 18: Technical Specification
TECHNICAL SPECIFICATIONS LCD : Viewin g Picture Size(diagonal) Resolution 1920x1080 Aspect Ratio 16:9 16.7M Display colours 450 cd/m Brightness Contrast ratio 2000:1 Response time 178(H)/178(V) Viewing angle Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
