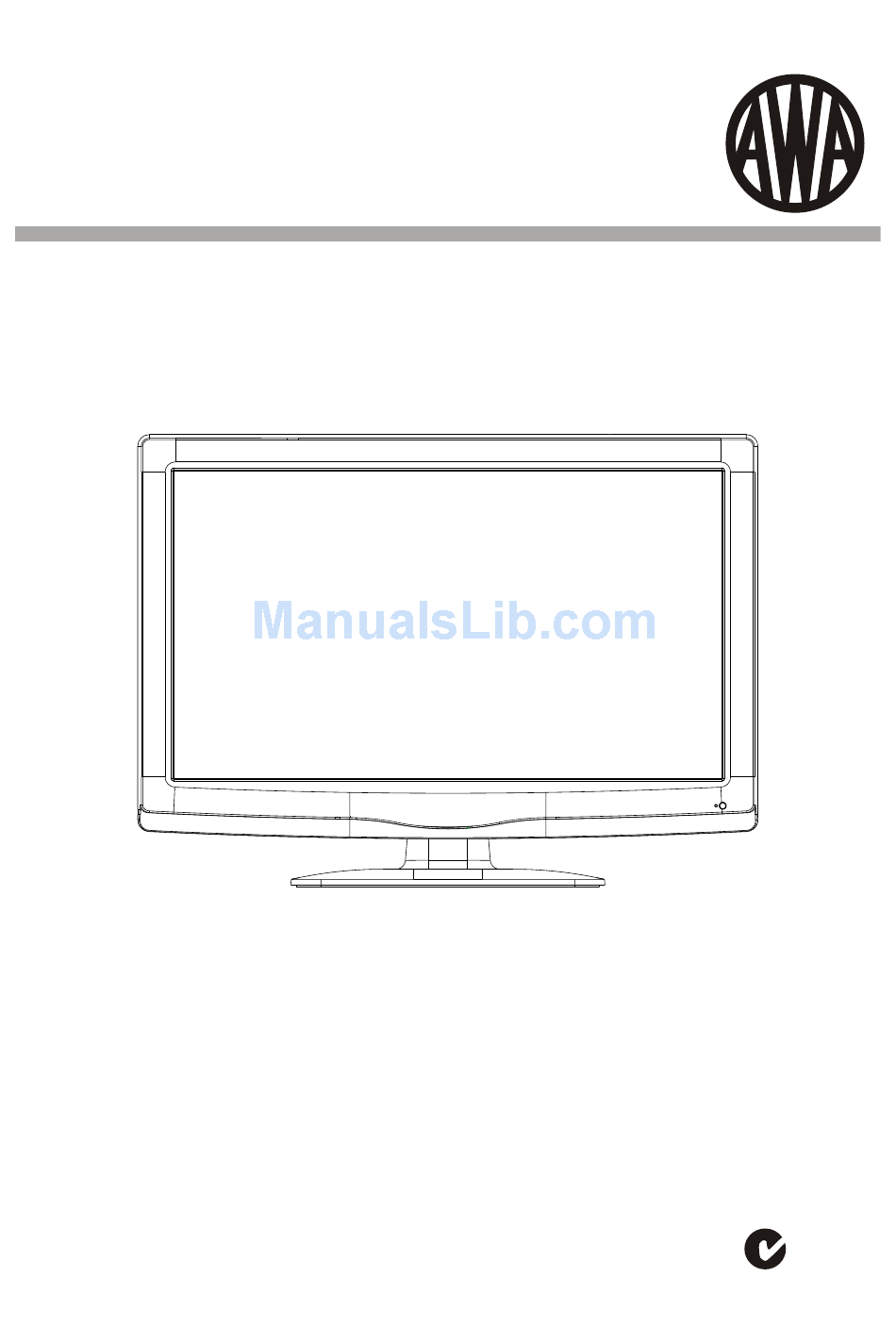

- Page 1 MSDV3211-O3 32" (81cm) HD READY LCD Television USER MANUAL Thank you for purchasing this LCD TV. Before connection and operation of this product please read the manual carefully and completely. Please keep this manual for future reference. N294...
-
Page 3: Table Of Contents
Contents INTRODUCTION................1 SAFETY AND WARNINGS.............2-4 STAND INSTALLATION GUIDE............5 WALL MOUNTING INSTALLATION GUIDLINES......... 6 INSTALLATION................7 -12 REMOTE CONTROL..............13-14 OPERATION................15-19 TROUBLE SHOOTING..............20 TECHNICAL SPECIFICATION............21... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. CAUTION 2) Keep these instructions. RISK OF ELECTRIC SHOCK DO NOT OPEN! 3) Heed all warnings. CAUTION 4) Follow all instructions. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO 5) Do not use this apparatus near water. NOT REMOVE COVER (OR BACK).NO USER 6) Clean only with dry cloth. - Page 5 SAFETY AND WARNINGS Never stand on, lean on, or suddenly push the High voltages are used in the operation of this television or its stand. You should pay special television receiver. Do not remove the cabinet attention to children. Serious injury may result if it back from your set.
-
Page 6: Safety And Warnings
SAFETY AND WARNINGS CAUTION Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual. All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD PANEL or CABINET , the power cord should be pulled out from the receptacle, then wipe the TV with a dry soft cloth. -
Page 7: Stand Installation Guide
STAND INSTALLATION GUIDE This STAND INSTALLATION GUIDE is provided to help you easily install the stand .Please carefully follow Step 1 through Step 3. Open the box and find the parts Open the box and find the following parts. Screws Packing - Stand x1 pc - Screws x4 purchase... -
Page 8: Wall Mounting Installation Guidlines
INSTALLATION For wall mounting with the optional bracket, please read the following instruction and the bracket instruction. Make sure qualified service personnel perform the operation. bears no responsibility for improper mounting that results in accident or injury. DICK SMITH Wall Mounting Holes Spacing and Location 400 mm 4 Wall mount M4 Screws Base Stand Disassemble Illustration... - Page 9 INSTALLATION ACCESSORIES AC Power Cord......1 Infrared Remote Control....1 User s M anual ......1 Battery(AAA)......2 FRONT PANEL Remote control sensor. Indicator LED: GREEN POWER ON. STANDBY. Key board.
-
Page 10: Key Board
INSTALLATION KEY BOARD SOURCE MENU VOL+ VOL- STANDBY 1 SOURCE Display the input source menu. 2 MENU D isplay main MENU. 3 CH+/CH- In TV mode press CH+ or CH- to change the channel up and down. In MENU mode, press CH+ or CH- to select items . - Page 11 INSTALLATION ANTENNA CONNECTION Note: Aerial connections:IEC(female). Input impendance:75 unbalanced.
- Page 12 INSTALLATION CONNECTING TO PC STEPS: Be sure both the TV and computer are set to Power off. 1.Connect VGA and audio cable. 2.Connect the power cord. 3.Power on the TV, switch the input source to VGA mode. 4.Power on the PC. This sequence is very important.
- Page 13 INSTALLATION PC PRESET PRESET MODE V.Freq.(Hz) H.Freq.(KHz) RESOLUTION 720*400 31.47 640*480 31.47 800*600 35.156 800*600 37.88 800*600 48.08 48.36 1024*768 1024*768 56.48 -11-...
- Page 14 INSTALLATION CONNECTING TO AV EQUIPMENTS This TV provides two group of AV, one group of YPbPr for convenient connectionto VCR, DVD or other video equipment. Please refer to the owner s manual of the equipment to be connected as well. You can use the input terminals on TV set rear as follows.
-
Page 15: Remote Control
REMOTE CONTROL REMOTE CONTROL 1:POWER:Press to turn the unit on or off. 2:NUMERIC KEY:Press for direct access to channels. 3:TV MENU:Press to display TV Main Menu. POWER MUTE 4:CURSOR:Press to scroll through the Menu. AUDIO 5:CH.LIST:Press to display the channel list. 6:VOL+/- :Press to adjust the sound level. -
Page 16: Remote Control
REMOTE CONTROL TELETEXT Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.) Press: You will obtain :... -
Page 17: Operation
OPERATION Installation Guide Please select an OSD Language Cesky English Magyar Polski Fran ais Espanol Dansk Hrvatski Nederlands Portugues Deutsch Italiano Norsk Pycck Country Australia Bulgaria Denmark Germany Italy Austria Croatia Finland Greece Luxembourg Belgium Czech France Hungary Netherlands This screen only appear when the TV first time turn on or reset to factory settings.You can choose language and country, auto tuning programs .And after tuning the screen will skip to the first DTV program. - Page 18 OPERATION 2).DTV Manual tuning: You can select a DTV channel then find the program in this channel. Pls press to select the channel , then press OK to search the programs . NOTE: Bad Normal Good means signal intensity. DTV Manual Tuning VHF CH Press OK to search Nomal...
-
Page 19: Sound Menu
OPERATION Favourite Press to choose the program , press FAV button , it will show on the right side of the program.Choose the FAV program , press FAV button again , you can cancel the FAV, will disappear . Once your favorite group is created, you can press the FAV key to quickly access your favourite channel. 2. -
Page 20: Option Menu
OPERATION 5.OPTION MENU To enter the Option Menu, press MENU button and the press buttons to select the Option Menu. Once in Option Menu, press buttons to select the settings you wish to adjust. Press MENU button to return to the Main Menu. OSD Language English Audio Languages Subtitle Languages... - Page 21 OPERATION Sample1.ts Resolution: 720x576 AudioTrack: ½ Subtitle: Size: 30574 KBytes Close 8.EPG Menu(Electronic Program Guide). The EPG Menu is used to look at what is being broadcasted in DTV or Radio modes. Press the EPG Button to access the EPG Menu. You will receive detailed program information of the channel you are currently watching as well as the 7 Day Program guide.
-
Page 22: Trouble Shooting
TROUBLE SHOOTING Trouble phenomenon Symptom Inspection Check Picture Audio antenna position, direction Snow Noise or connection antenna position, direction Ghost Normal audio or connection electronic equipment,car/ Interference Noise motorcycle,fluorescent light Volume(check if mute is activated or if the audio system Normal Picture connections are not correct) Mute... -
Page 23: Technical Specification
INTRODUCTION LCD : Viewing Picture Size(diagonal) 32"(81cm) Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.7M 420 CD/M Brightness Contrast ratio 3000:1 6.5 ms Response time 178 (H)/178 (V) Viewing angle Digital TV: DVB-T TV system Analog TV: PAL/SECAM Audio: MPEG2 Audio Layer I&II DVB-T decode Video: MPEG2 Transport MP@HL Demodulator : COFDM...
