Page 1: Indoor Unit
R410A INDOOR UNIT 1. WALL MOUNTED TYPE : AS B09LDC AS B12LDC AS B18LDC D1D_AS011E/03 2008.02.20... -
Page 2: Front View
1. FEATURE MODEL : AS B09LDC AS B12LDC AS B18LDC (AO S09/12LD) (AO S18LD) FEATURES Energy saving Rank A (09/12 TYPE) Europe energy saving Rank A achieved Original plasma air cleaning unit effectively cleans the air in the room. Negatively-charged dust, etc. are attracted Dirty Air to the earth section and are collected by a bacteria eliminating &... - Page 3 Easy maintenance Easy maintenance and always clean. Troublesome maintenance has been made easy. Since the front panel is easy to remove, maintenance is also easy. Inner drying operation and plasma effect This model is equipped with an inner drying function. After the power is turned off, the dry operation starts inside the air conditioner.
-
Page 4: Remote Controller
2. REMOTE CONTROLLER 2-1. WIRELESS REMOTE CONTROLLER FEATURES Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible. Four kinds of timers. Easy operation. Built-in timers Select from four different timer programs (On/Off/Program/Sleep). Program timer The program timer operates the ON and OFF timer once within a 24 hour period. Sleep timer The sleep timer function automatically corrects the temperature thermostat setting according to the time setting to prevent excessive cooling and heating while sleeping. -
Page 5: Specification
FUNCTIONS SLEEP button MASTER CONTROL button SET TEMP . button ( COIL DRY button AIR CLEAN button Signal Transmitter TIMER MODE button TIMER SET ( ) button FAN CONTROL button START/STOP button SET button SWING button RESET button TEST RUN button This button is used when installing the conditioner, and should not be used un- der normal conditions, as it will cause the... -
Page 6: Specifications
3. SPECIFICATIONS WALL MOUNTED Type INVERTER HEAT PUMP Model name AS B09LDC AS B12LDC Power source 230V 50Hz Available voltage range 198 - 264V 50Hz Cooling European energy label Heating 2.60 3.50 Rated BTU/h 8,900 11,900 Cooling Min.-Max. 0.5 - 3.7 0.9 - 4.3 Min.-Max. - Page 7 WALL MOUNTED Type INVERTER HEAT PUMP Model name AS B18LDC Power source 230V 50Hz Available voltage range 198 - 264V 50Hz Cooling European energy label Heating 5.20 Rated BTU/h 17,700 Cooling 0.9 - 5.7 Min-Max BTU/h 3,100 - 19,400 Capacity 6.25 Rated BTU/h...
-
Page 8: Installation Place
4. DIMENSIONS MODEL : AS B09LD, AS B12LD, AS B18LD (Unit : mm) INSTALLATION PLACE Wall hook bracket 5 cm or more 6 cm or more 9 cm or more 150 cm or more 230 cm (Wall cap) or more - (01 - 07) -... -
Page 9: Wiring Diagrams
5. WIRING DIAGRAMS MODEL : AS B09LD, AS B12LD, AS B18LD Controller PCB Assy WHITE WHITE YELLOW YELLOW CN201 BLUE BLUE WHITE WHITE CN101 WHITE WHITE WHITE WHITE WHITE WHITE ORANGE WHITE YELLOW STEPPING PINK MOTOR BLUE BLUE YELLOW BLACK or GRAY WHITE BLACK or GRAY BLACK... -
Page 10: Capacity Table
6. CAPACITY TABLE 6-1. COOLING CAPACITY MODEL : AS B09LD Indoor temperature °CDB °CWB °CDB 1.93 1.34 0.29 2.14 1.35 0.30 2.22 1.47 0.30 2.36 1.48 0.30 2.44 1.59 0.30 2.58 1.59 0.30 2.73 1.69 0.31 2.29 1.60 0.48 2.56 1.61 0.49 2.64 1.75 0.49... -
Page 11: Heating Capacity
6-2. HEATING CAPACITY MODEL : AS B09LD 10.1 Indoor temperature °CDB °CDB °CWB 3.41 1.48 3.33 1.51 3.25 1.54 3.17 1.57 3.09 1.60 4.05 1.62 3.95 1.65 3.86 1.68 3.76 1.72 3.66 1.75 4.56 1.70 4.45 1.74 4.34 1.77 4.23 1.81 4.12 1.84... -
Page 12: Fan Performance
7. FAN PERFORMANCE 7-1. AIR VELOCITY DISTRIBUTION MODEL : AS B09LD Unit : m/s TOP VIEW Note : FLOW CONTROL PANEL : Horiz. Fan speed : High LOUVER : Center Operation mode :FAN Voltage : 230V Unit : m/s TOP VIEW FLOW CONTROL PANEL : Horiz. - Page 13 MODEL : AS B12LD Unit : m/s TOP VIEW Note : FLOW CONTROL PANEL : Horiz. Fan speed : High LOUVER : Center Operation mode :FAN Voltage : 230V Unit : m/s TOP VIEW FLOW CONTROL PANEL : Horiz. LOUVER : Right & Left Unit : m/s SIDE VIEW FLOW CONTROL PANEL : Horiz.
- Page 14 MODEL : AS B18LD Unit : m/s TOP VIEW Note : FLOW CONTROL PANEL : Horiz. Fan speed : High LOUVER : Center Operation mode :FAN Voltage : 230V Unit : m/s TOP VIEW FLOW CONTROL PANEL : Horiz. LOUVER : Right & Left Unit : m/s SIDE VIEW FLOW CONTROL PANEL : Horiz.
- Page 15 7-2. AIR FLOW MODEL : AS B09LD COOLING Number of Fan speed rotations Airflow (r.p.m) HIGH 1300 1120 QUIET HEATING Number of Fan speed rotations Airflow (r.p.m) HIGH 1390 1200 1000 QUIET - (01 - 14) -...
- Page 16 MODEL : AS B12LD COOLING Number of Fan speed rotations Airflow (r.p.m) HIGH 1370 1150 QUIET HEATING Number of Fan speed rotations Airflow (r.p.m) HIGH 1440 1200 1000 QUIET - (01 - 15) -...
- Page 17 MODEL : AS B18LD COOLING Number of Fan speed rotations Airflow (r.p.m) HIGH 1560 1320 1090 QUIET HEATING Number of Fan speed rotations Airflow (r.p.m) HIGH 1560 1370 1170 QUIET - (01 - 16) -...
- Page 18 8. OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : AS B09LD COOLING HEATING NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 High High NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 Quiet Quiet NC-15 NC-15 1,000 2,000 4,000 8,000...
- Page 19 MODEL : AS B18LD COOLING HEATING NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 High High NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 Quiet NC-25 NC-25 Quiet NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency,Hz Octave band center frequency,Hz - (01 - 18) -...
-
Page 20: Sound Level Check Point
8-2. SOUND LEVEL CHECK POINT - (01 - 19) -... -
Page 21: Electric Characteristics
9. ELECTRIC CHARACTERISTICS Model Name AS B09LD AS B12LD AS B18LD Voltage Power Supply Frequency Max Operating Current 10.0 13.5 Starting current Circuit breaker 15.0 20.0 20.0 *1)Wiring Spec. Connection Cable 1.5 - 2.5 1.5 - 2.5 2.0 - 3.5 Limited wiring length *1) Wiring Spec. -
Page 22: Safety Devices
10. SAFETY DEVICES Model Protection form AS B09LD AS B12LD AS B18LD 3.15A 250V Circuit protection Current fuse (PCB) 3A 250V 102°C Terminal protection Current (thermal) fuse °C OFF Fan motor protection Thermal protection program °C ON - (01 - 21) -... -
Page 23: Optional Parts
11. OPTIONAL PARTS Exterior Parts name Model No. Summary Negatively-charged dust, etc. are attracted to the earth Air-cleaning and UTR-FA14 section and are collected by a deodorizing filter bacteria eliminating & deodorizing filter. - (01 - 22) -... -
Page 24: Outdoor Unit

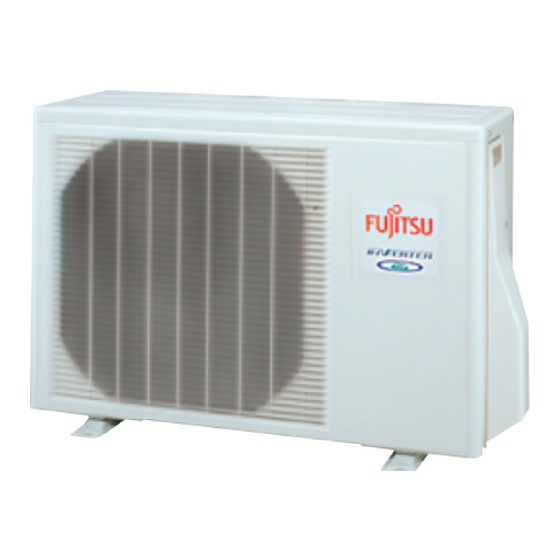

R410A OUTDOOR UNIT 2. SINGLE TYPE : AO S09LDC AO S12LDC AO S18LDC D1D_AO012E/02 2007.11.26... - Page 25 1. SPECIFICATIONS Type INVERTER HEAT PUMP Model name AO S09LDC AO S12LDC Power source 230V 50Hz Available voltage range 198 - 264V 50Hz Starting current Cooling 1,970 1,830 Airflow rate Heating 1,820 1,830 Type × Q'ty Propeller fan × 1 Motor output Cooling Sound pressure level...
- Page 26 Type INVERTER HEAT PUMP Model name AO S18LDC Power source 230V 50Hz Available voltage range 198 - 264V 50Hz Starting current Cooling 2,000 Airflow rate Heating 1,910 Type × Q'ty Propeller fan × 1 Motor output Cooling Sound pressure level dB(A) Heating Dimensions (H ×...
-
Page 27: Installation Place
2. DIMENSIONS MODEL : AO S09LD, AO S12LD (Unit : mm) Top view Front view Side view INSTALLATION PLACE 100 mm or more 100 mm or more 200 mm or more If the space is larger that is stated, the condition will be the same as that are no obstacles. - (02 - 03) -... - Page 28 MODEL : AO S18LD (Unit : mm) Top view Front view Side view Air flow Bottom view INSTALLATION PLACE 100 mm or more 100 mm or more 300 mm or more If the space is larger that is stated, the condition will be the same as that are no obstacles. - (02 - 04) -...
-
Page 29: Refrigerant Circuit
3. REFRIGERANT CIRCUIT MODEL : AO S09LD, AO S12LD Heat exchanger 3-Way ( INDOOR ) valve Muffler 2-Way valve 4-Way valve Strainer Expansion valve Strainer Heat exchanger ( OUTDOOR ) AO S09LDC : 2 pass AO S12LDC : 4 pass Cooling Heating Refrigerant pipe diameter... - Page 30 MODEL : AO S18LD Heat exchanger 3-Way ( INDOOR ) valve Muffler 2-Way Sub-heat valve exchanger ( INDOOR ) 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 1/2"...
-
Page 31: Wiring Diagrams
4. WIRING DIAGRAMS MODEL : AO S09LD, AO S12LD PCB (MAIN) REACTOR REACTOR COMPRESSOR R(U) WHITE WHITE S(V) WHITE WHITE BLACK C(W) BLACK THERMISTOR (PIPE) BLACK BLACK BLACK CN800 CN71 MOTOR BROWN WHITE BROWN YELLOW BLUE THERMISTOR (DISCHARGE PIPE) THERMISTOR (OUTDOOR TEMP.) BLACK CN70 BROWN... - Page 32 MODEL : AO S18LD REACTOR YELLOW YELLOW R(R) WHITE COMPRESSOR WHITE WHITE BLACK S(S) C(T) BLACK PIPE TEMP. THERMISTOR BLACK BLACK BLACK FAN MOTOR CN800 CN71 BROWN WHITE BROWN YELLOW BLUE DISCHARGE TEMP. THERMISTOR OUTDOOR TEMP. THERMISTOR BLACK CN70 BROWN BLACK BLUE EXPANSION VALVE...
-
Page 33: And Height Difference
5. COEFFICIENT OF COMPENSATION FOR PIPE LENGTH AND HEIGHT DIFFERENCE MODEL : AO S09LD, AO S12LD, AO S18LD Pipe length (m) COOLING 0.953 0.950 0.983 0.968 0.966 Indoor unit is upper 0.988 0.987 0.972 0.970 than outdoor unit. 0.992 0.992 0.991 0.976 0.974... -
Page 34: Additional Charge Calculation
6. ADDITIONAL CHARGE CALCULATION MODEL : AO S09LD Refrigerant type R410A Refrigerant amount REFRIGERANT CHARGE Pipe length 20g/m Additional charge 0 (Chargeless) +100 MODEL : AO S12LD Refrigerant type R410A 1,050 Refrigerant amount REFRIGERANT CHARGE Pipe length 20g/m Additional charge 0 (Chargeless) +100 MODEL : AO S18LD... -
Page 35: Air Flow
7. AIR FLOW MODEL : AO S09LD COOLING Number of rotations Airflow (r.p.m) 1970 1159 HEATING Number of rotations Airflow (r.p.m) 1820 1071 MODEL : AO S12LD COOLING Number of rotations Airflow (r.p.m) 1830 1077 HEATING Number of rotations Airflow (r.p.m) 1830 1077... - Page 36 MODEL : AO S18LD COOLING Number of rotations Airflow (r.p.m) 2000 1177 HEATING Number of rotations Airflow (r.p.m) 1910 1124 - (02 - 12) -...
-
Page 37: Operation Noise
8. OPERATION NOISE 8-1. NOISE LEVEL CURVE MODEL : AO S09LD COOLING HEATING NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000... - Page 38 MODEL : AO S18LD COOLING HEATING NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency,Hz Octave band center frequency,Hz - (02 - 14) -...
- Page 39 8-2. SOUND LEVEL CHECK POINT - (02 - 15) -...
- Page 40 9. ELECTRIC CHARACTERISTICS Model Name AO S09LD AO S12LD AO S18LD Voltage Power Supply Frequency Starting Current - (02 - 16) -...
- Page 41 10. SAFETY DEVICES Model Protection form AO S09LD AO S12LD AO S18LD Current fuse 20A 250V (NEAR THE TERMINAL) Circuit protection 15A 250V Current fuse (MAIN PRINTED CIRCUIT BOARD) 3.15A 250V OFF : 135 °C OFF : 100 °C Fan motor protection Thermal protection program ON : 95 °C...
