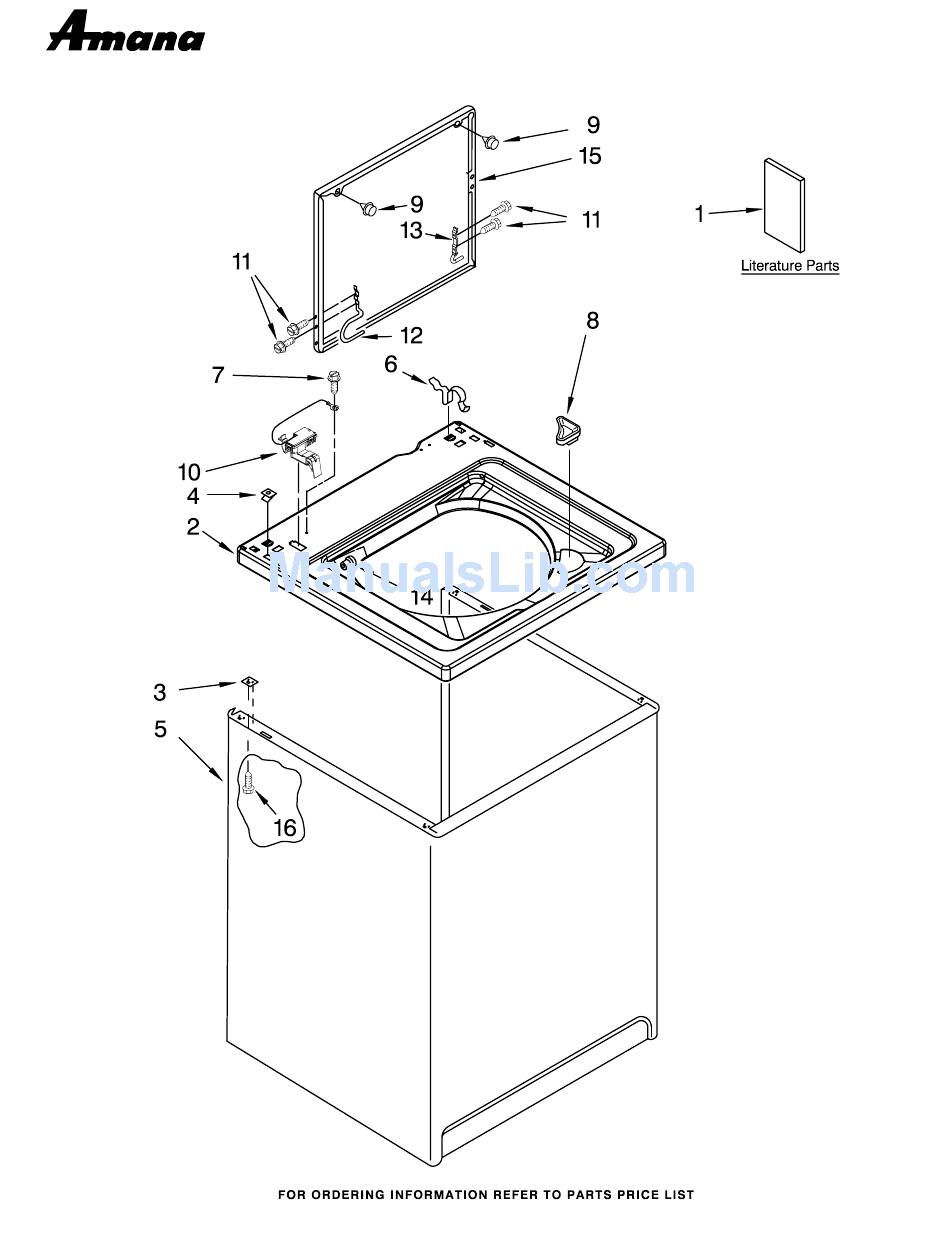

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Model: NTW4600VQ0 (White) 6−08 Litho in U.S.A. (drd)(bay) Part No. W10210991 Rev. A... - Page 2 TOP AND CABINET PARTS For Model: NTW4600VQ0 (White) Illus. Part DESCRIPTION Literature Parts Installation Instructions W10200331 English W10200662 Spanish Feature Sheet W10192181 English/French W10192182 Spanish Use & Care Guide W10192179 English/French W10192180 Spanish W10183468 Wiring Diagram W10192177 Energy Guide 8318064 Top 62750 Spacer, Cabinet To Top (4) 357213 Nut, Push−In (2)
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Model: NTW4600VQ0 (White) W10210991... - Page 4 CONTROLS AND REAR PANEL PARTS For Model: NTW4600VQ0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 388326 Screw, 8−18 x 1.25 8578842 Cord, Power 3347868 Cable Tie (Panel To Top) 3363366 Clamp, Hose (Includes Item 15) 9740848 Screw, 8−18 x 1/2 8317496 Clamp, Hose 3952821 Strain Relief, 8055003 Clip, Harness...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Model: NTW4600VQ0 (White) W10210991... - Page 6 AGITATOR, BASKET AND TUB PARTS For Model: NTW4600VQ0 (White) Illus. Part DESCRIPTION 8575076 Dispenser, Fabric Softener 3354733 Cap, Barrier 3 W10072840 Seal, Inner Cap 358237 Screw & Washer (5/16−24 x 1) 3949550 Washer 3348117 Agitator (Complete) 3363663 Cam, Driven 3366877 Dog, Agitator Clutch (4) 3363661 Bearing, Driven 3348752 Clothes Mover...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Model: NTW4600VQ0 (White) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 62611 Plate, Motor 388952 Brake & Drive Mount To Tube (Complete) Gearcase (Refer to Page 11 62691 Grommet, Motor (4) For Further 3364003 Coupling, Motor Breakdown) &... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Model: NTW4600VQ0 (White) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 8575214 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) 62597 Spring, Leveling Mechanism 62837 Pin, Knurled 62596 Foot, Rear (2) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Model: NTW4600VQ0 (White) W10210991... - Page 10 WIRING HARNESS PARTS For Model: NTW4600VQ0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 62889 Receptacle, 3390423 Block, Disconnect 3349557 Retainer, Harness Terminal (12−Way) 388498 Clip, Harness 3347730 Receptacle 3347812 Clip, Harness (3−Way) (6−Way) 3352501 Clip, Harness 353424 Plug, Terminal 3948617 Connector (T.P.A.) (Push−In) (3−Way)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Model: NTW4600VQ0 (White) Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 356427 Seal, Drive Tube 64027 Tube, Basket Drive (Includes Illus. 3, 4, 5 & 9) 64035 Ring, Retaining 64232 Shoe, Brake (2) 62703 "T"... -
Page 12: Gearcase Parts
GEARCASE PARTS For Model: NTW4600VQ0 (White) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin Pinion 389387 Shaft, Agitator (Complete) 90369... -
Page 13: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) For Model: NTW4600VQ0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION ACCESSORY PARTS PAINT, TOUCH−UP (1/2oz.) 63580 Fabric Dispenser 72017 White 350572 Oil, Gearcase 367031 Drain Protector (16 Oz.) 280129 Siphon Break Kit PAINT, PRESSURIZED SPRAY 280130 Drain Hose (12 oz.) Adapter Kit...
