Summary of Contents for Amana AFF2534FEW11
- Page 1 CABINET PARTS REFRIGERATOR For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) 1−10 Litho In U.S.A. (mat) (eeb) Part No. W10242316 Rev. A...
-

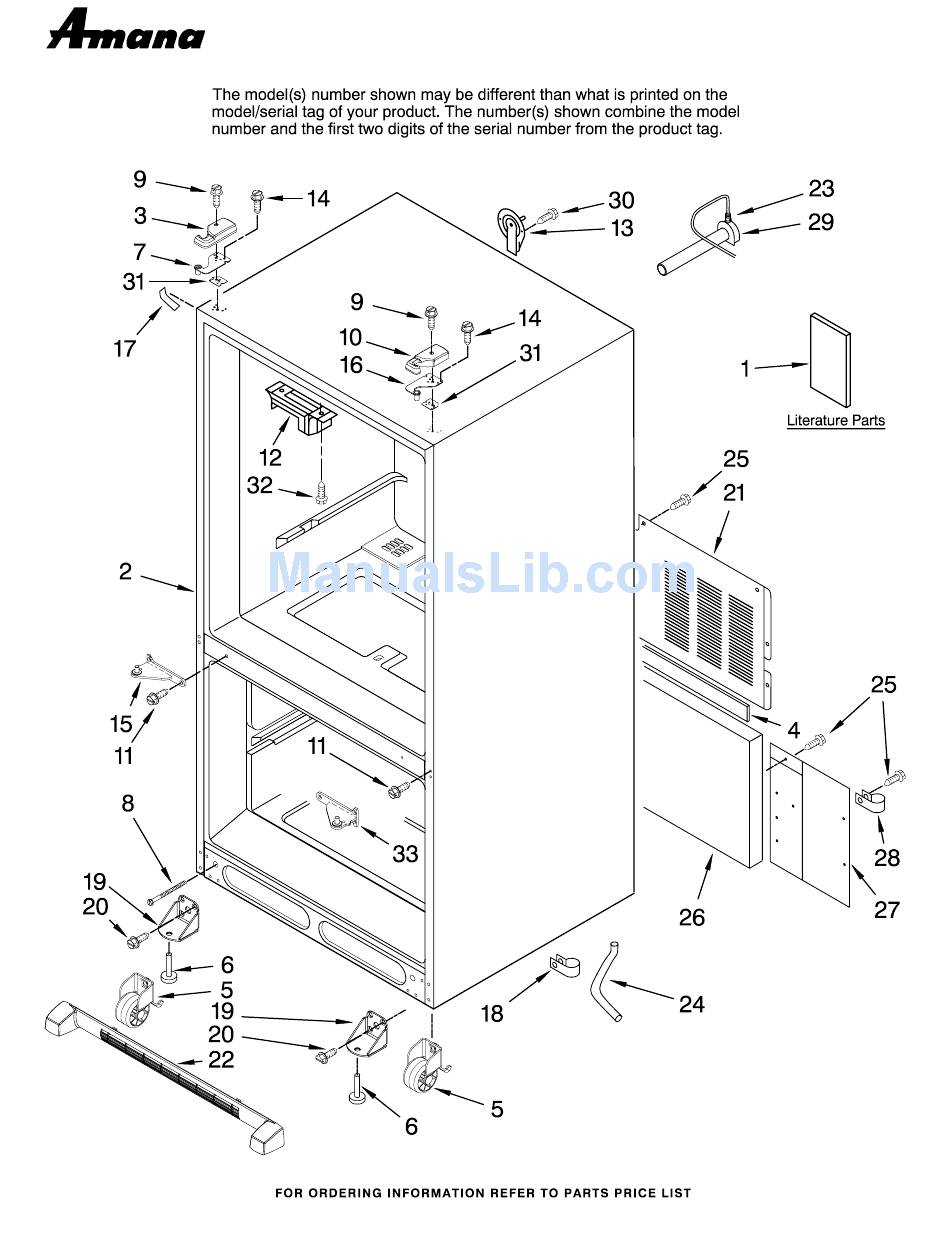

Page 2: Cabinet Parts
CABINET PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 67006564 Screw (4) Cover, Right Hinge 67006101 Cover, Unit W10137643 Use & Care Guide 12684202W White Grille, Toe W10133234 Energy Guide 12684202B Black 67006377 White... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) W10242316... - Page 4 FREEZER LINER PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 67005874 Guide, Fill Tube 67003905 Cover, Light 67003636 Motor, Evaporator Y12570701 Socket, Light 12002355 Thermistor 67003924 Cover, Thermistor A0282812 Bulb, Light 67001035 Housing, Light 67005873 Cover, Evaporator...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Door, Freezer 13092203WQ White 13092203BQ Black 13092213SQ Stainless Handle, Door W10119666 White W10119668 Black W10138763 Stainless Gasket, Door W10133249 White W10131754 Black 67002935 Screw, Handle Mount, Handle 12992902 (Black and White Models) -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Liner (Not A 67003901 Housing, Light 12002355 Thermistor Serviceable Part) A0282812 Bulb, Light (2) 67003940 Switch, Energy Y12570701 Socket, Light (2) 67004078 Module, Light Saver 67003900 Insert,... -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) W10242316... - Page 8 REFRIGERATOR DOOR PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION Door, Left 67007053 White 67007057 Black 13024038SQ Stainless Door, Right 67007019 White 67007058 Black 13024037SQ Stainless 67003637 Door, Dairy 67001279 Tray, Dairy Bucket, Door 67003770 Medium (3) 12699207 Gallon (2) Mullion, Door 67003263 White...
-
Page 9: Unit Parts
UNIT PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) W10242316... - Page 10 UNIT PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw 12002041 Evaporator Kit 2 W10162928 Blade, Fan (Incl. Evap., Heat Following Parts Not Illustrated 67005889 Basepan Shield, & Instr. and Optional Parts Not Included 67006425 Screw Sheet)
-
Page 11: Shelf Parts
SHELF PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) W10242316... - Page 12 SHELF PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 67004514 Rail, Center Crisper 67004636 Trim, Crisper 67006608 Screw 67004987 Basket, Freezer (Upper) 67006025 Basket, Freezer (Lower) 67004637 Shelf (4) 67006360 Screw 67005864 Slide, Humidity Control (2) 67004127 Divider, Basket (Upper) 67006644 Divider, Basket...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) W10242316... - Page 14 ICEMAKER PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 67003729 Tube, Plastic 67003932 Clamp 489276 Screw 67003753 Valve−Inlet 67004028 Arm−Shut Off 67004710 Cover, Front A3223101 Inert, Tube 9 W10122527 Mold & Heater Assembly (Also Order 542638) 628515 Cup Water fill...
-
Page 15: Optional Parts
OPTIONAL PARTS For Models: AFF2534FEW11, AFF2534FEB11, AFF2534FES11 (White) (Black) (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, BULK (1 qt.) TORX SCREW WRENCH PAINT, TOUCH−UP (1/2oz.) 1117510 Torx Key 72017 White 799344 White (Uncut) 72032 Black 799344 Black (Uncut) 4392901 Biscuit ACCESSORIES...
