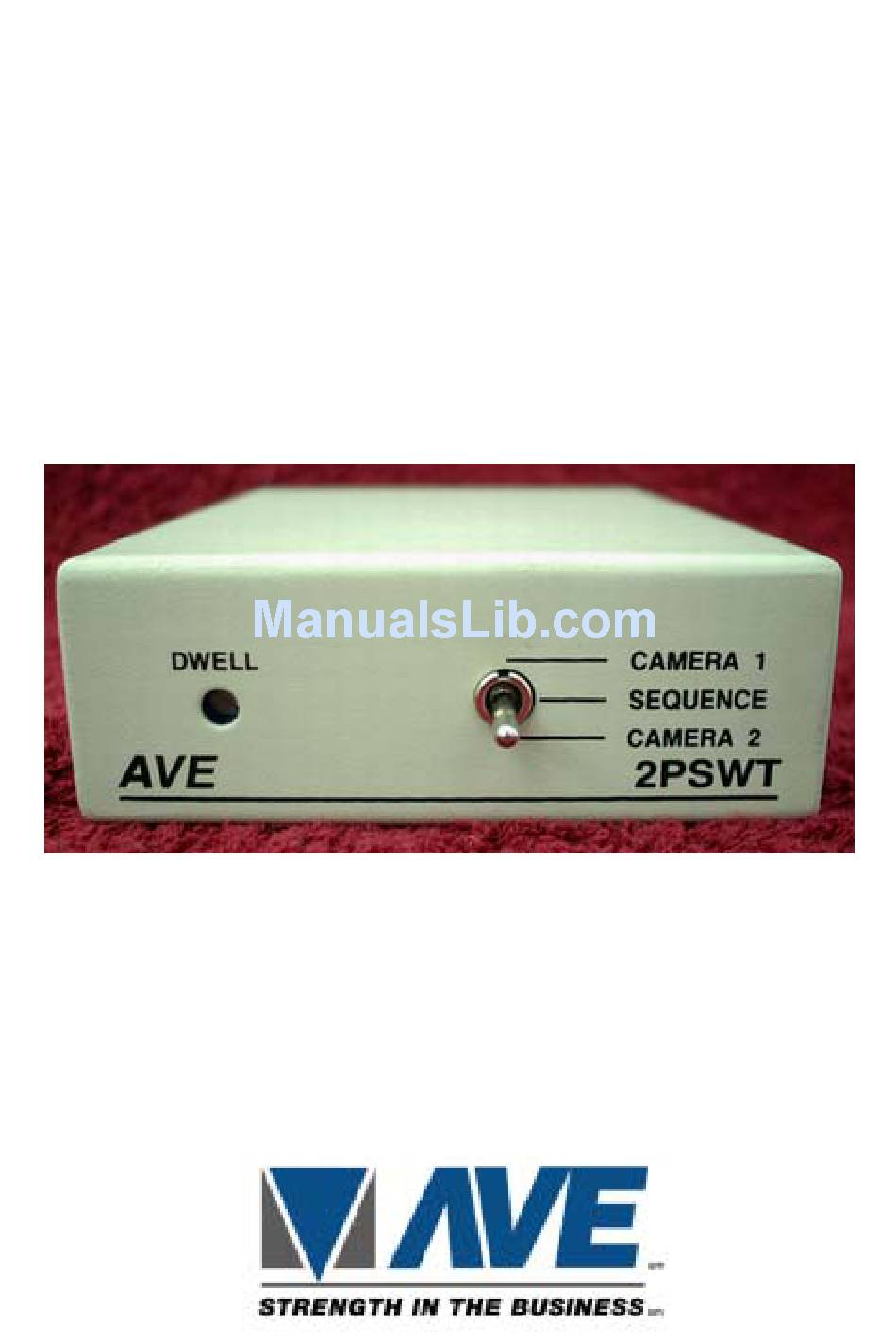

- Page 1 2PSWT 2-Position Sequencing, Homing Switcher Operation Manual...
- Page 2 WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE WARNING! This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a class A computing device pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a...
- Page 3 INTRODUCTION The 2PSWT is a 2 position sequencing, homing switcher. The front panel toggle switch allows for automatic sequencing, or homing of the 2 video inputs. Sequencing is controlled by a front panel recessed dwell pot. This pot is recessed to eliminate accidental adjustment.
- Page 4 2PSWT Front Panel 2PSWT Rear Panel Note: The 2PSWT front panel toggle switch merely switches +voltage for camera #1 and ground for camera #2. An external relay or transistor could be user connected to this switch internally to produce a low cost alarming 2 position switcher.
-
Page 5: Specifications
SPECIFICATIONS CIFICATIONS Video Inputs: ........1V P-P Terminated @ 75 ohm ..........toggle switch selectable Toggle positions:......Home 1, Sequence & Home 2 Video Output: ............1V P-P into 75 Ohm Dwell adjust: ..........Front panel recessed pot Dwell Time: ....From approximately .2 second to 1 minute Power: .................5-12VDC Power Supply........9-12VDC Wall Transformer Connectors:... -
Page 6: Limited Warranty
LIMITED WARRANTY (Terms and Conditions) For 2 Years from the date of shipment, Seller warrants to Buyer that the Prod- uct is free from defects in material or workmanship under normal use and service. Equipment manufactured by other than Seller but furnished by Seller carries the same warranty to Buyer as Seller receives from the other manufac- turer, notwithstanding any provision to the contrary. - Page 7 All of the foregoing constitute Buyer’s sole and exclusive remedy and Seller’s sole and exclusive liability for supplying nonconforming or defective Product. RETURNS. AVE products are fully inspected and carefully packed to ensure you are delivered a quality product in good condition. If you are not fully satisfied with our product, returns of standard stocking items with no restock- ing fee can be made within thirty (30) days of invoice to Buyer.
- Page 8 ASIA AVE (Thailand) Co., Ltd. 217/4 Crystal Garden Soi 4 (Nanatai), Sukhumvit Rd. Klongtoey, Klongtoey Bangkok, 10110 Thailand Tel: 662-656-8231 Fax: 662-656-9554 Email: ave@avethailand.com www.avethailand.com NORTH AMERICA AVE USA 2000 West Governors Circle, Suite E Houston, Texas 77092 Tel: 281-443-2300 Fax: 281- 443-8915 Email: aveus@ave-us.com...
