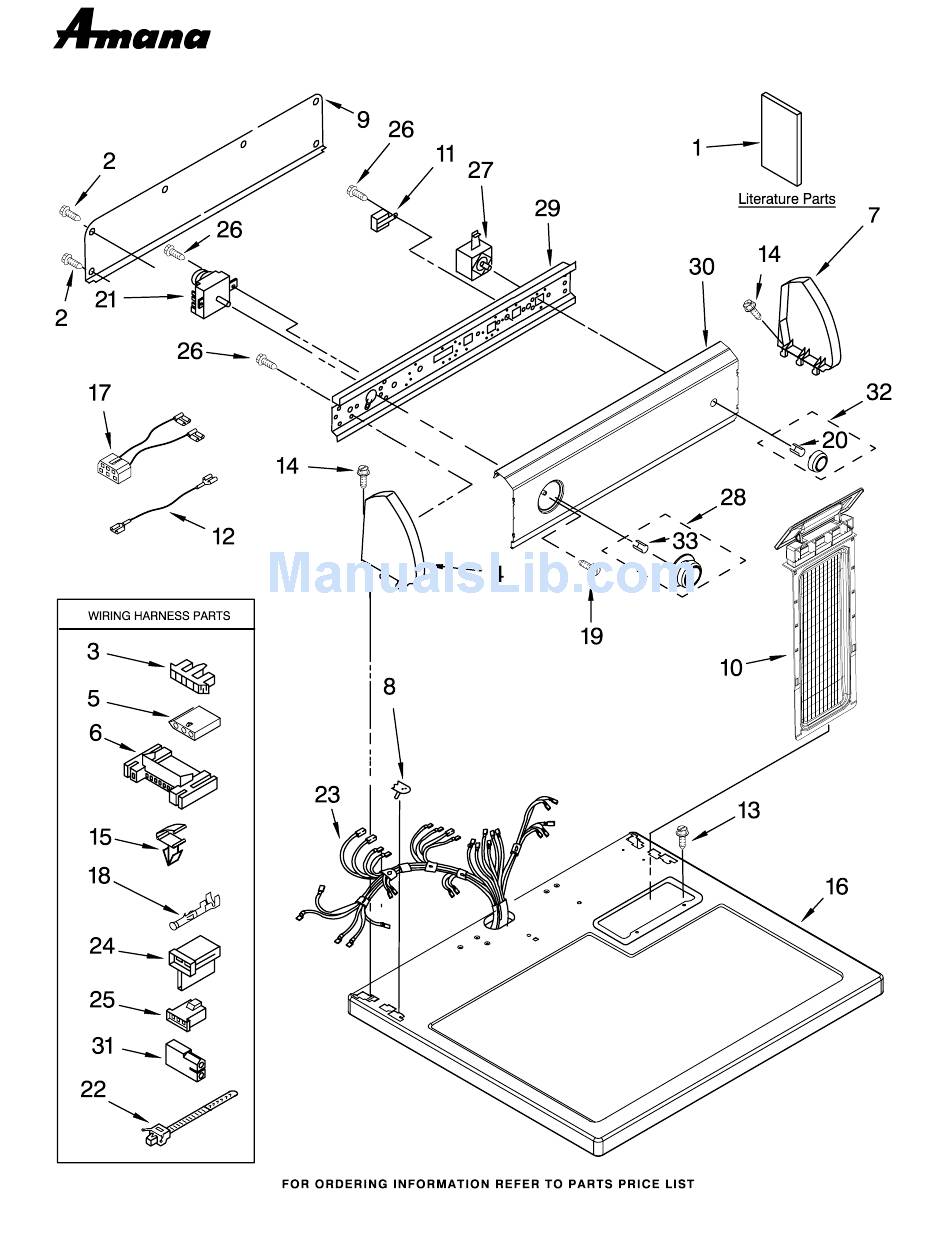

- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Model: NGD5100TQ0 (Designer White) Part No. W10184473 Rev. A 1−08 Litho in U.S.A. (LAN)
- Page 2 TOP AND CONSOLE PARTS For Model: NGD5100TQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 3936144 Connector 3391249 Tie, Cable Guide, Use & Care 3395683 Connector 8299876 Harness, Wiring W10150620 English (Motor) 3403499 Connector, W10150621 Spanish 8271365 Cap, End (R.H.) 2−Position Instructions,...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: NGD5100TQ0 (Designer White) W10184473... - Page 4 CABINET PARTS For Model: NGD5100TQ0 (Designer White) Illus. Part DESCRIPTION 697776 Screw, 10−32 x 5/8 343641 Screw, 10−16 x 1/2 693995 Screw, Hex Head 8541400 Bracket, Cabinet 3396795 Cover, Block 3394975 Plug, Front Panel 3396807 Panel, Rear 342055 Screw, 8−18 x 1/2 3980175 Clamp−Elbow 3406104 Door Switch Assembly...
-
Page 5: Burner Assembly
8318272 BURNER ASSEMBLY For Model: NGD5100TQ0 (Designer White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 W10184473... - Page 6 8318272 BURNER ASSEMBLY For Model: NGD5100TQ0 (Designer White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 8318272 Burner Assembly 60 Hz. (Type 1) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw &...
- Page 7 BULKHEAD PARTS For Model: NGD5100TQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3398161 Clip 690997 Ring, Tri 694283 Lint Chute 489463 Screw, 8−18 x 5/8 Assembly 3399506 Shaft, L.H. 8530285 Box, Heater 343641 Screw, 10−16 x 1/2 3399507 Shaft, R.H.
- Page 8 OPTIONAL PARTS (NOT INCLUDED) For Model: NGD5100TQ0 (Designer White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 8522199 Kit, Dryer Vent Testing 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 689790 Dry Rack PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray...
