Instructions for Using

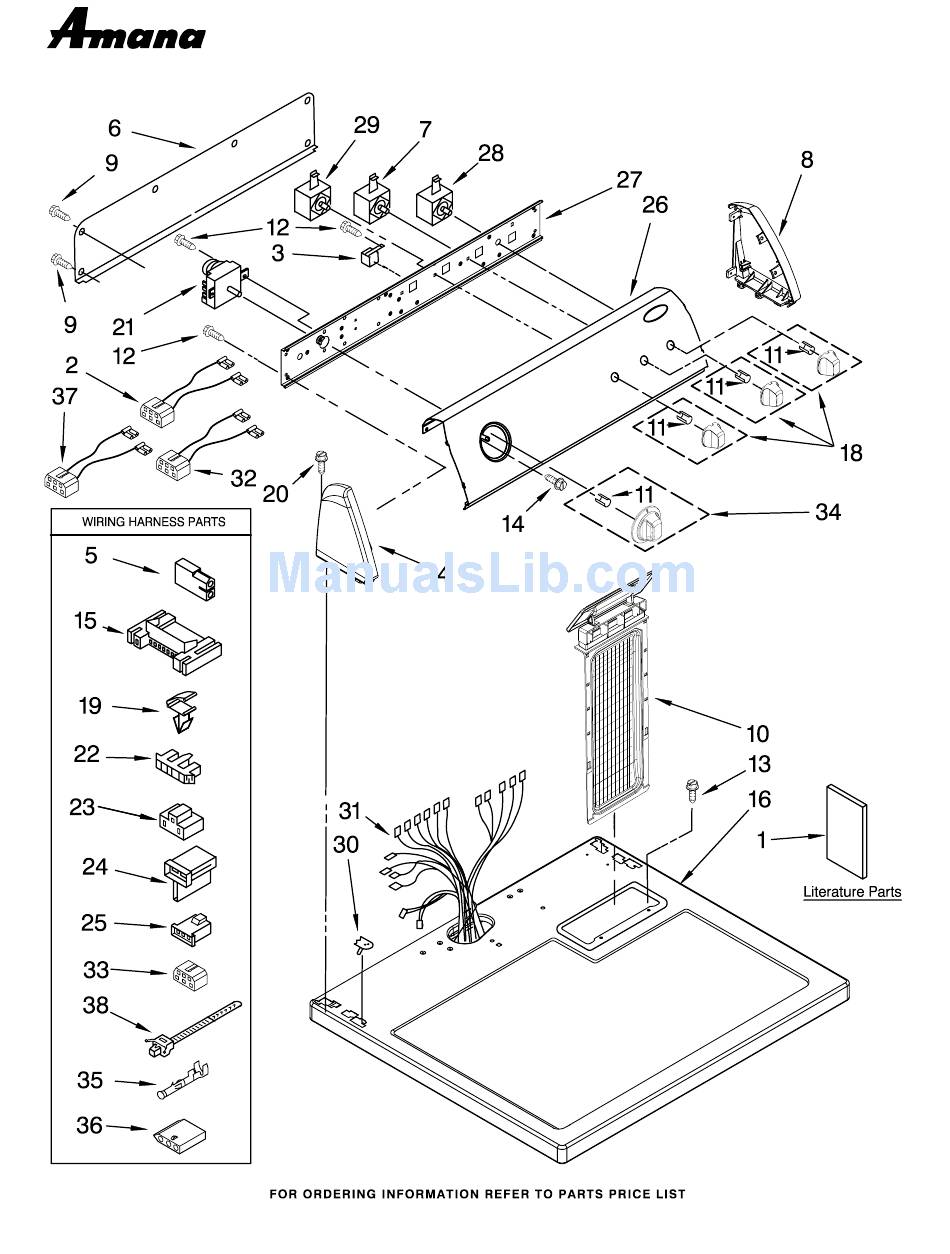

TOP AND CONSOLE PARTS
29" GAS DRYER
For Model: NGD4800VQ0
(White)
02−09 Litho in U.S.A.(MP) (eeb)
Part No. W10257084 Rev. A
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amana NGD4800VQ0
Summary of Contents for Amana NGD4800VQ0
- Page 1 TOP AND CONSOLE PARTS 29" GAS DRYER For Model: NGD4800VQ0 (White) 02−09 Litho in U.S.A.(MP) (eeb) Part No. W10257084 Rev. A...
- Page 2 TOP AND CONSOLE PARTS For Model: NGD4800VQ0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 693995 Screw, Hex 3403498 Connector, W10150630 Instructions, Washer Head 3−Position Installation 8558463 Screen, Lint (Gas Valve) W10150620 Use & Care Guide 8536939 Clip, Spring 26 W10086735 Panel Control 8576811 Wiring Diagram...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: NGD4800VQ0 (White) W10257084... - Page 4 CABINET PARTS For Model: NGD4800VQ0 (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 697776 Screw, 10−32 x 5/8 8530603 Cabinet 348780 Base, Motor (External Ground) 3403431 Strike, Panel (Includes 8066065 Belt, Drive 343641 Screw, 10−16 x 1/2 Illus. 4) 3402341 Door, Rear 693995 Screw, Hex Head 98234 Clip, Ground (2)
- Page 5 BULKHEAD PARTS For Model: NGD4800VQ0 (White) W10257084...
- Page 6 BULKHEAD PARTS For Model: NGD4800VQ0 (White) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Fuse, Thermal 8066086 Drum Hole Plug 3387134 Thermostat, Internal−Bias...
-
Page 7: Burner Assembly
8318272 BURNER ASSEMBLY For Model: NGD4800VQ0 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 W10257084... - Page 8 8318272 BURNER ASSEMBLY For Model: NGD4800VQ0 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 8318272 Burner Assembly 60 Hz. (Type 1) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw &...
- Page 9 OPTIONAL PARTS (NOT INCLUDED) For Model: NGD4800VQ0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 346764 Kit, Hold−Down (Gas Dryer Mobile Home Installation) 8522199 Kit, Dryer Vent Testing 3406839 Dry Rack PAINT, TOUCH−UP (1/2oz.) 72017 White 4392899 Biscuit PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White...
