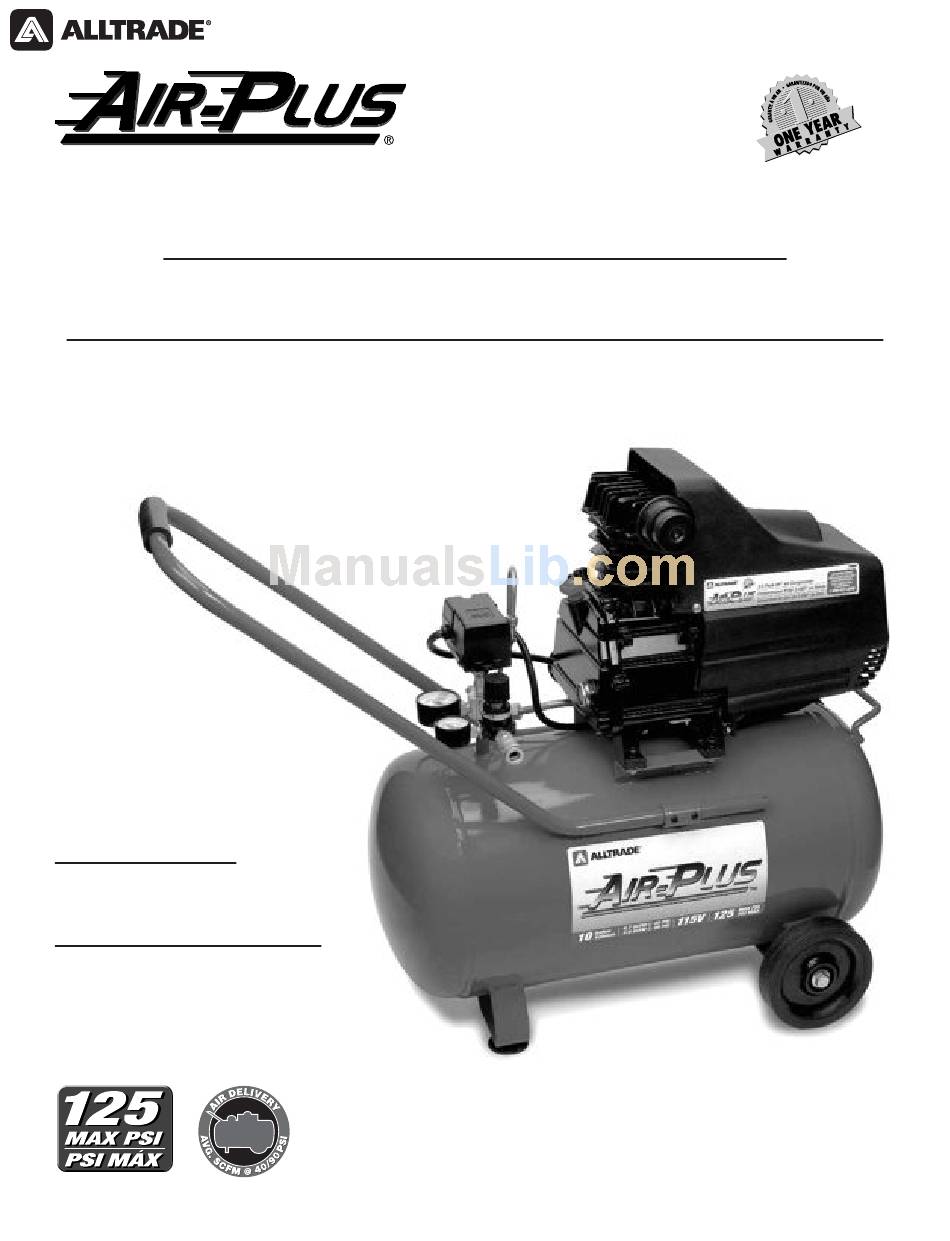

AllTrade Air-Plus 540025 Instruction Manual

10 gallon 3.5 peak oil lubricated air compressor

Advertisement

Do Not Return Your Compressor to the Store! Call 1-800-423-3598 For Help!
Ne Pas Retourner le Compresseur au Magasin ! Pour Toute Assistance, Appeler le 1-800-423-3598 !
MANUAL DE INSTRUCCIONES
¡No Deveulva su Compresor de Aire a la Tienda! ¡Llame al 1-800-423-3598 para Solicitar Ayuda!
10
GALLON
GALONES
3.5 PEAK HP
/ 3.5HP
EN POINTE / 3.5HP
*
*
OIL LUBRICATED AIR
COMPRESSOR
COMPRESSEUR D'AIR
LUBRIFIÉ PAR HUILE
COMPRESOR DE AIRE
CON LUBRICACIÓN
DE ACEITE
4.7/3.0
4.7/3.0
* Based Upon Peak Electrical Current Consumption • * Puissance Déterminée en Fonction de la Consommation Électrique • * Calculado en Base a la Corriente Pico Consumida

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS
DE PICO
*
Model / Modéle / Modelo
#540025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air-Plus 540025 and is the answer not in the manual?

Questions and answers

Summary of Contents for AllTrade Air-Plus 540025

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL Do Not Return Your Compressor to the Store! Call 1-800-423-3598 For Help! MANUEL D'INSTRUCTIONS Ne Pas Retourner le Compresseur au Magasin ! Pour Toute Assistance, Appeler le 1-800-423-3598 ! MANUAL DE INSTRUCCIONES ¡No Deveulva su Compresor de Aire a la Tienda! ¡Llame al 1-800-423-3598 para Solicitar Ayuda! GALLON GALONES 3.5 PEAK HP...
  • Page 2: Safety Alert

    Instruction Manual It is the owner and/or operator's responsibility to study all WARNINGS, operating, and maintenance instructions contained on the prod- uct label and instruction manual prior to operation of this unit. The owner/operator shall retain product instructions for future reference. The owner and/or operator is responsible for maintenance, maintaining all decals or warning labels and while in use, maintaining the unit in good working order.
  • Page 3: Unpacking And Inspection

    THE FOLLOWING SIGNAL WORDS ARE USED TO EMPHASIZE SAFETY WARNINGS THAT MUST BE FOLLOWED WHEN USING THIS AIR COMPRESSOR: DANGER Indicates an imminently hazardous situation that, if not avoided, WILL result in death or serious injury. WARNING Indicates a potentially hazardous situation that, if not avoided, COULD result in death or serious injury. CAUTION Indicates a potentially hazardous situation that, if not avoided, MAY result in minor or moderate injury.
  • Page 4 Protect your eyes. The operation of any air compressor can result in foreign objects being thrown into the eyes, which can result in severe eye damage. Always wear eye protection that meets ANSI Z28.1 specifications during air compressor operation. Eyeglasses are not always safety glasses.
  • Page 5 WARNING DRAIN LIQUID FROM AIR TANK DAILY - Use the drain valve located on the bottom of the air tank to drain. Failure to properly drain liq- uid from the tank will cause rust from moisture buildup, which weakens the tank and could lead to a violent tank explosion. Periodically inspect the tanks for unsafe conditions such as corrosion, cracked welds, and leaks.
  • Page 6: Specifications

    WARNING RISK OF FLYING OBJECTS - Do not direct compressed air stream at people or pets. The powerful compressed air stream can damage exposed skin and easily propel loose dirt and other small objects at high-speed, resulting in serious injury. Always wear eye protection that meets ANSI Z28.1 specifications.
  • Page 7: Grounding Instructions

    CAUTION Extension Cords - Alltrade does not recommend the use on an extension cord with this product as this may result in the loss of power and overheating of the motor. An additional air hose should be used instead of an extension cord.
  • Page 8 3. AUTOMATIC ON/OFF PRESSURE SWITCH: This compressor is equipped with an automatic on/off pressure switch. The compressor will only run when the switch is in the “I” (ON) position. Once the tank has reached the desired preset pressure (“cut-out” pres- sure), the pump motor will automatically shut off.
  • Page 9 IT MAY BE NECESSARY TO BRACE OR SUPPORT ONE END OF THE AIR COMPRESSOR WHEN ATTACHING THE WHEELS AND THE RUBBER FEET, BECAUSE THE AIR COMPRESSOR WILL HAVE A TENDENCY TO TIP. Installing Wheels: The wheels must be installed prior to operating the compressor. 1.
  • Page 10: Operation

    DO NOT OPERATE THE COMPRESSOR WITHOUT LUBRICANT, OR WITH LOW LUBRICATION LEVEL. ALLTRADE IS NOT RESPONSIBLE FOR DAMAGE CAUSED TO THE COMPRESSOR DUE TO OPERATION WITHOUT PROPER LUBRICATION. STEP 5 - INSPECTION CHECK Assembly Check: In order to complete the assembly of your new air compressor, a careful inspection should be made to ensure that all of the parts are properly aligned and securely fastened.
  • Page 11: Maintenance

    TOO MUCH AIR PRESSURE CAUSES A HAZARDOUS RISK OF BURSTING. CHECK THE MANUFACTURER'S MAXIMUM PRESSURE RATING FOR AIR TOOLS AND ACCESSORIES. THE REGULATOR OUTLET PRESSURE MUST NEVER EXCEED THE MAXIMUM PRES- 7. Before connecting the compressor to the grounded outlet, check oil level, check for broken components and accessories, and check for damage to the hose.
  • Page 12 Check for oil leaks. Check for unusual noise and/or vibrations Check that all fasteners are secure. Check for air leaks+. Wipe compressor clean. Weekly: Inspect and clean air filter. Clean breather holes on oil fill plug. Monthly: Check for air leaks. Check safety relief valve.
  • Page 13 7. Clean filter element with warm soapy water. Rinse the filter and air dry before reinstalling. Replace filter element if it cannot be cleaned sufficiently. 8. Reinsert filter element into filter body and reinstall filter faceplate. 9. Screw the filter body into pump head by turning clockwise until the filter is hand tight. DO NOT OVERTIGHTEN. MOISTURE IN COMPRESSED AIR Moisture is a normal by-product of compressing air.
  • Page 14: Troubleshooting Guide

    Problem Encountered Possible Cause The compressor does not Power cord not plugged in. start or restart: Motor/Pressure switch in "OFF" position Motor thermal overload switch has tripped. Fuse blown or circuit breaker has tripped. Wrong gauge wire or length of extension cord.
  • Page 15 Problem Encountered Possible Cause When in the Start/Stop Motor/Pressure switch does not shut off option, motor runs continu- motor when air compressor reaches "cut-out" ously: pressure and safety relief valve activates. Air compressor is incorrectly sized. Overheating: Poor ventilation. Dirty cooling fins. Defective pilot valve, the check valve is stuck Air continues to leak at open.
  • Page 16 Problem Encountered Possible Cause Insufficient pressure at air Pressure regulator knob is not turned to high tool or air accessory: enough pressure. Defective motor/pressure regulator switch. Restricted air intake filter. Air leaks. Hose or hose connections are too small or long.
  • Page 18 PARTS LIST / LISTE DE PIÈCES / LISTA DE PIEZAS No. Part #. / No. de Réf No. de Parte 60118100 Head Bolt M8 x 1.25 x 100 SHCS 60018 Lock Washer 8 50051238 Exhaust Elbow 5101BA20 Cylinder Head 504012H Air Filter 5102BA20 Cylinder Head Gasket...
  • Page 19 No. Parts No. / No. de Réf No. de Parte 30011414 Manifold 203314B Nipple 30051414N2 Pressure Regulator 30031512LN Outlet Pressure Gauge 30032012LN Tank Pressure Gauge 301014N4 Safety Relief Valve 302106295 Unloader Pipe 20161238N Check Valve 501010630 Exhaust Assembly 500210320 Exhaust Pipe 500310 Cooling Fin 50041038...
