Binatone Terrain 550 User Manual

Private mobile radio with twin charger
Hide thumbs Also See for Terrain 550:

Advertisement

Table of Contents

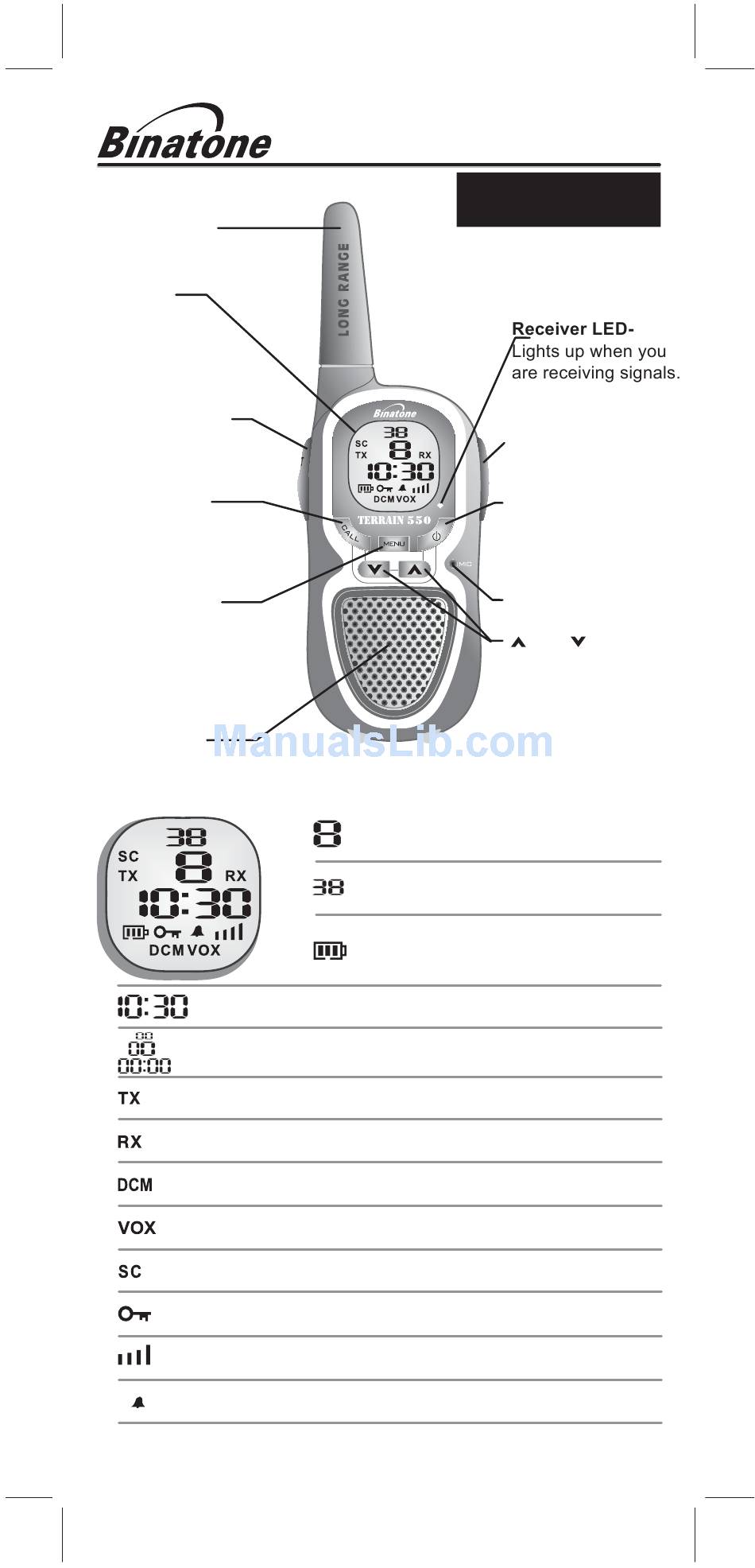

Antenna

LCD Screen

- Displays the
current channel
selection and other
radio symbols.
PTT (PUSH to
TALK) button - Press
and hold to transmit.
CALL button
- Press to send
ringing tone to other
PMR units.
MENU Button
-Press to change
channels and
sub-channels, and
to switch between
modes.
Speaker
1. LCD Screen
Displays the time.
Displayed when the Stop watch function is activated.
Displayed when transmitting a signal.
Displayed when receiving a signal.
Displayed when the Dual Watch function is turned ON.
Displayed when the VOX feature is enabled.
Displays when the PMR is scanning all channels.
Displayed when the Key Lock feature is activated.
Displays the current Speaker volume level.
Displays when the call signal is ON.
Terrain 550
Private mobile radio with twin charger
Channel Number. Changes from 1 to 8
as selected by the user.
CTCSS Code. Changes from 1 to 38
as selected by the user.
Displays the Battery charge level. When
the bars are reduced, the battery needs
recharging.
USER GUIDE
Ear/Mic/Charge
Jack
PWR (POWER)
button - Press and
hold to turn the unit
ON or OFF.
MIC (Microphone)
(UP)/
(DOWN)
buttons - Press to
change channels,
volume, and to select
settings during
programming.

Advertisement

Table of Contents
loading

Related Manuals for Binatone Terrain 550

Summary of Contents for Binatone Terrain 550

  • Page 1: Product View

    Terrain 550 Private mobile radio with twin charger USER GUIDE Antenna LCD Screen - Displays the current channel selection and other radio symbols. PTT (PUSH to TALK) button - Press Ear/Mic/Charge and hold to transmit. Jack CALL button PWR (POWER) - Press to send button - Press and ringing tone to other...

  • Page 2: Installation

    2. Installation Belt Clip latch 2.1 Removing the Belt Clip a. Pull the Belt Clip latch forward (away from the PMR.) While pulling the Belt Clip latch, push up the Belt Clip as shown in Figure 1. 2.2 Installing the Belt Clip a.

  • Page 3: Transmitting Range

    . When the battery level rech it minimum level in PMR on mode, unit will emit two beep tonesand automatically turn off the power and proceeds to watch mode. 3. Operation 3.1 Transmitting range The talk range depends on the environmental and terrain. It will be greatest (up to about 8 km) in wide open spaces, without obstructions such as hills or buildings.
  • Page 4 3.2 Turning the Unit ON/OFF To Turn ON; POWER Press and hold the button until the LCD Screen turns ON and displays the current channel. To switch OFF; Press and hold the POWER button until the LCD screen turns blank. You can hear a musical tone each time to confirm.
  • Page 5 DOWN button to select the desired Call-Ring tone. A respective Call-Ring tone sound will be played when changing from one tone to another. Press the button to confirm your setting. Binatone Help Line - 0845 345 9677...
  • Page 6 Press the MENU button 8 times, the channel number flashes on the LCD Screen. "OF" ress the DOWN button until is displayed on the LCD Screen. Press the button to exit. Binatone Help Line - 0845 345 9677...

  • Page 7: Stop Watch Function

    PTT button. Note: Depending on the model version, the charging and headset accessories are optional. They may or may not be included with the product. For more details, call the Binatone Help Line at 0845 345 9677.

  • Page 8: Specifications

    8. Cleaning and Care To clean your PMR, use a soft cloth dampened with water. Do not use cleaners or solvent, which may cause damage that may not be covered by guarantee. Binatone Help Line - 0845 345 9677...

  • Page 9: Guarantee And Service

    9. Guarantee and service The Binatone Terrain 550 is fully guaranteed for 12 months from the date of purchase shown on your sales receipt. The guarantee does not cover damage by misuse or negligence, or by excessive voltage. Please keep your sales (till) receipt - this is your guarantee. You should also keep the original packaging materials.

  • Page 10: Troubleshooting Guide

    EN 60065: 2002 Binatone Telecom plc operates a policy of continuous product improvement, and so reserves the right to make changes to the product and functions without prior notice. UK (BTP) Ver 3 Jan.08...
