3Com Router 3000 ADSL2+ Family
Installation Guide

1.2 Hardware Features of the 3Com Router 3040

1.2.1 Appearance

(1) Ethernet LED (LAN4)
(3) Ethernet LED (LAN2)
(5) ADSL2+ link LED (DSL LNK)
(7) System LED (SYS)

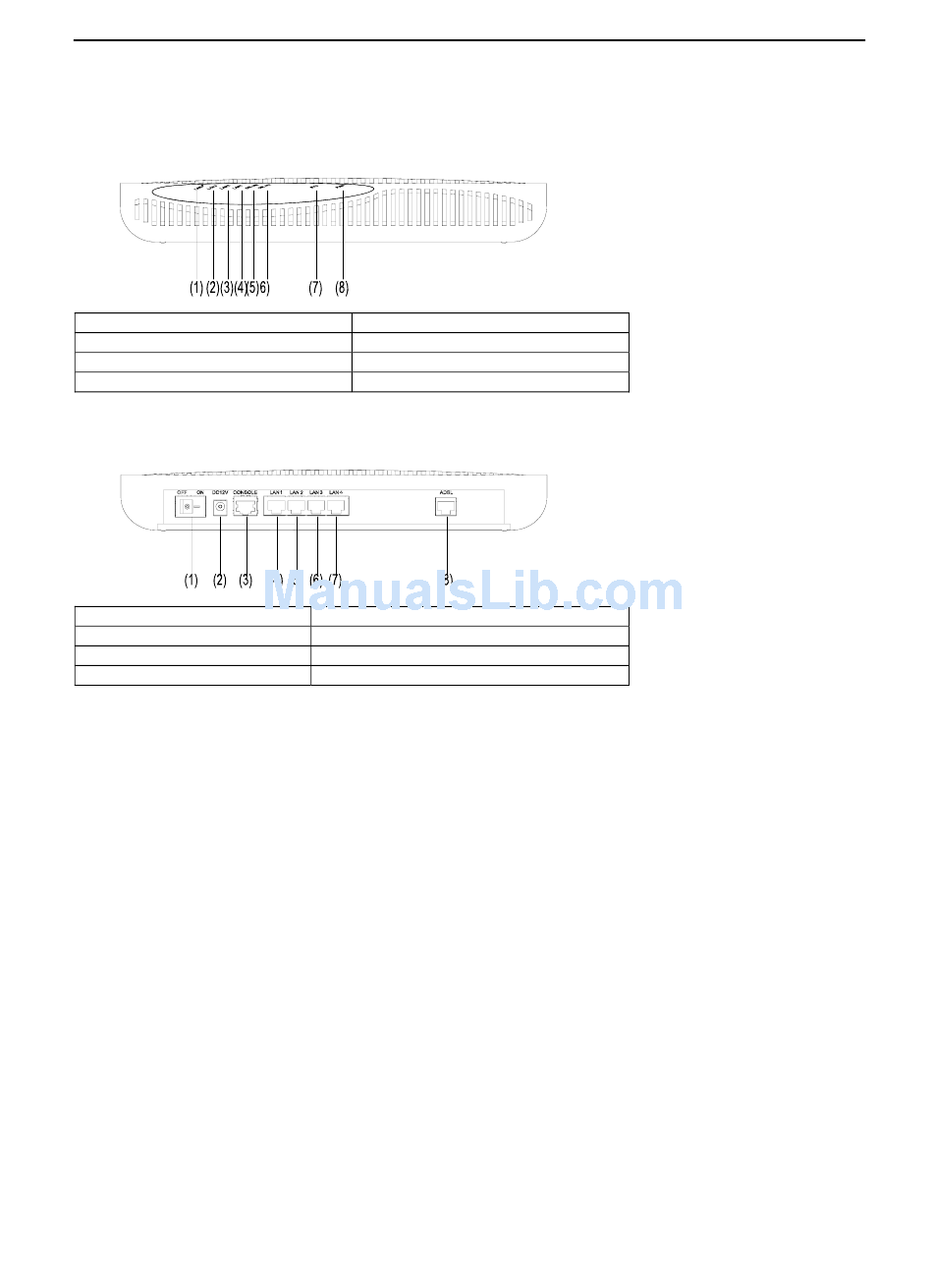

Figure 1-1 Front view of the Router 3040
(1) Power switch
(3) Console port (CONSOLE)
(5) Ethernet port 2(LAN2)
(7) Ethernet port 4 (LAN4)
Figure 1-2 Rear view of the Router 3040
(2) Ethernet LED (LAN3)
(4) Ethernet LED (LAN1)
(6) ADSL2+ activity LED (DSL ACT)
(8) Power LED (PWR)
(2) Power socket
(4) Ethernet port 1 (LAN1)
(6) Ethernet port 3 (LAN3)
(8) ADSL2+ over POTS interface (ADSL)
1-2
1. Product Overview
